Sunroof / Moonroof Windguard: Service and Repair

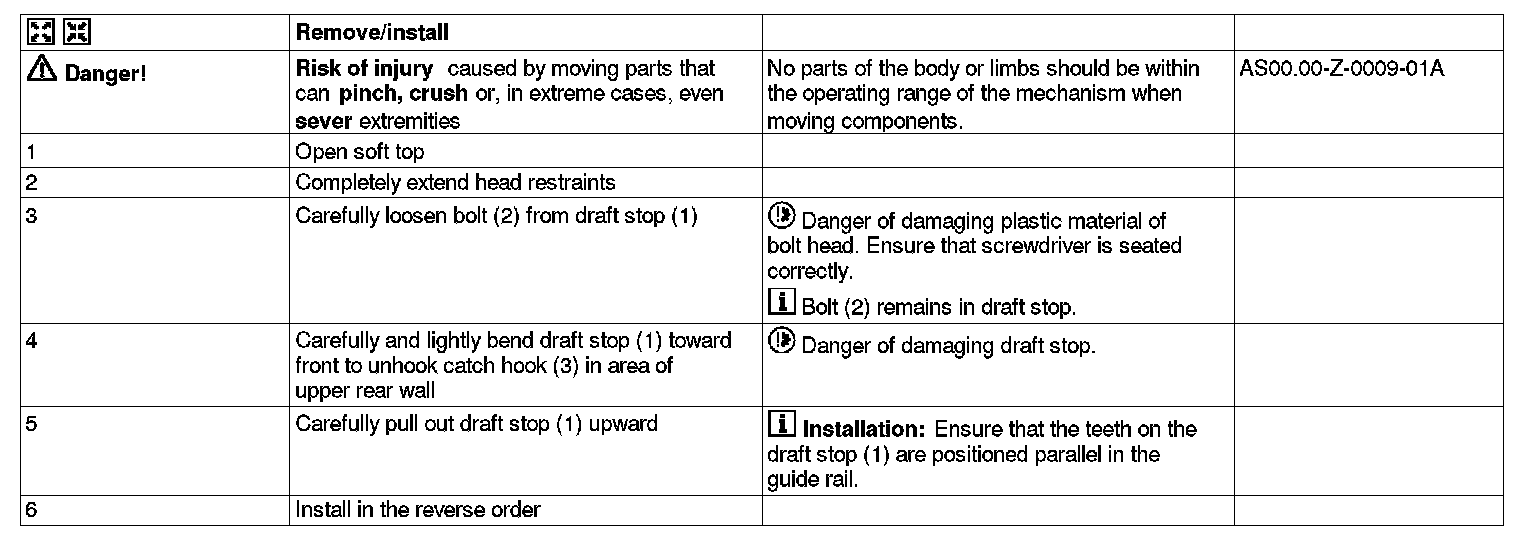

AR77.25-P-2000EA Remove, Install Draft Stop


Fondsitzanlage

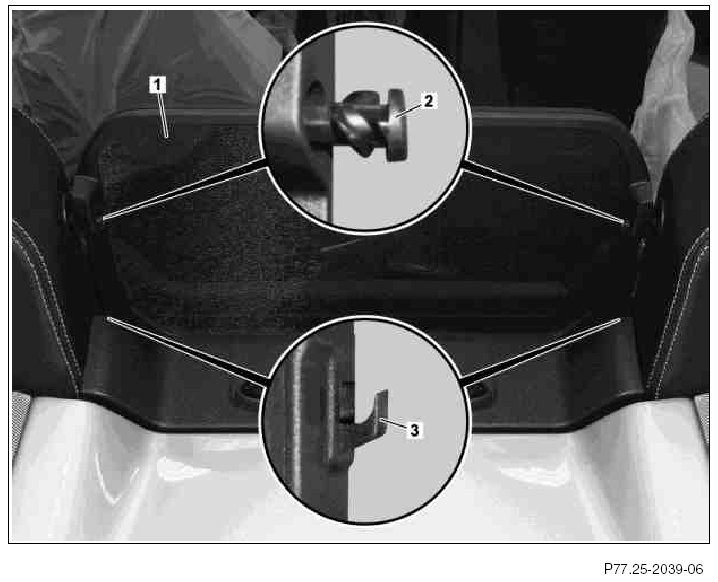

1 Draft stop
2 Screw
3 Catch hook
