FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
E 350 Cabriolet (207.459) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Specifications
>>
BA77.37-P-1000-01C Soft Top Hydraulic System
BA77.37-P-1000-01C Soft Top Hydraulic System
BA77.37-P-1000-01C Soft Top Hydraulic System

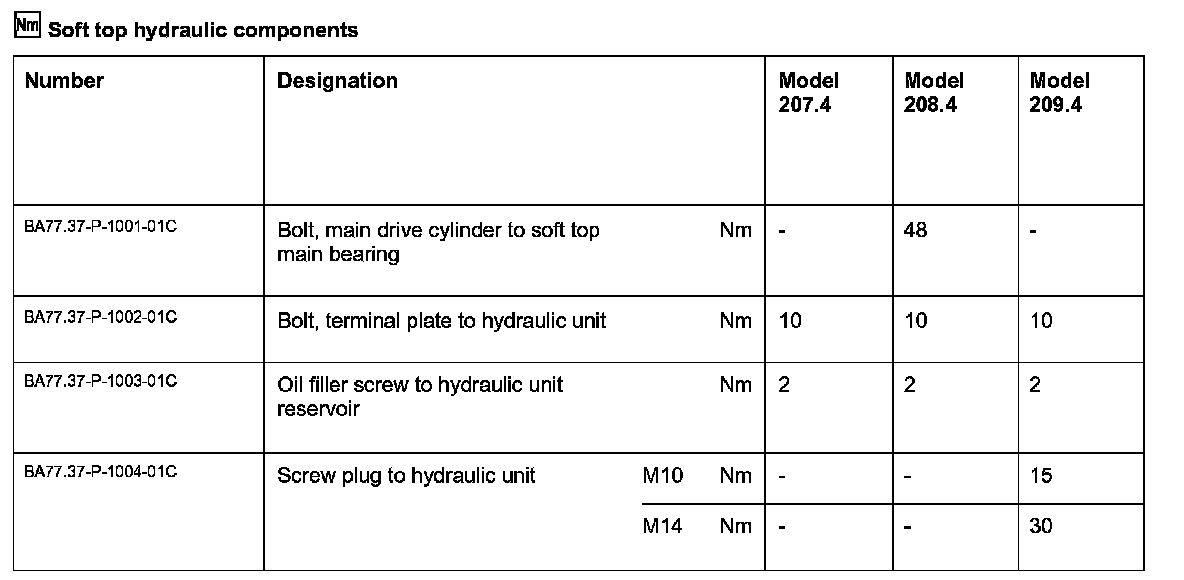

Soft Top Hydraulic Components:
