AR68.50-P-3000EC Remove/Install Trunk Retractable Partition



AR68.50-P-3000EC Remove/Install Trunk Retractable Partition

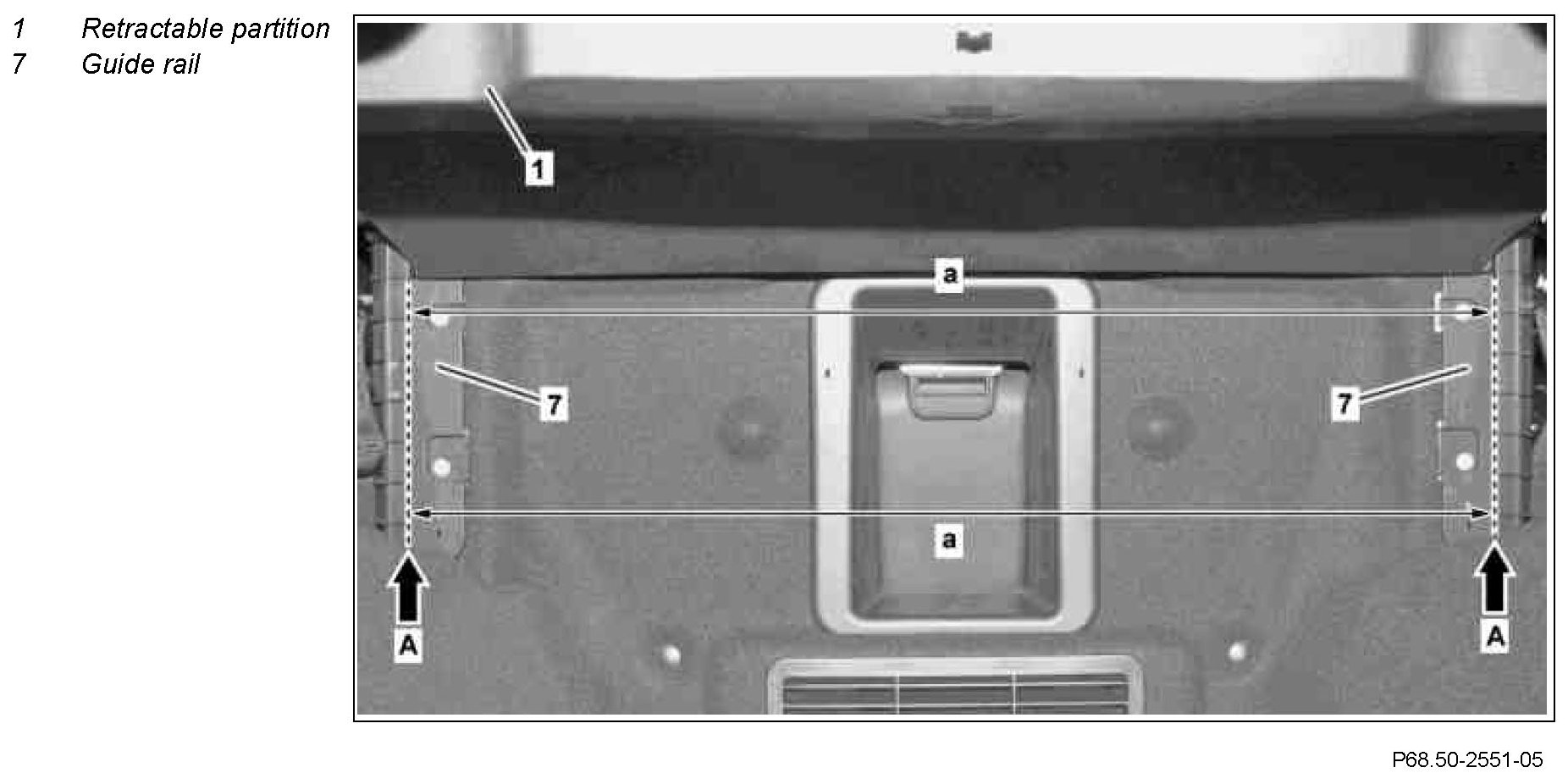

Component Identification:





Component Identification:

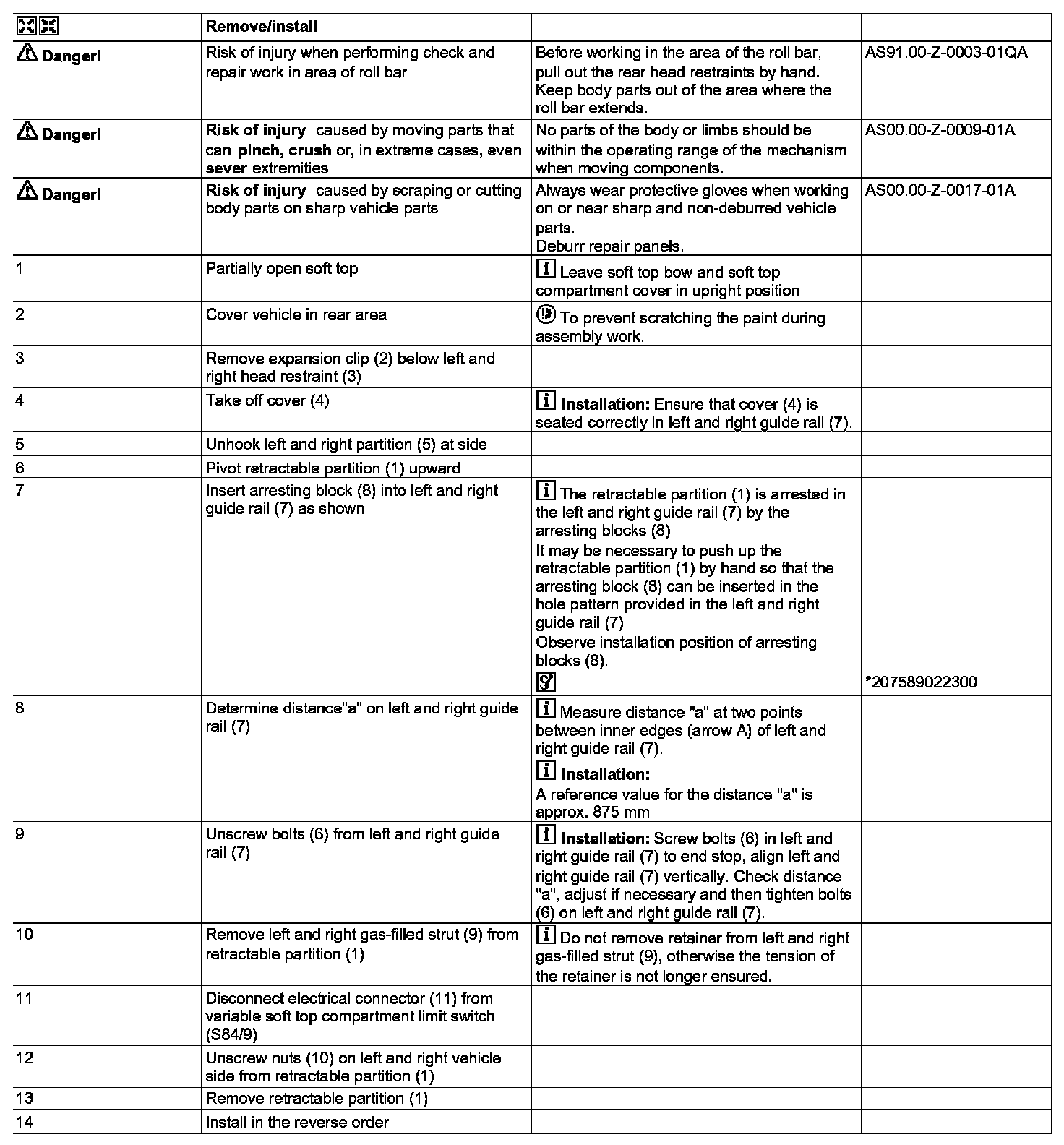

Steps 1 - 14:

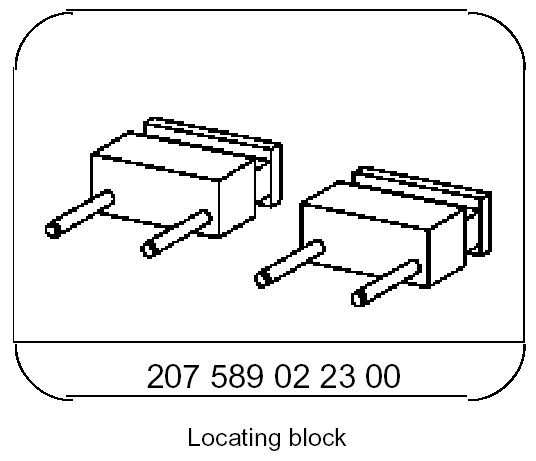

Special Tools:
