Removal and Replacement

AR77.50-P-4050EC Remove/Install Seal on Crossmember Above Windshield
MODEL 207.4

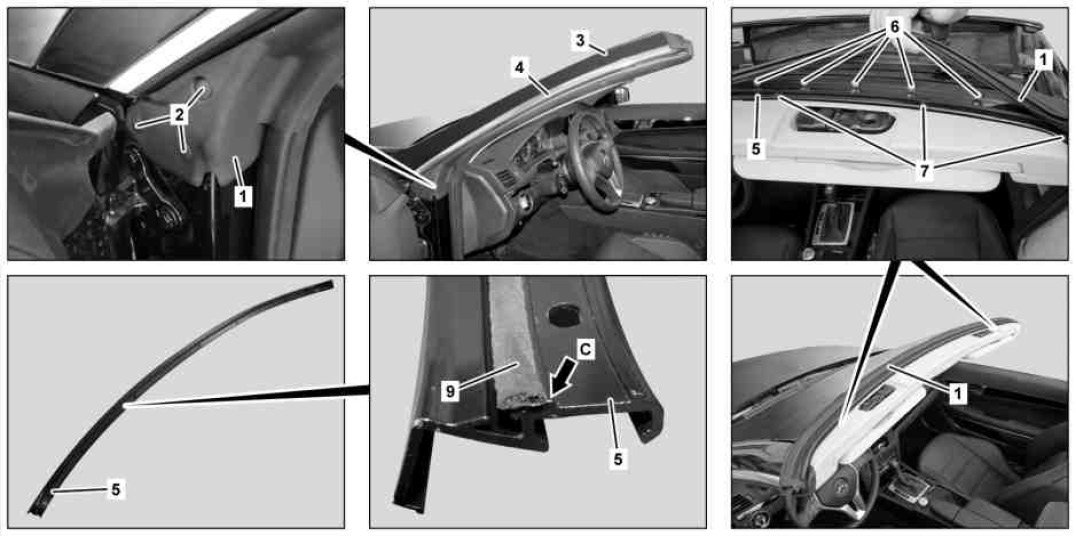

1 Gasket
2 Push buttons
3 A-pillar
4 A-pillar retaining rail
5 Retailing rail crossmember
6 Bolts
7 Bolts
9 Sealing profile

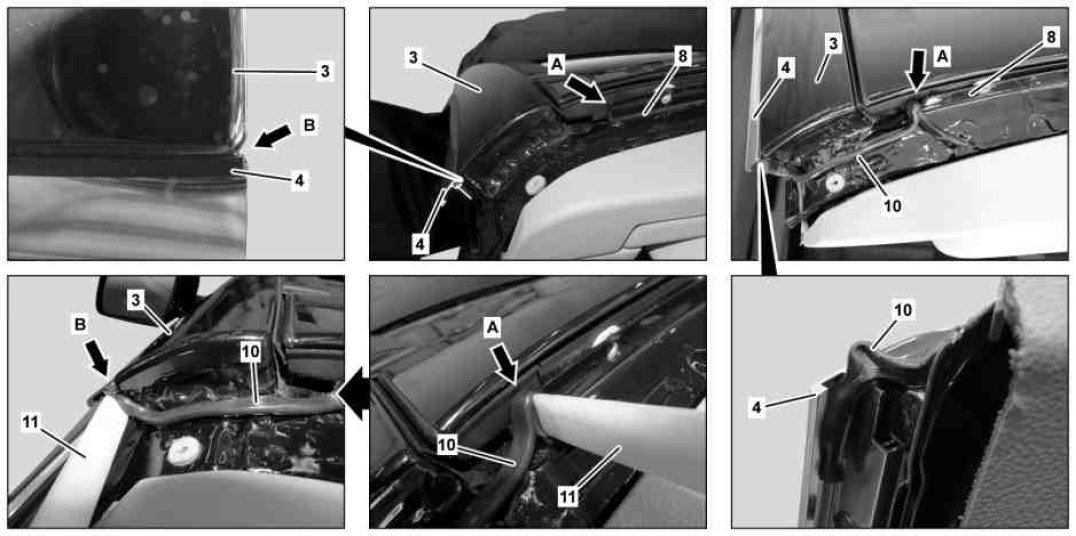

3 A-pillar
4 A-pillar retaining rail
8 Windshield crossmember
10 Sealing profile
11 Long wedge

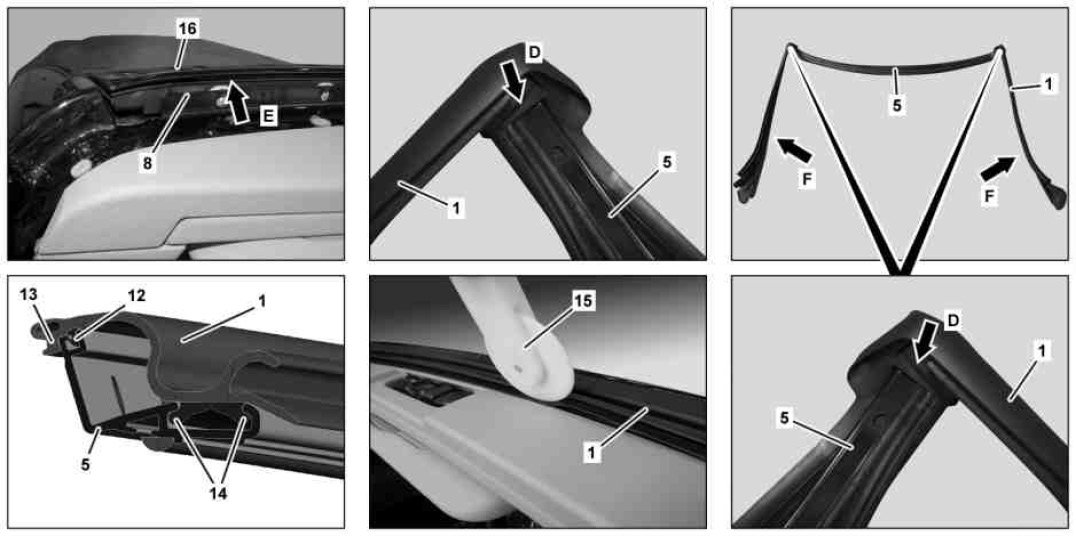

1 Gasket
5 Retailing rail crossmember
8 Windshield crossmember
12 Lip
13 Lip
14 Sealing lips
15 Roller
16 Cover














115 589 03 59 00
Long wedge





171 589 06 63 00
Roller
