Roll Bar: Service and Repair

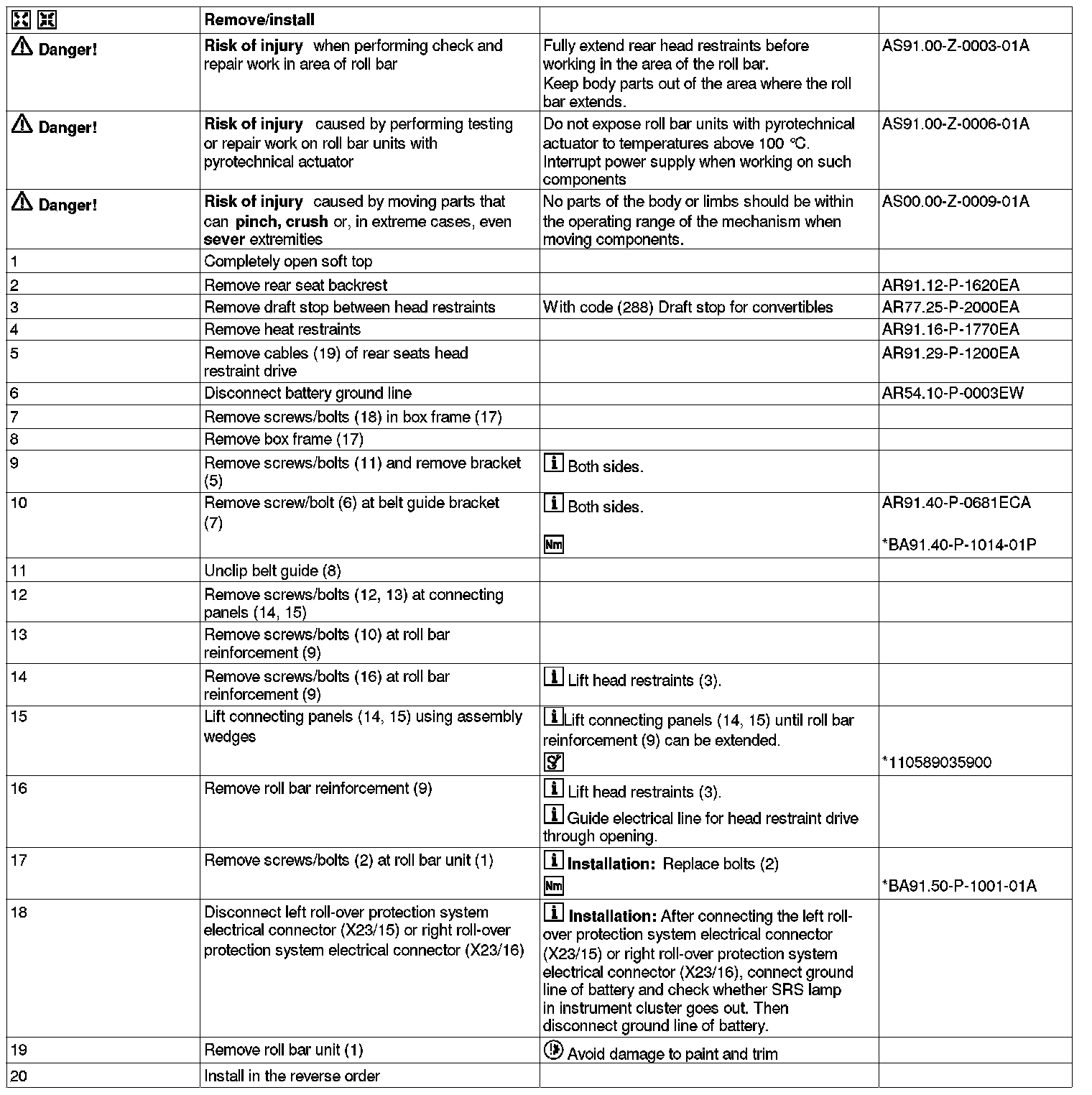

AR91.50-P-2355EC Remove/install Roll Bar

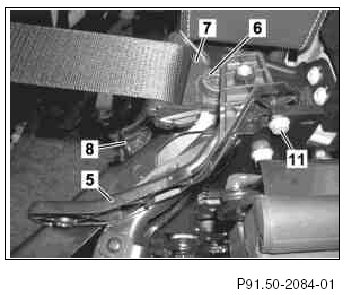

Shown on left side of vehicle







5 Bracket
6 Screw

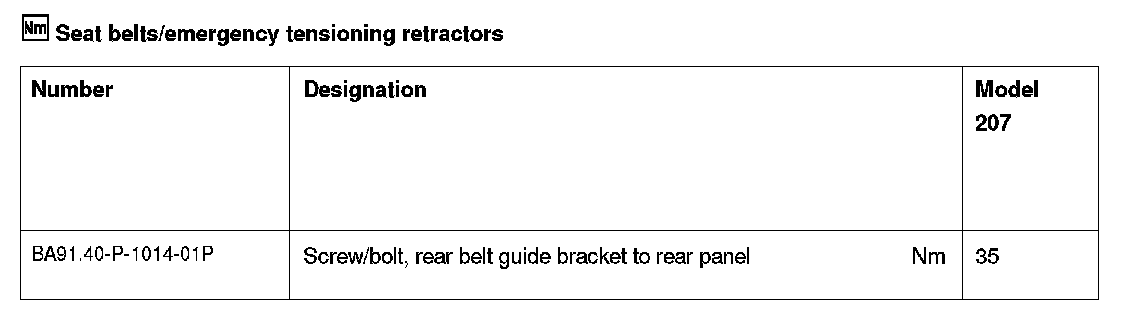

7 Seat belt guide bracket
8 Seat belt guide
11 Screw

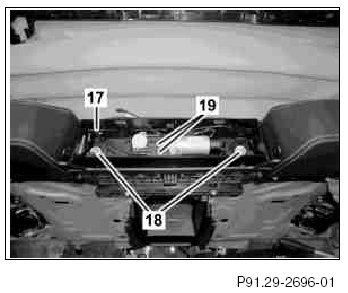

17 Box frame
18 Bolts
19 Cables

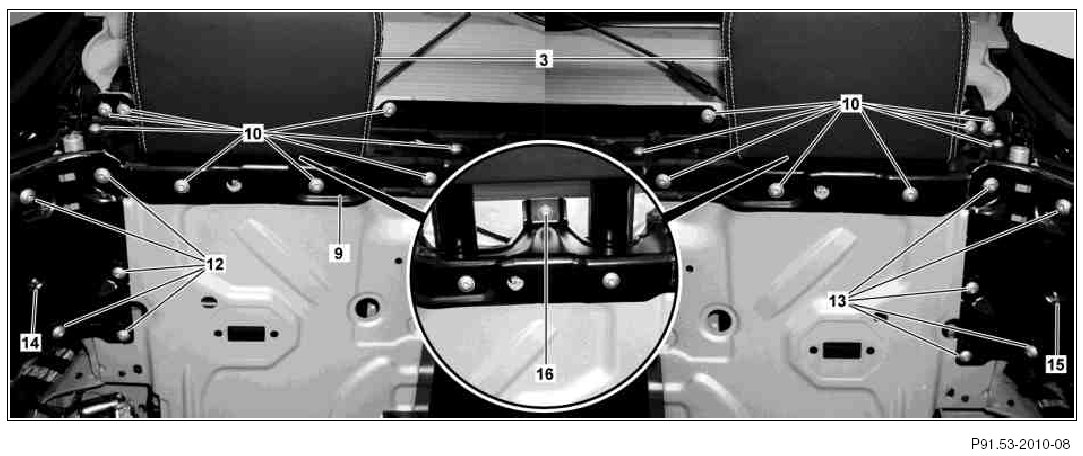

3 Head restraints
9 Roll bar reinforcement
10 Bolts
12 Bolts
13 Bolts
14 Connecting panel
15 Connecting panel
16 Screw

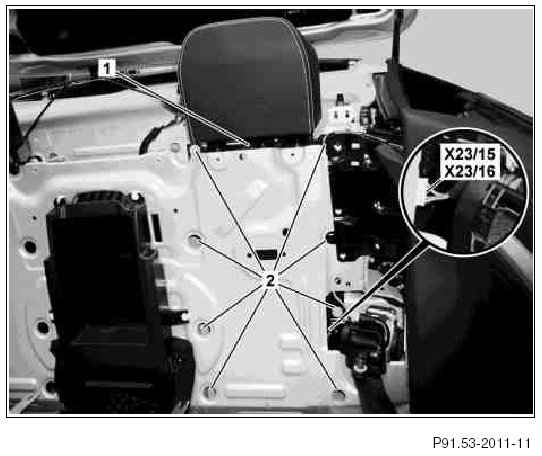

Shown on the left roll bar unit







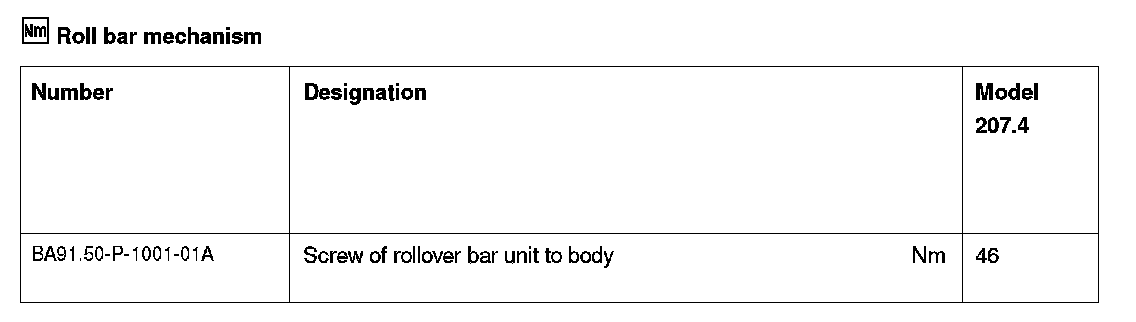

1 Roll bar unit
2 Bolts
X23/15 Left roll-over protection system electrical connector
X23/16 Right roll-over protection system electrical connector













110 589 03 59 00, Mounting wedge
