AR68.30-P-4800EC Remove/Install Side Paneling In Trunk



AR68.30-P-4800EC Remove/Install Side Paneling In Trunk

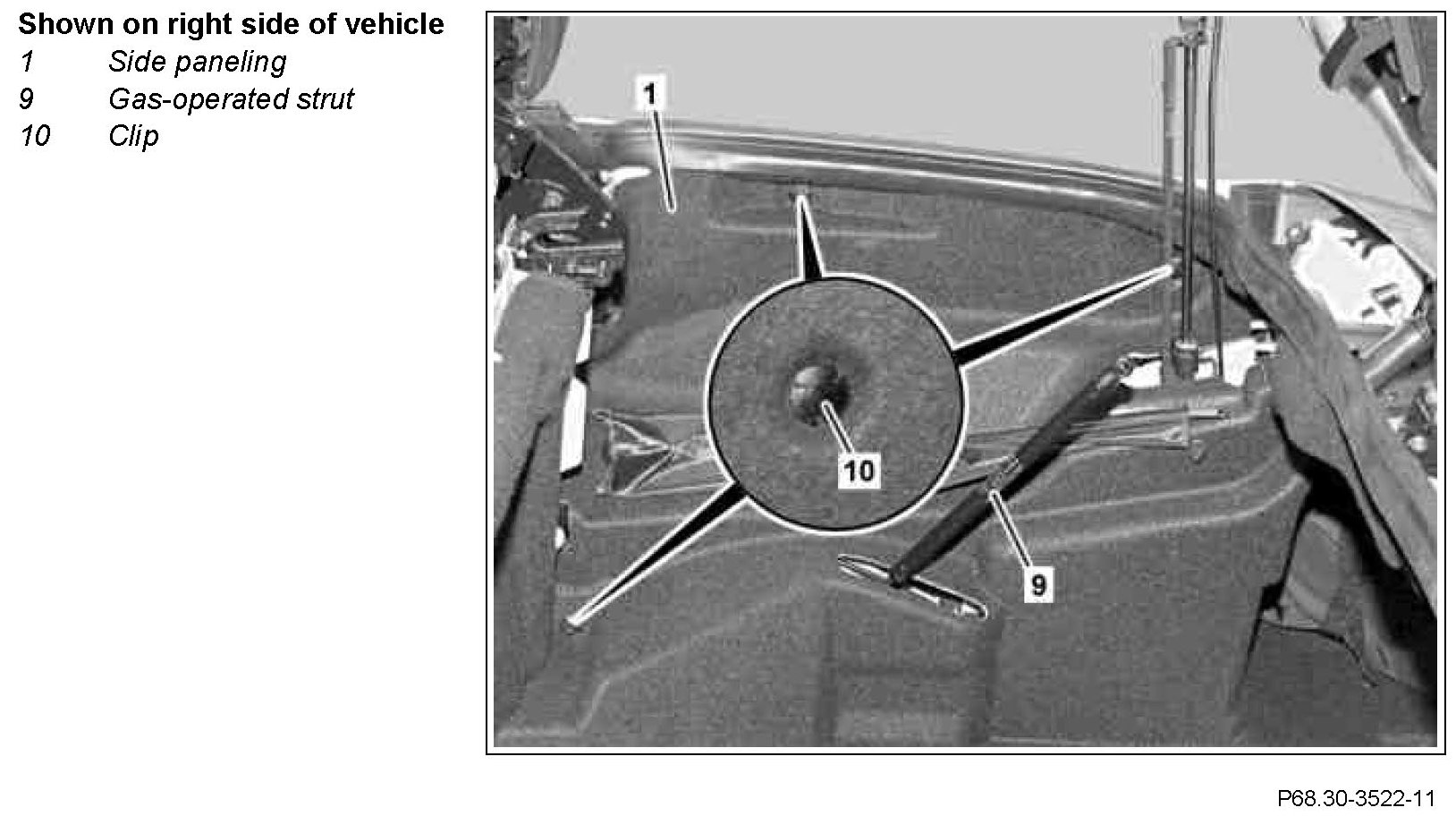

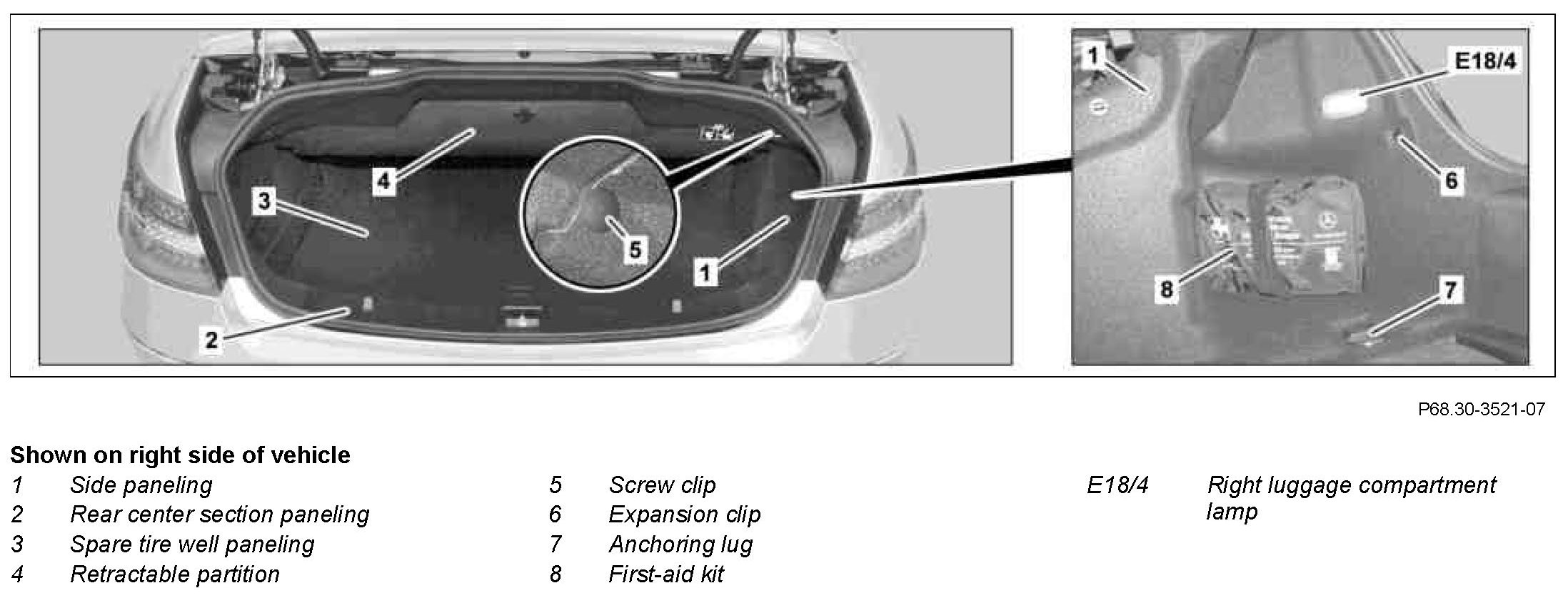

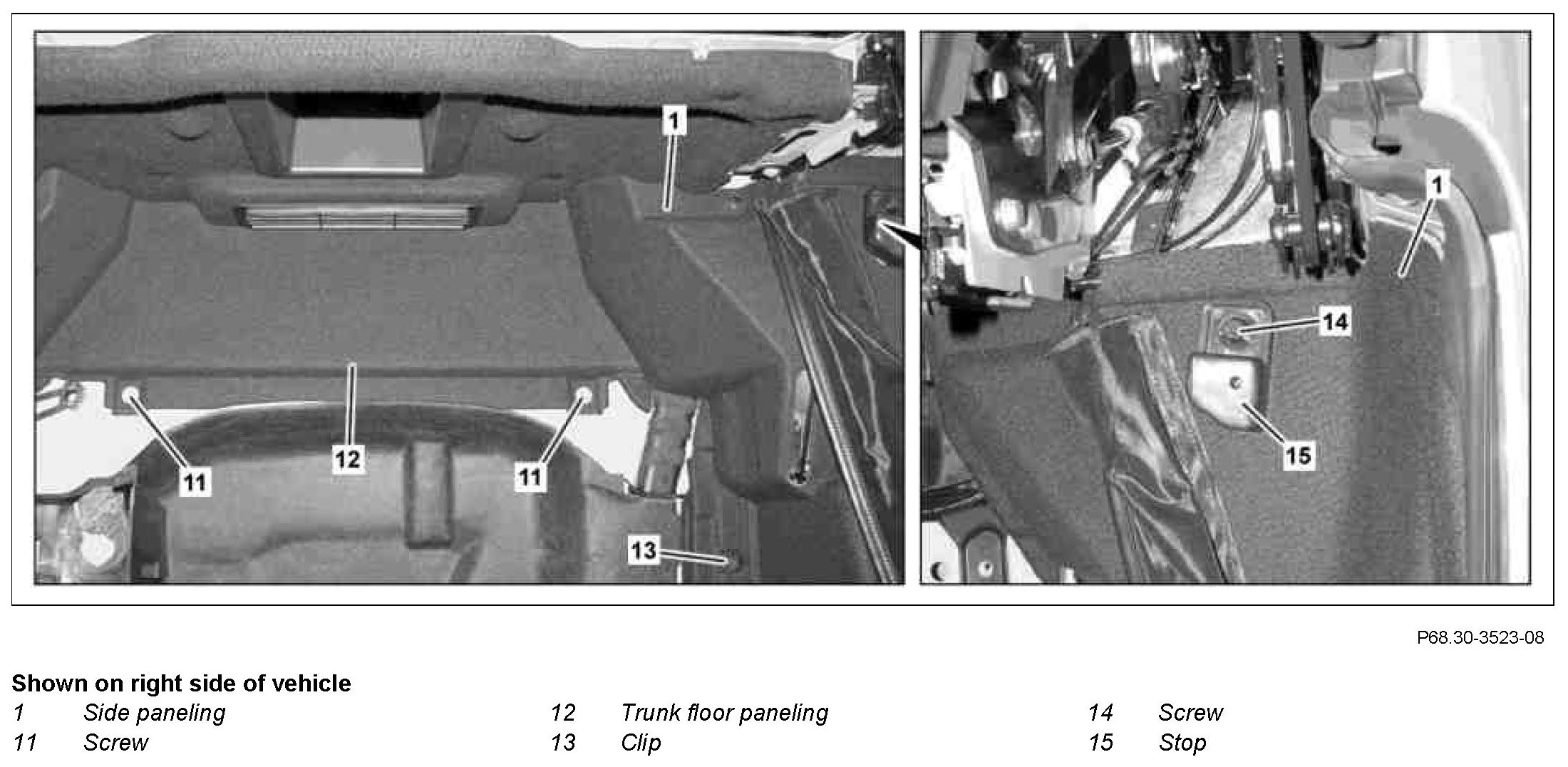

Component Identification:





Component Identification:





Component Identification:

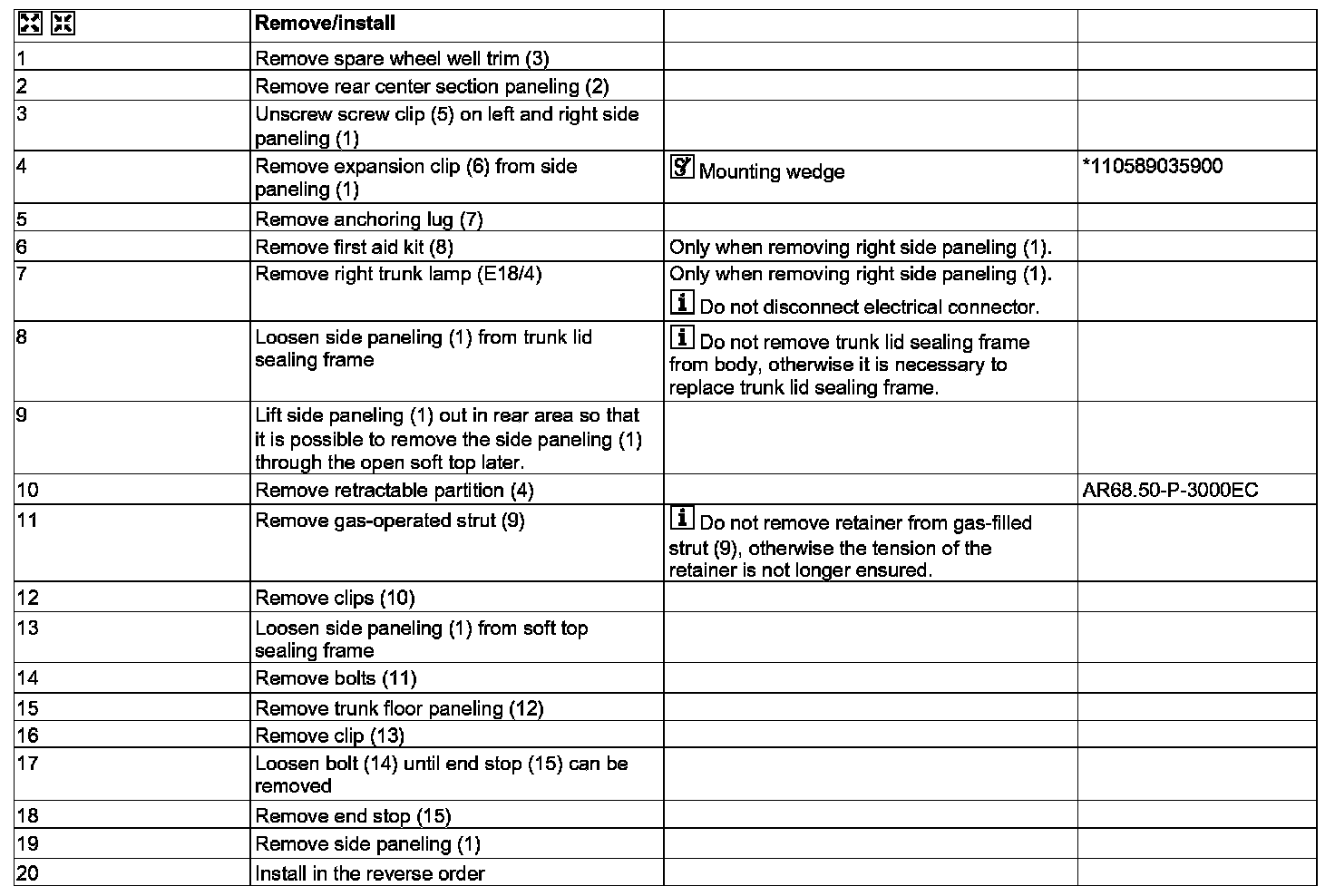

Steps 1 - 20:

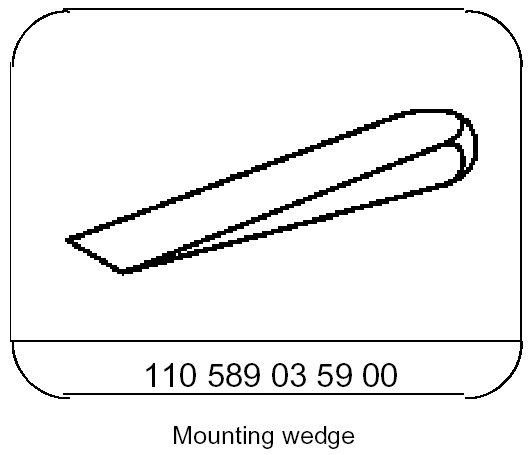

Special Tools:
