Removal and Replacement

AZ82.20-P-0001-01EC Install Illuminated Door Sill

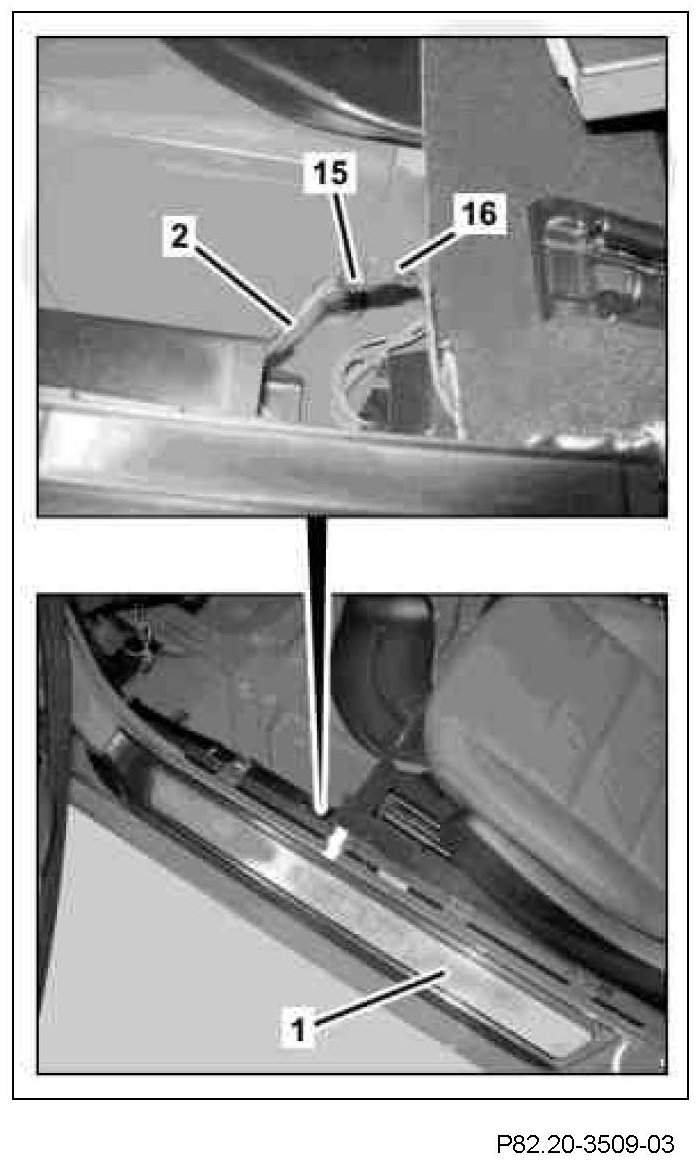

The picture shows installation of the illuminated door sill molding (1) on the left side. Installation on the right side follows the same procedure as for installation on the left side.

1 Align illuminated door sill molding (1) and clip in place.

When installing the illuminated door sill molding (1), make sure that the ribbon cable is not twisted or crushed. This can cause a short circuit in the electric circuit.

2 Connect black connector housing (15) of wiring harness for illuminated door sill molding (2) to black coupling housing (16) of illuminated door sill molding (1).
3 Wrap round connector with felt tape and fix in place on longitudinal member.
