Overhaul

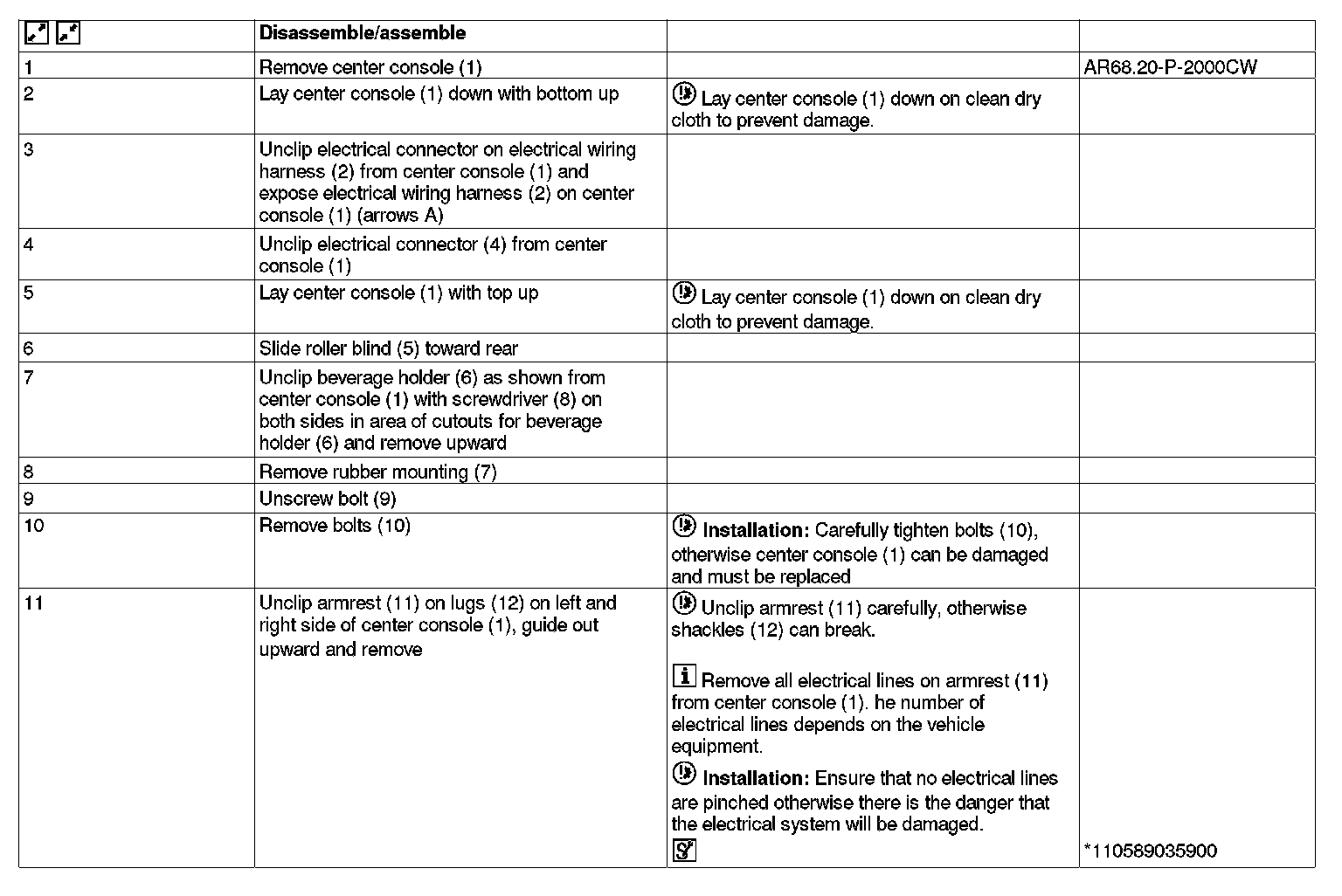

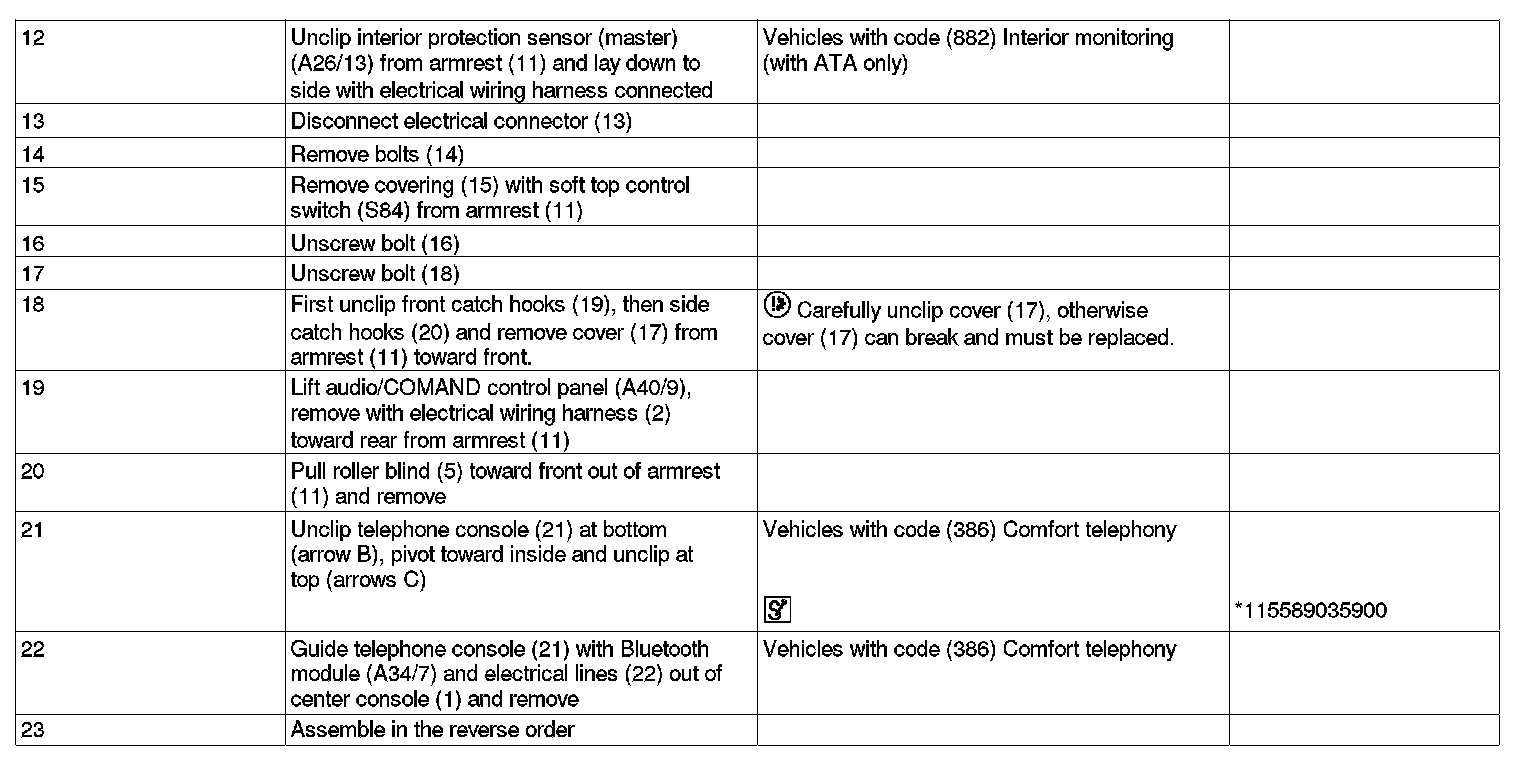

AR68.20-P-2150EC Disassemble/Assemble Center Console

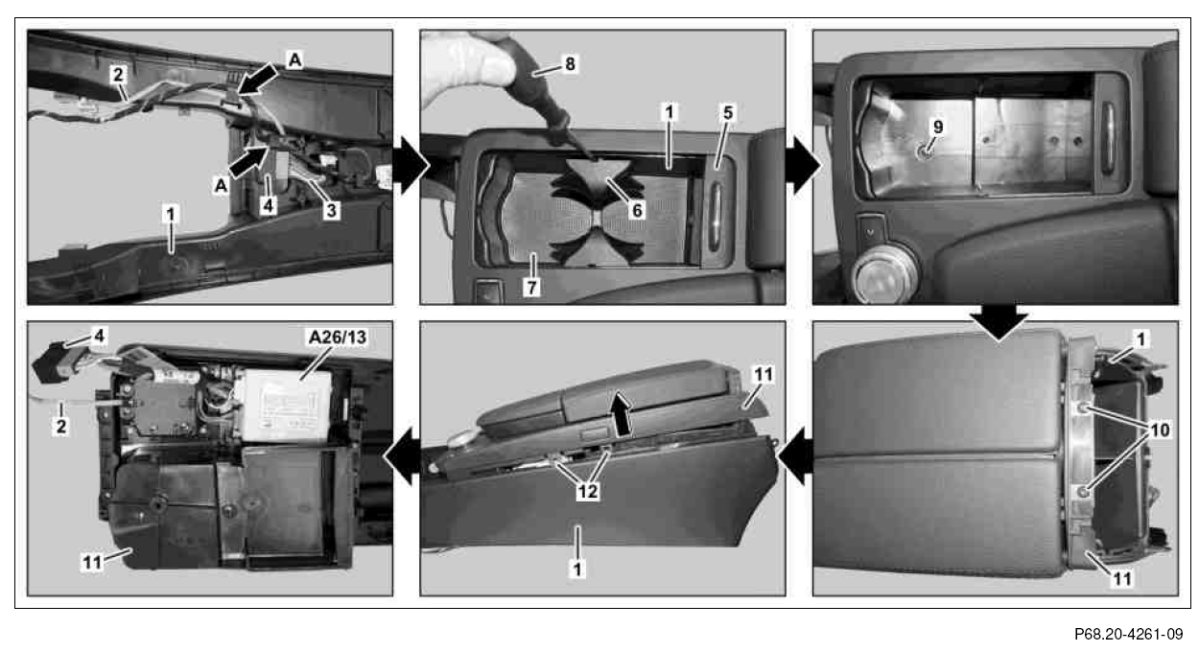

1 Center console
2 Wiring harness
3 Wiring harness
4 Electrical connector
5 Roller blind
6 Beverage holder
7 Rubber pad
8 Screwdriver
9 Screw
10 Bolts
11 Armrest
12 Lugs
A26/13 Interior protection sensor (master) (with code (882) Interior monitoring (only with ATA)

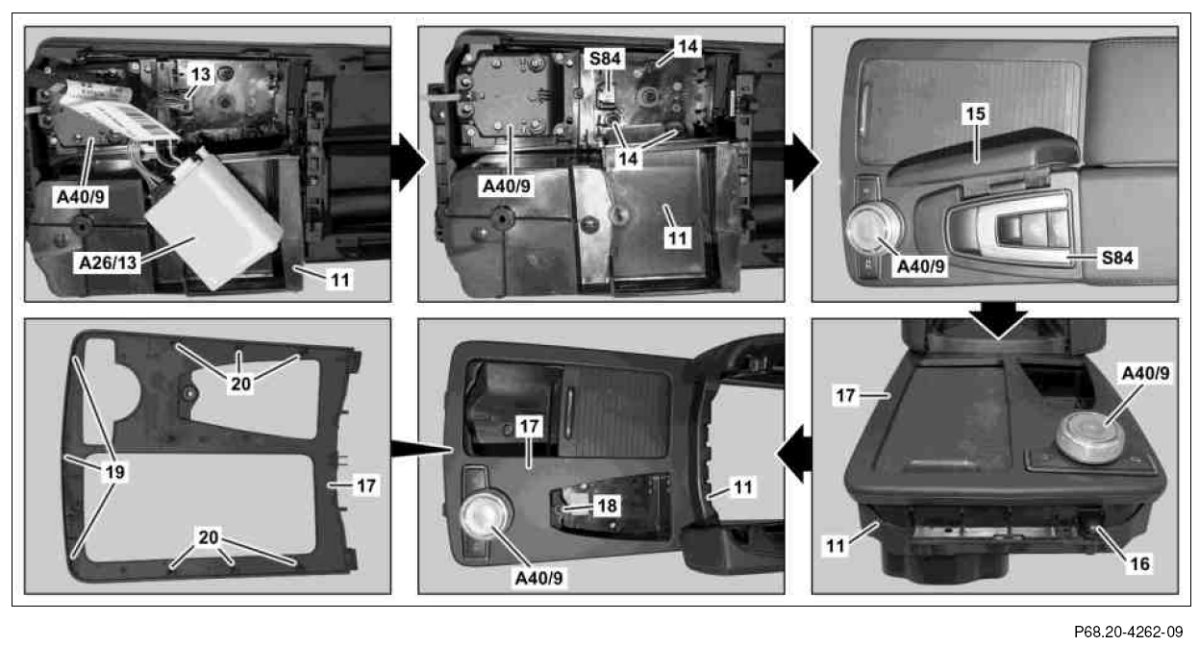

11 Armrest
13 Electrical connector
14 Bolts
15 Base
16 Screw
17 Cover
18 Screw
19 Front catch hook
20 Side catch hook
A26/13 Interior protection sensor (master) (with code (882) Interior monitoring (only with ATA)
A40/9 Audio/COMMAND control panel
S84 Soft top control switch

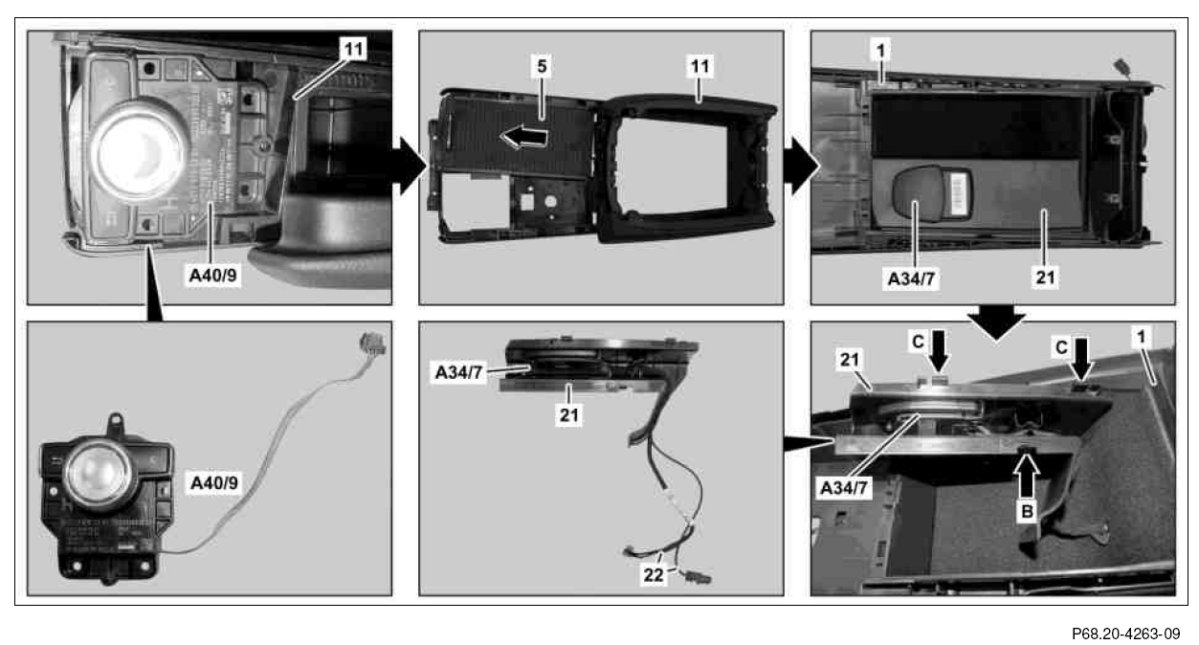

1 Center console
5 Roller blind
11 Armrest
21 Telephone console (with code (386) Comfort telephony)
22 Electrical lines (with code (386) Comfort telephony)
A34/7 Bluetooth module (with code (386) Comfort telephony)
A40/9 Audio/COMMAND control panel










110 589 03 59 00, Mounting wedge







115 589 03 59 00, Long wedge
