AR35.10-P-0041CW Front Rubber Mount of Rear Axle Mount - Removal and Installation

AR35.10-P-0041CW Front Rubber Mount Of Rear Axle Mount - Removal And Installation
MODEL 204, 207, 231

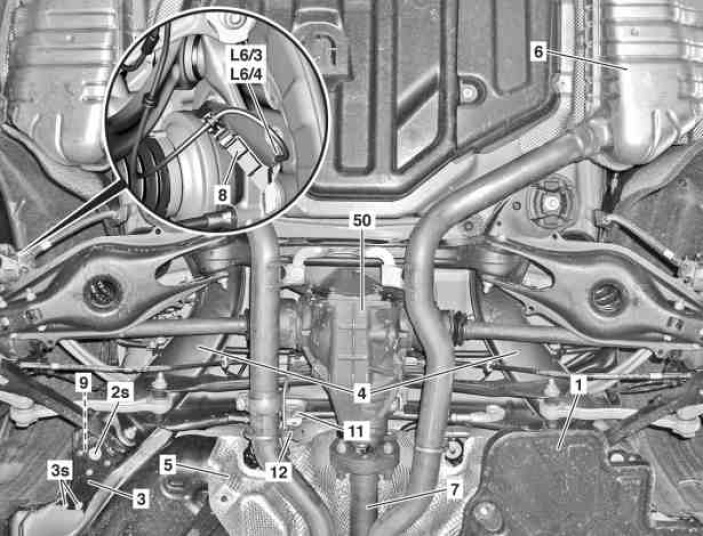

4 Rear axle carrier
9 Rubber bushing








204 589 00 43 00
Extraction and insertion tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)





001 589 01 63 00
Retaining belt
