Hood Latch: Testing and Inspection
AP88.40-P-8851EW Check Engine Hood Lock And Safety Hook

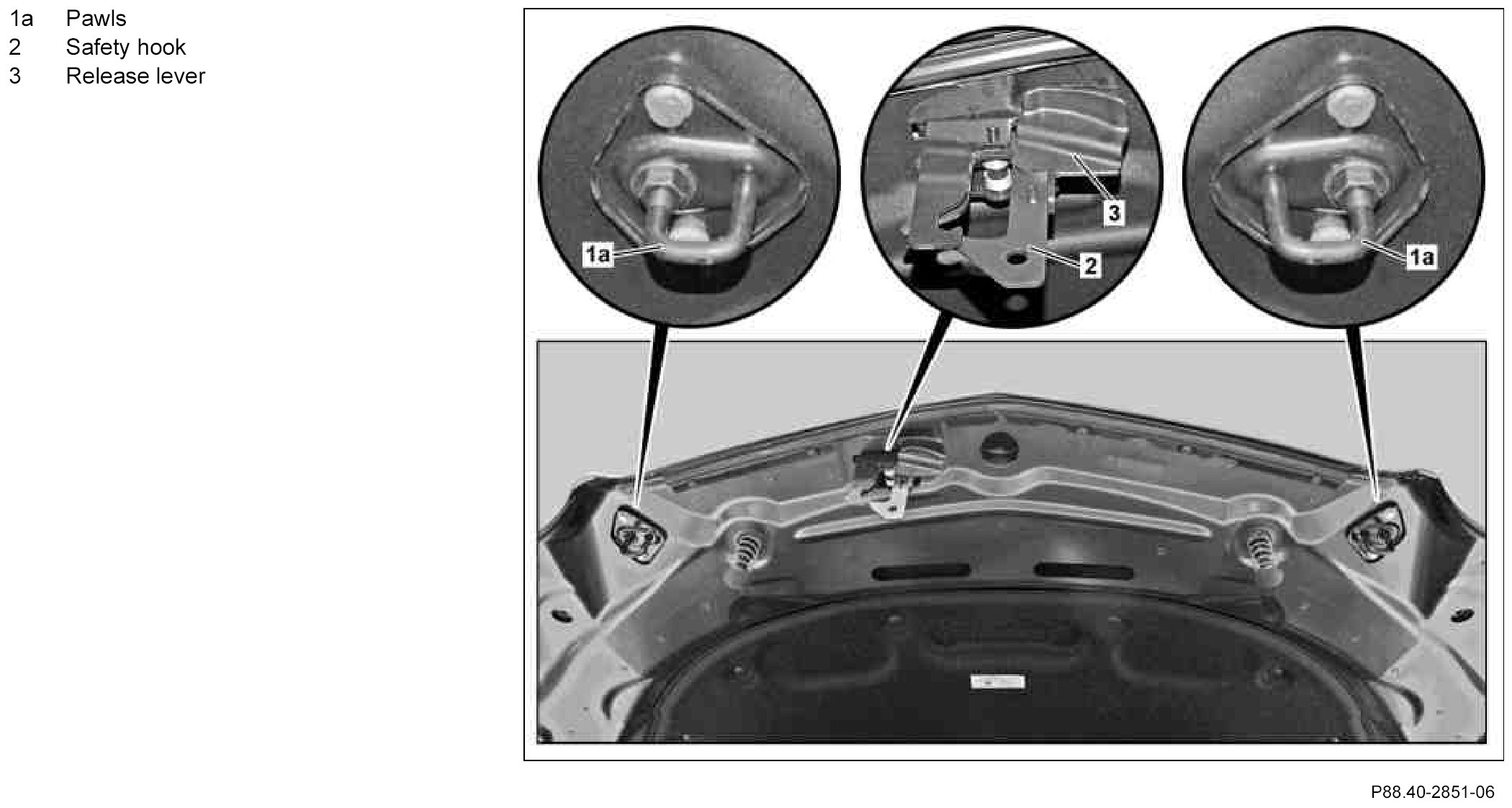

Component Identification:

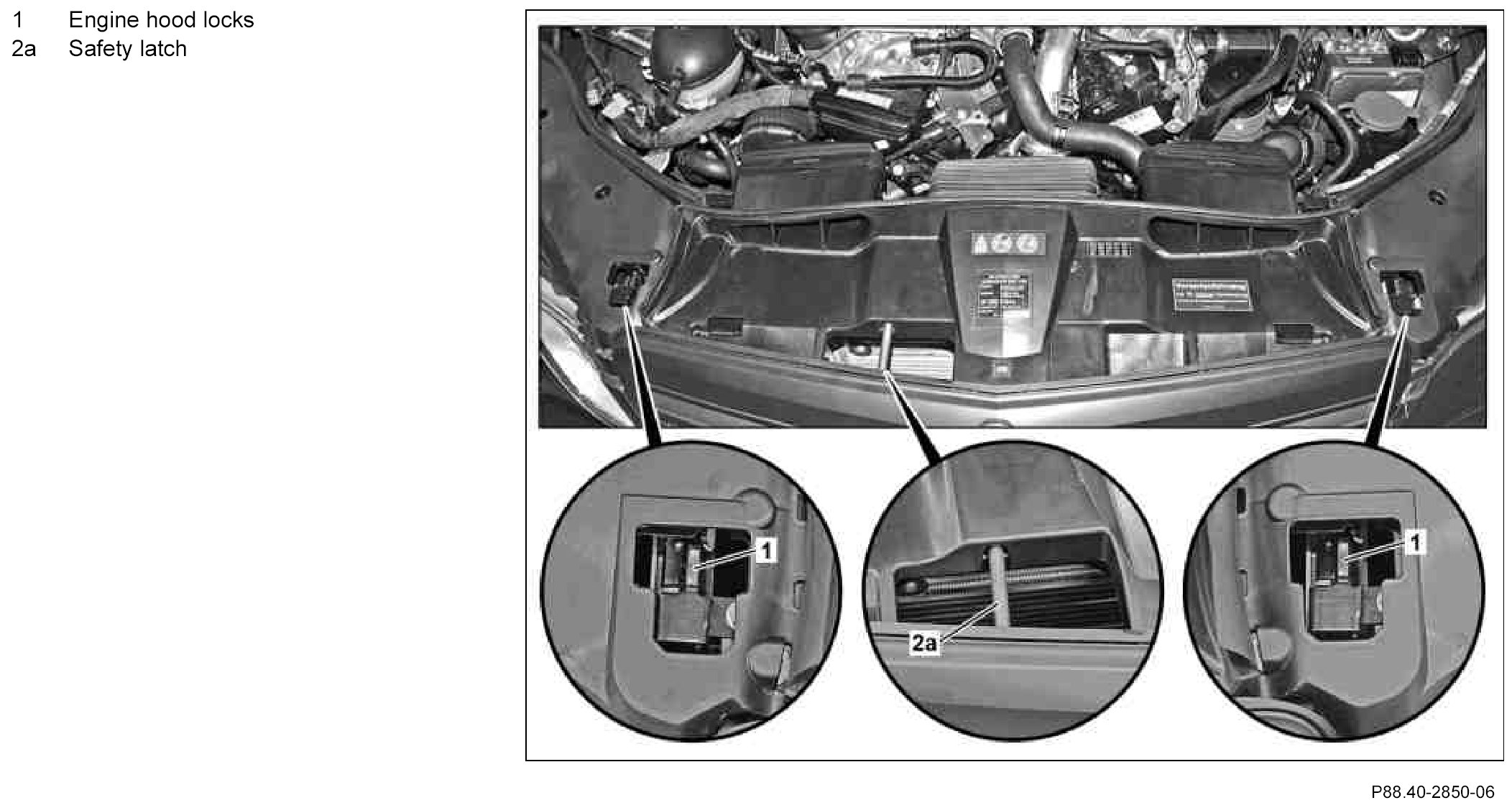

Component Identification:

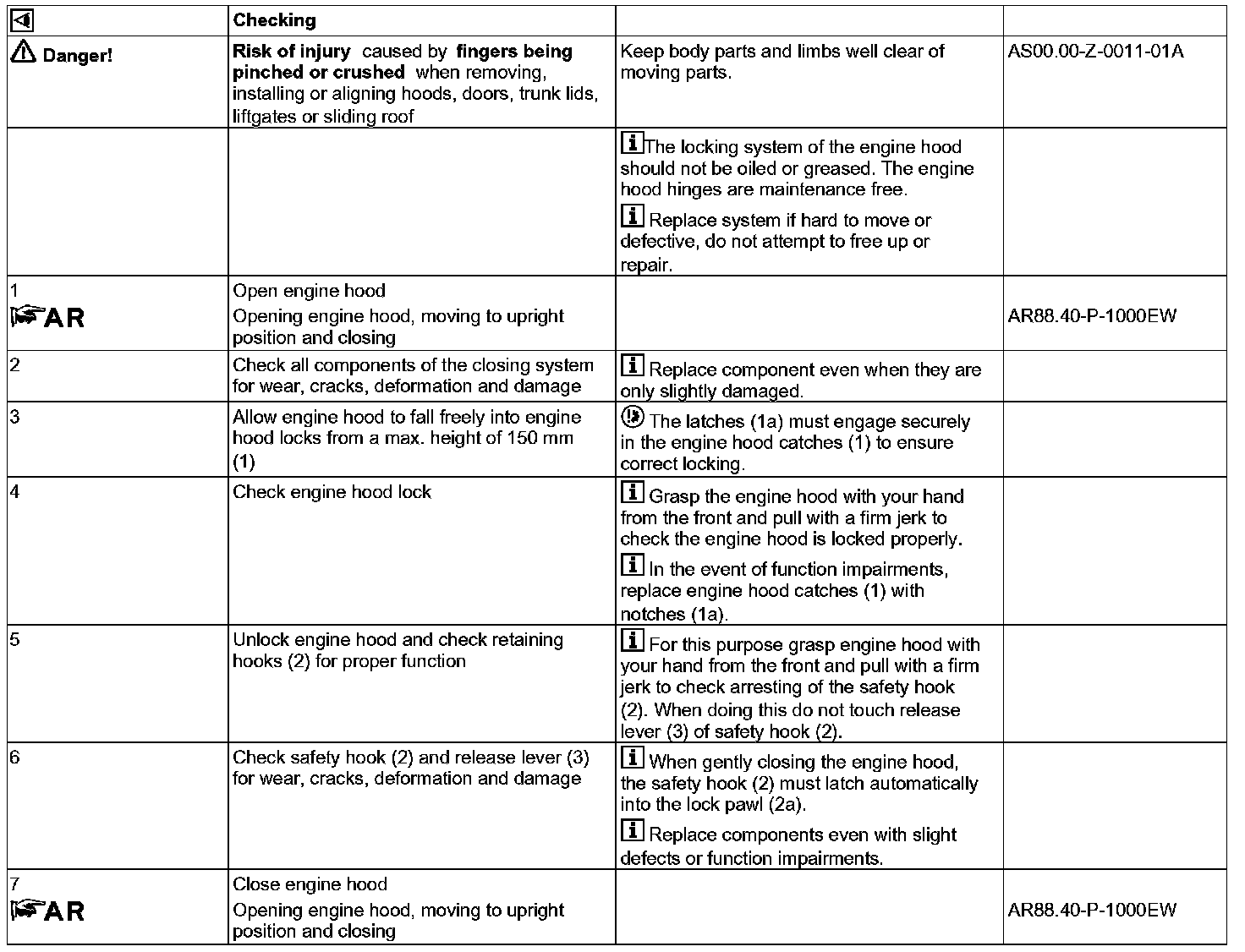

Steps 1 - 7:
