GF82.60-P-0004-02CAA Audio System, Block Diagram

GF82.60-P-0004-02CAA Audio System, Block Diagram
MODEL 207.3 /4
- with CODE (523) MB Audio 20 radio





Model 207.3
A1 Instrument cluster
A2 Radio
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
CAN A Telematics CAN
CAN B Interior CAN
CAN E Chassis CAN
LIN E1 Steering LIN
LVDS Low voltage differential signal

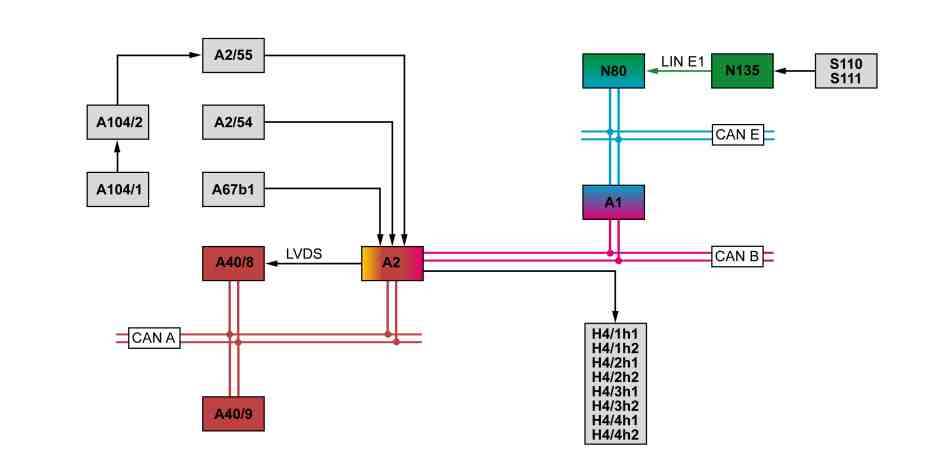

Model 207.4
A1 Instrument cluster
A2 Radio
A2/54 TV 3FM2, and DAB band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
N80 Steering column module control unit
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
CAN A Telematics CAN
CAN B Interior CAN
CAN E Chassis CAN
LIN E1 Steering LIN
LVDS Low voltage differential signal
