AN54.65-P-0030-06ECB Retrofit Reversing Camera Power Supply Module

AN54.65-P-0030-06ECB Retrofit Reversing Camera Power Supply Module
- MODEL 207.4## 1#
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (460) Canada version

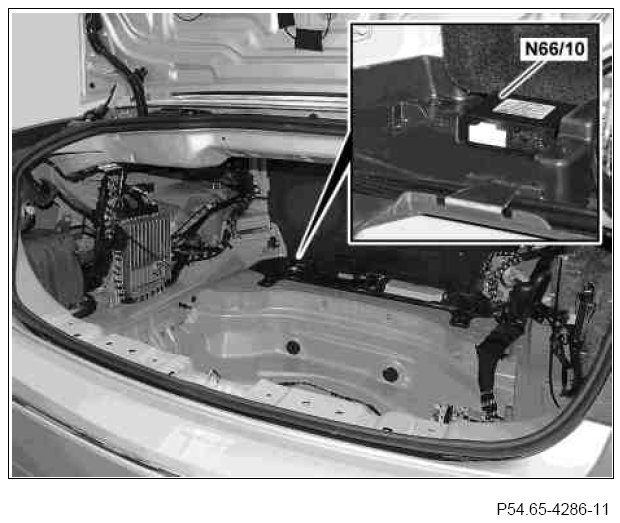

1 Insert the reversing camera power supply module (N66/10) into the controller unit carrier plate.
The connections for the reversing camera power supply module (N66/10) must face to the rear.
