GF80.50-P-0001CA Anti-Theft Alarm System (ATA (EDW)), Function

GF80.50-P-0001CA Anti-Theft Alarm System (ATA [EDW]), Function
- with CODE (551) Anti-theft alarm system (ATA [EDW])


Antitheft alarm system (ATA), general
The ATA monitors all relevant inputs after locking the vehicle with the central locking (CL).
If a change of status is detected at one of the monitored inputs, an acoustic and visual alarm is given.
The rear SAM control unit with rear fuse and relay module (N10/2) has the master function for the ATA.

The ATA, when armed, monitors:
- Doors
- Trunk lid
- Engine hood
- Alarm siren (on model 207.3 up to 31.5.10, model 207.3 as of 1.6.10 without code (494) USA version, model 207.4 without code (494) USA version)
- Position change of vehicle (tow-away protection) (with code (882) Interior monitoring (only with ATA))
- Motion in interior compartment (interior protection) (with code (882) Interior monitoring (only with ATA))

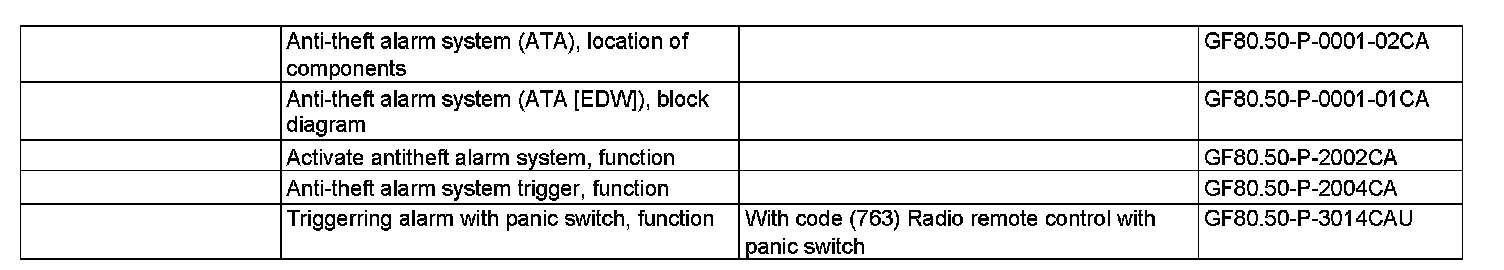

The ATA function comprises the following partial functions which are described in separate documents:
^ Activate anti-theft alarm system, function
^ Anti-theft alarm system trigger, function
^ Alarm triggering by panic switch, function (with code (763) Radio remote control with panic switch)
