Fuel Rail: Service and Repair

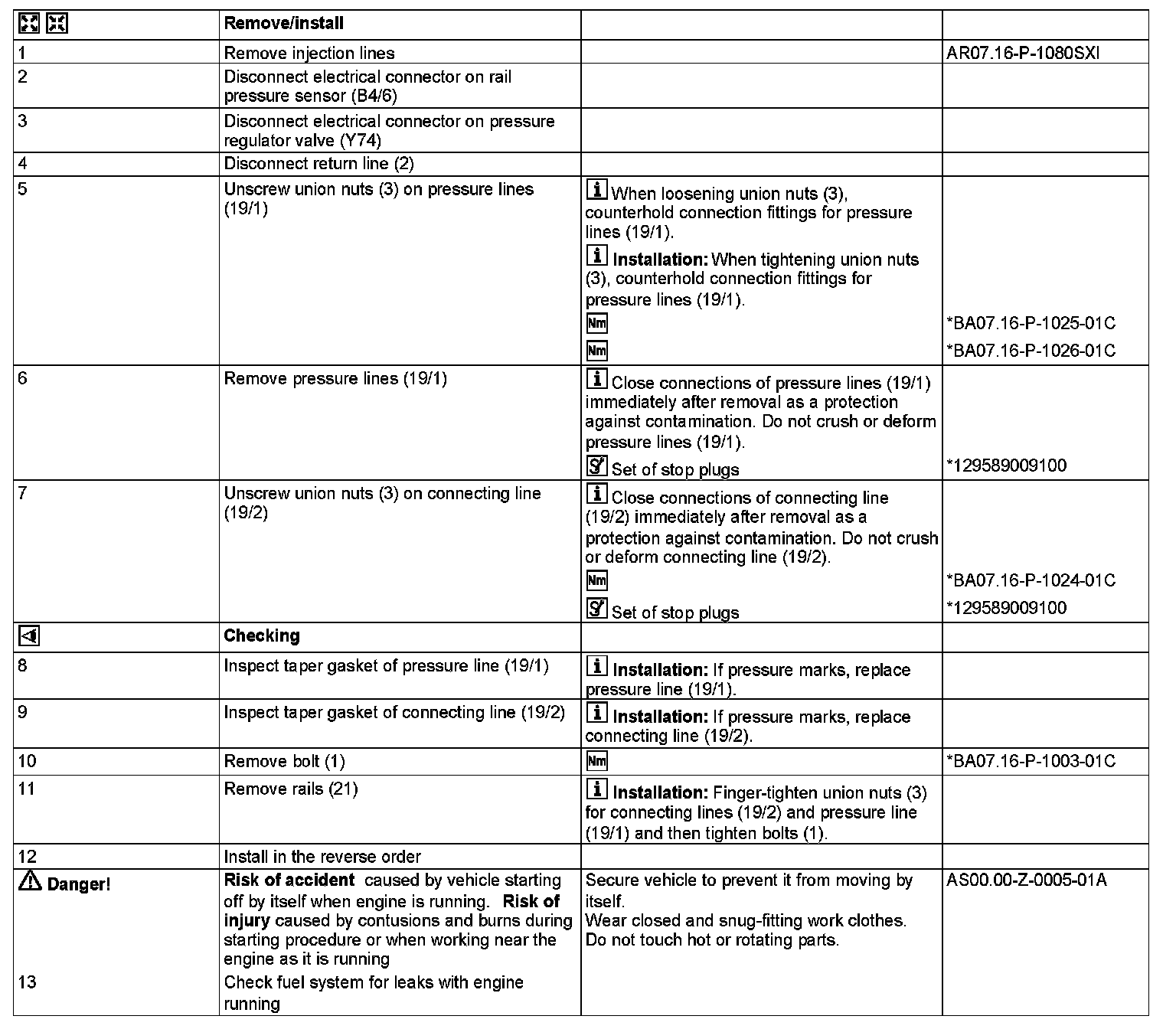

AR07.03-P-1010SXI Remove/install rail
- ENGINES 642 in MODEL 207, 212, 218, 221

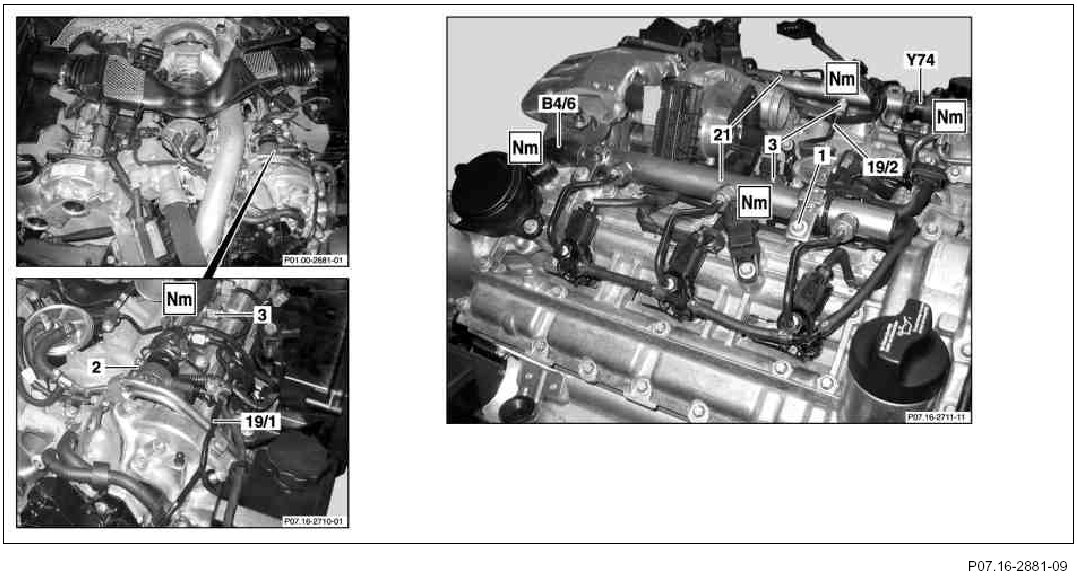

1 Screw
2 Return flow pipe
3 Union nuts
19/1 Pressure line
19/2 Connecting line
21 Rails
B4/6 Rail pressure sensor
Y74 Pressure control valve











129 589 00 91 00, Set of stop plugs
