Exhaust Manifold: Service and Repair

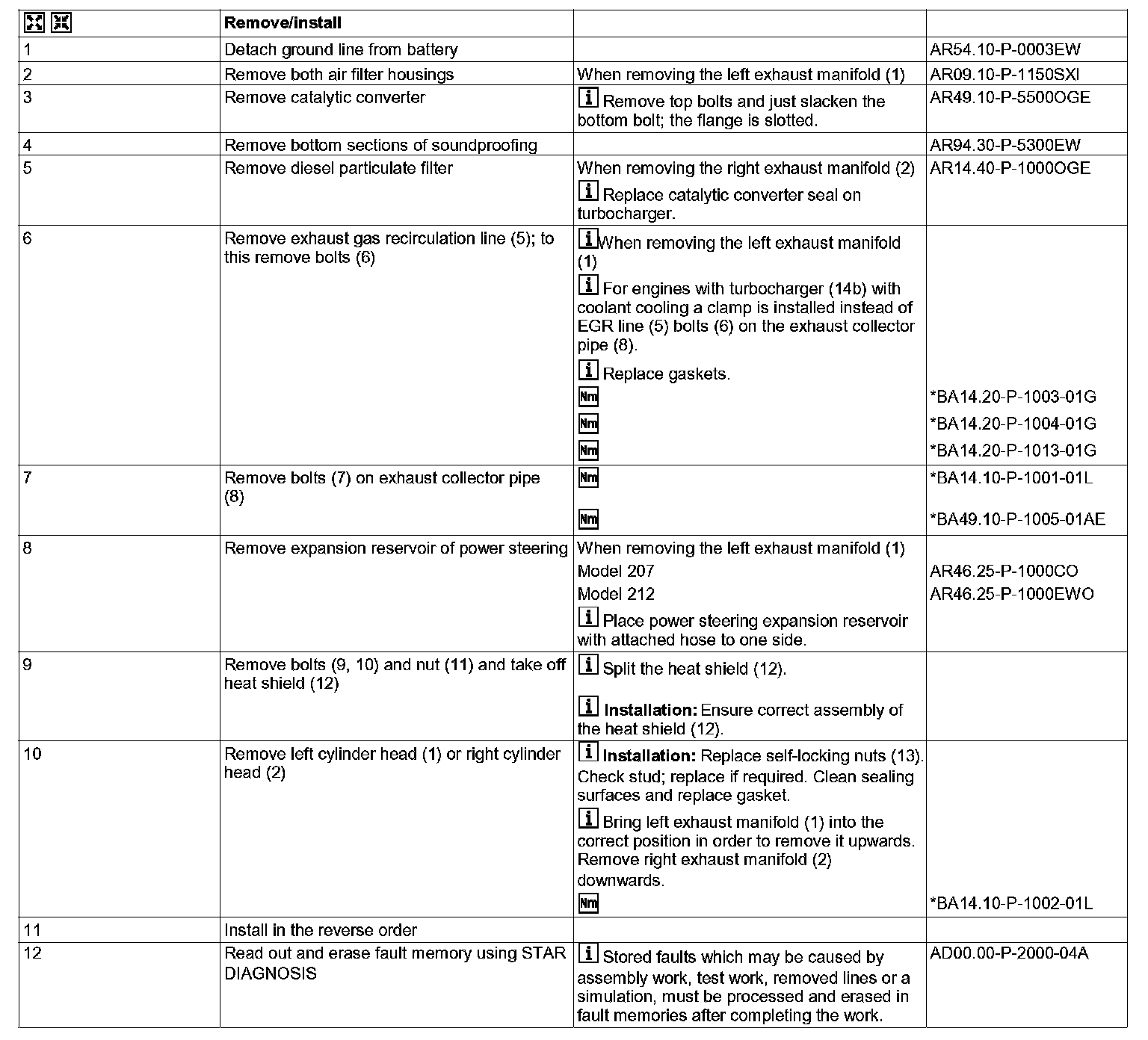

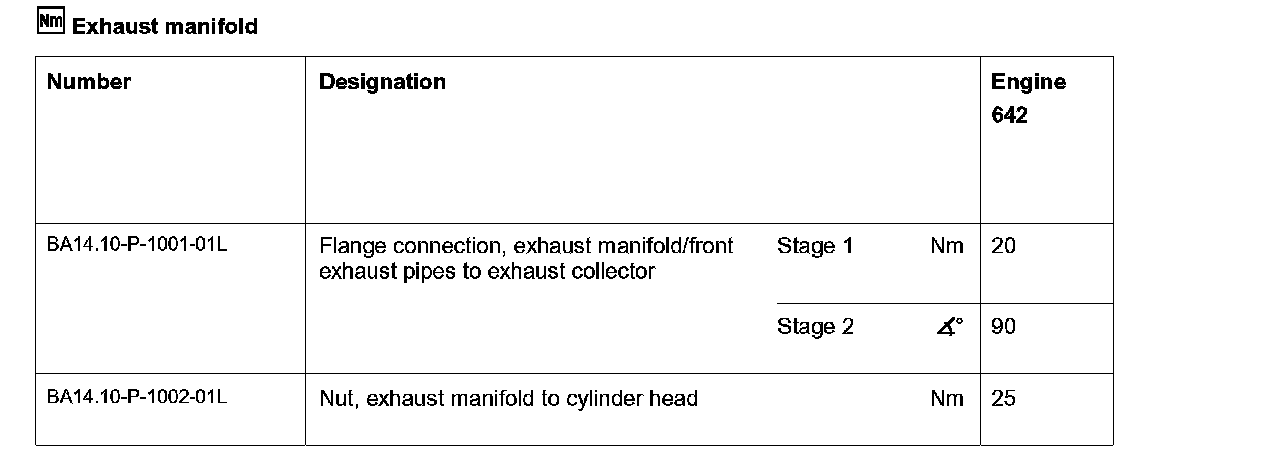

AR14.10-P-3915OGE Remove/Install Exhaust Manifold
-ENGINES 642 in MODELS 207, 212, 218

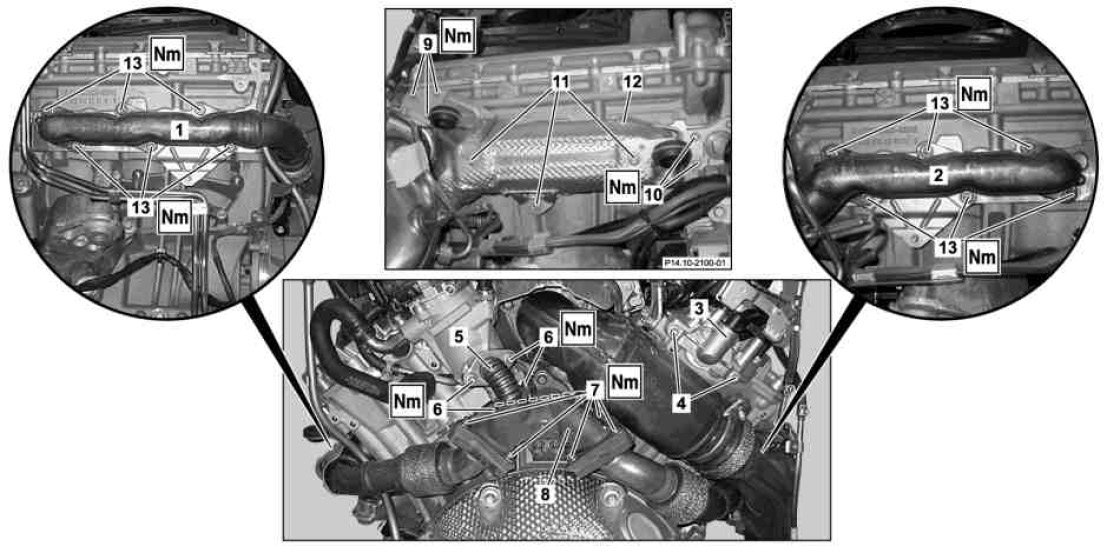

Shown on engine 642.850

1 Left exhaust manifold
2 Right exhaust manifold
3 Connection fitting for oil separator
4 Bolts

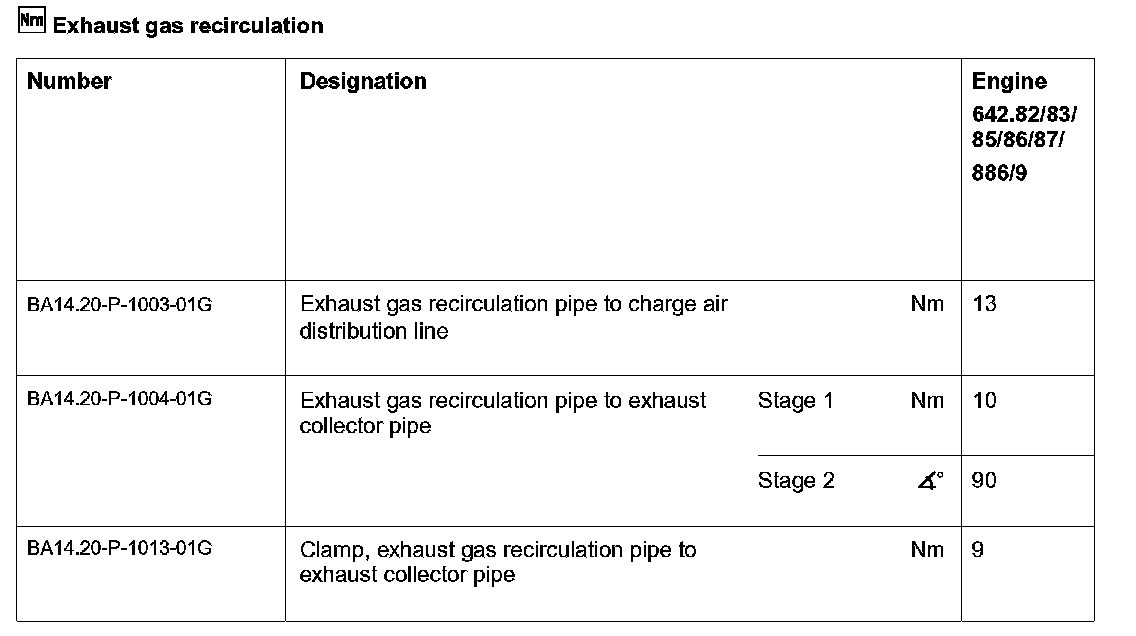

5 Exhaust gas recirculation line
6 Bolts
7 Bolts
8 Exhaust collector pipe
9 Bolts
10 Bolts
11 Nuts
12 Heat shield
13 Nuts





Turbocharger without coolant cooling

14a Turbocharger





Turbocharger with coolant cooling

14b Turbocharger
15 Coolant line
