AR03.30-P-8001EL Remove/Install Flywheel / Drive Plate
AR03.30-P-8001EL Remove/Install Flywheel / Drive Plate

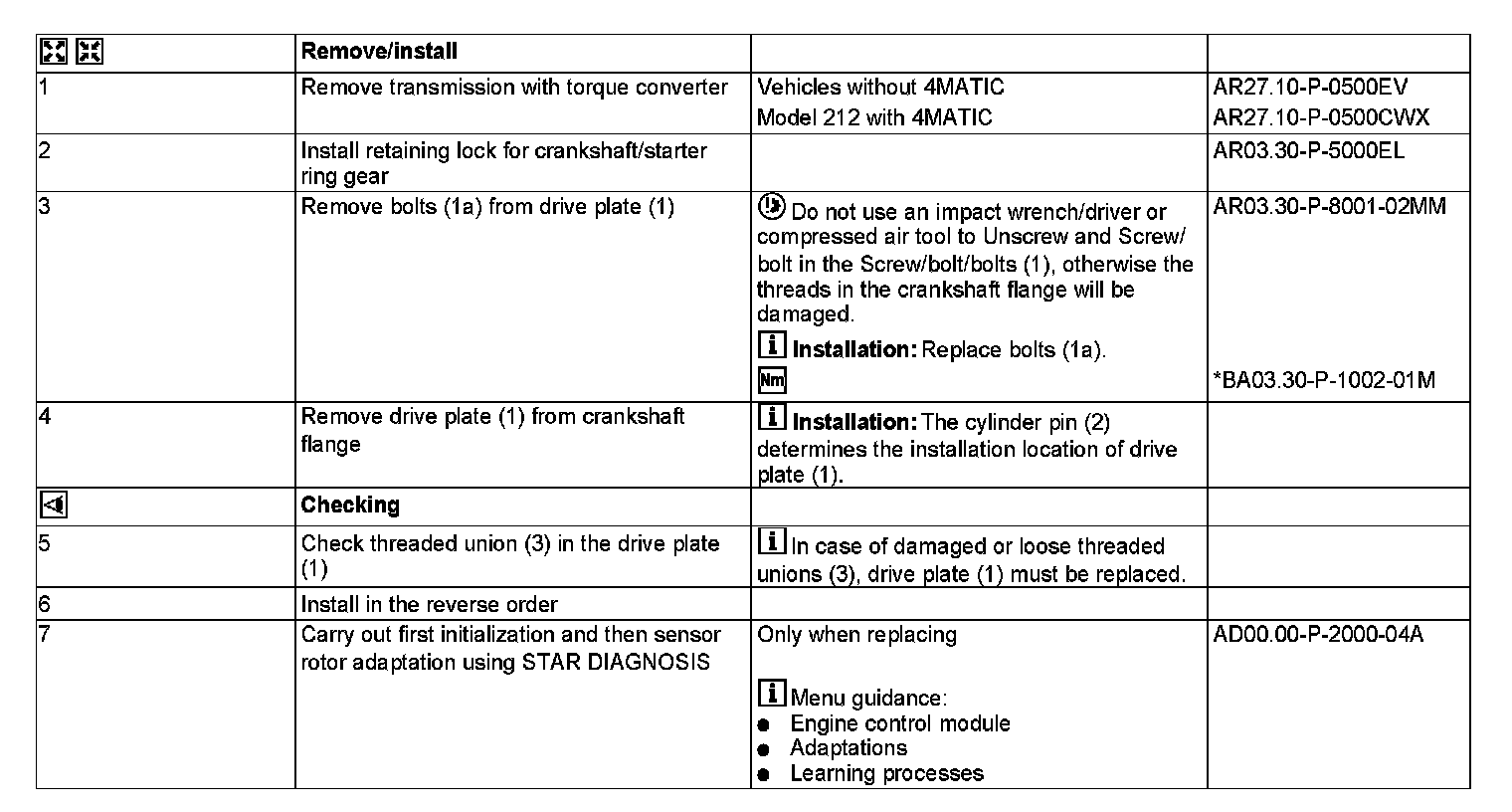

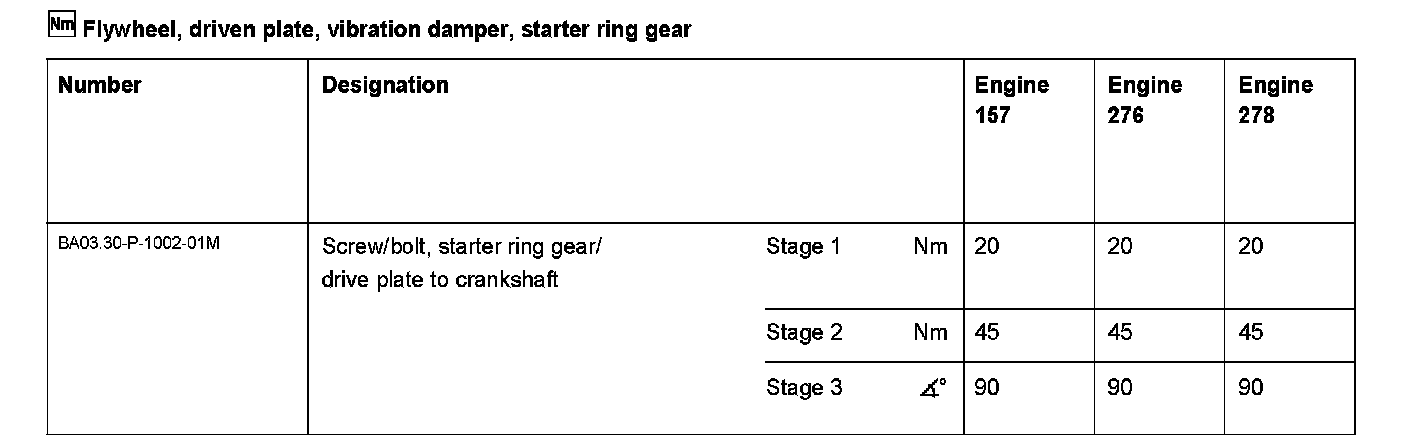

AR03.30-P-8001EL Remove/Install
Flywheel
/ Drive Plate
ENGINES 157, 276, 278 in MODEL 212, 218

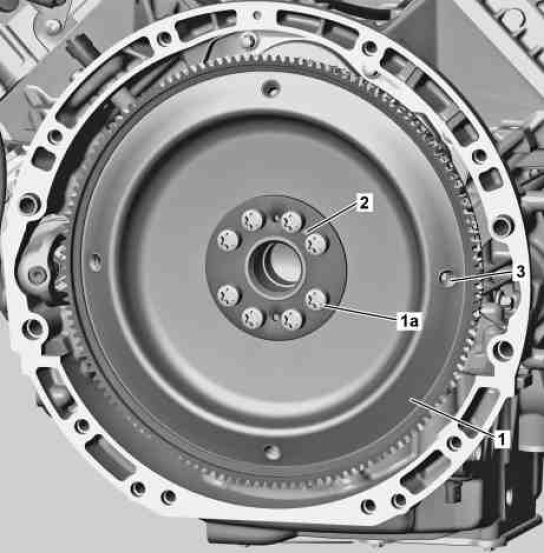

1 Driven plate
1a Screw/bolt
2 Cylinder pin
3 Threaded tool
