Front Steering Knuckle: Service and Repair
AR33.25-P-0400EWX Remove/install steering knuckle

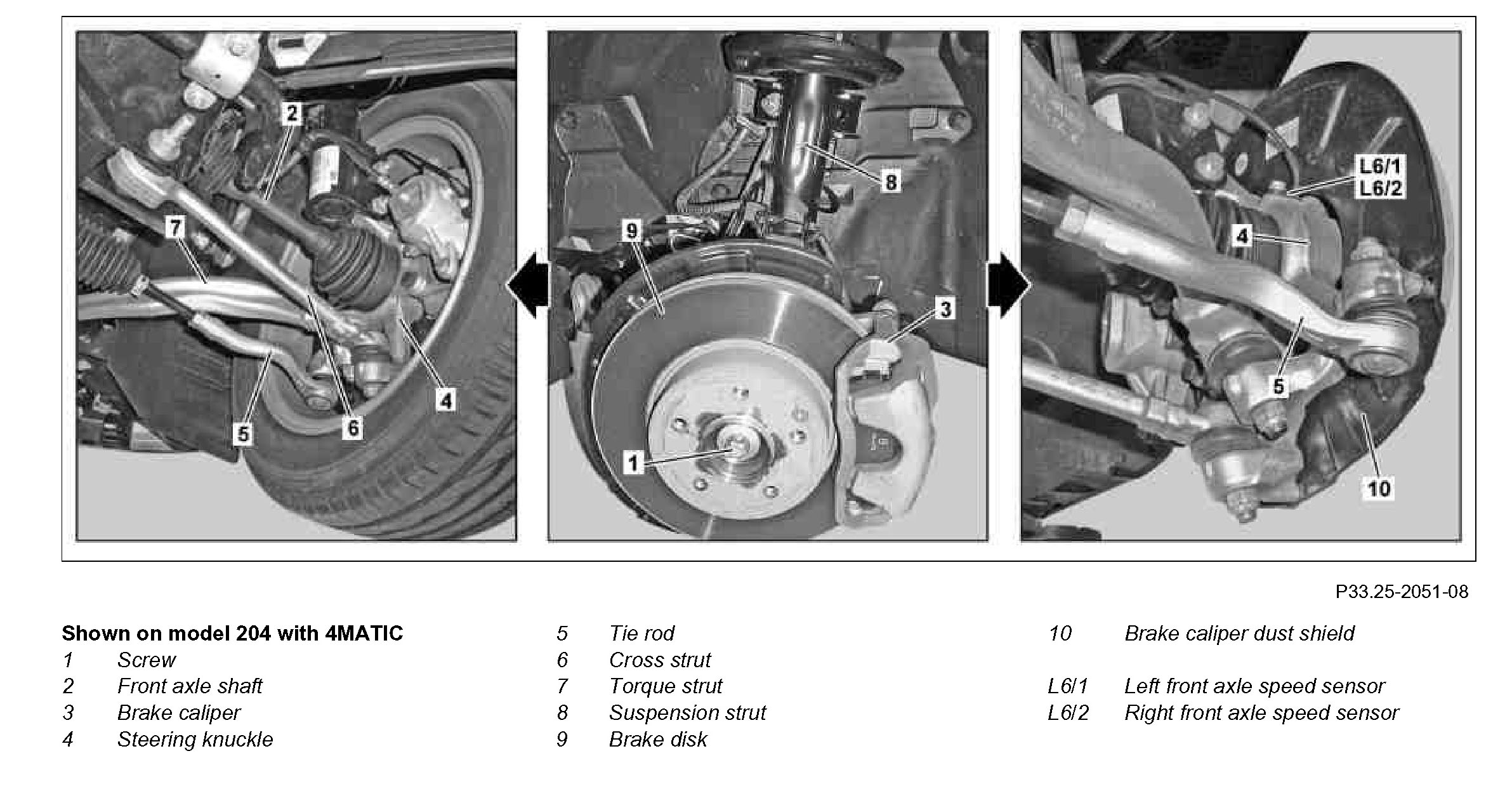

Component Identification:
Shown on model 204 with 4MATIC

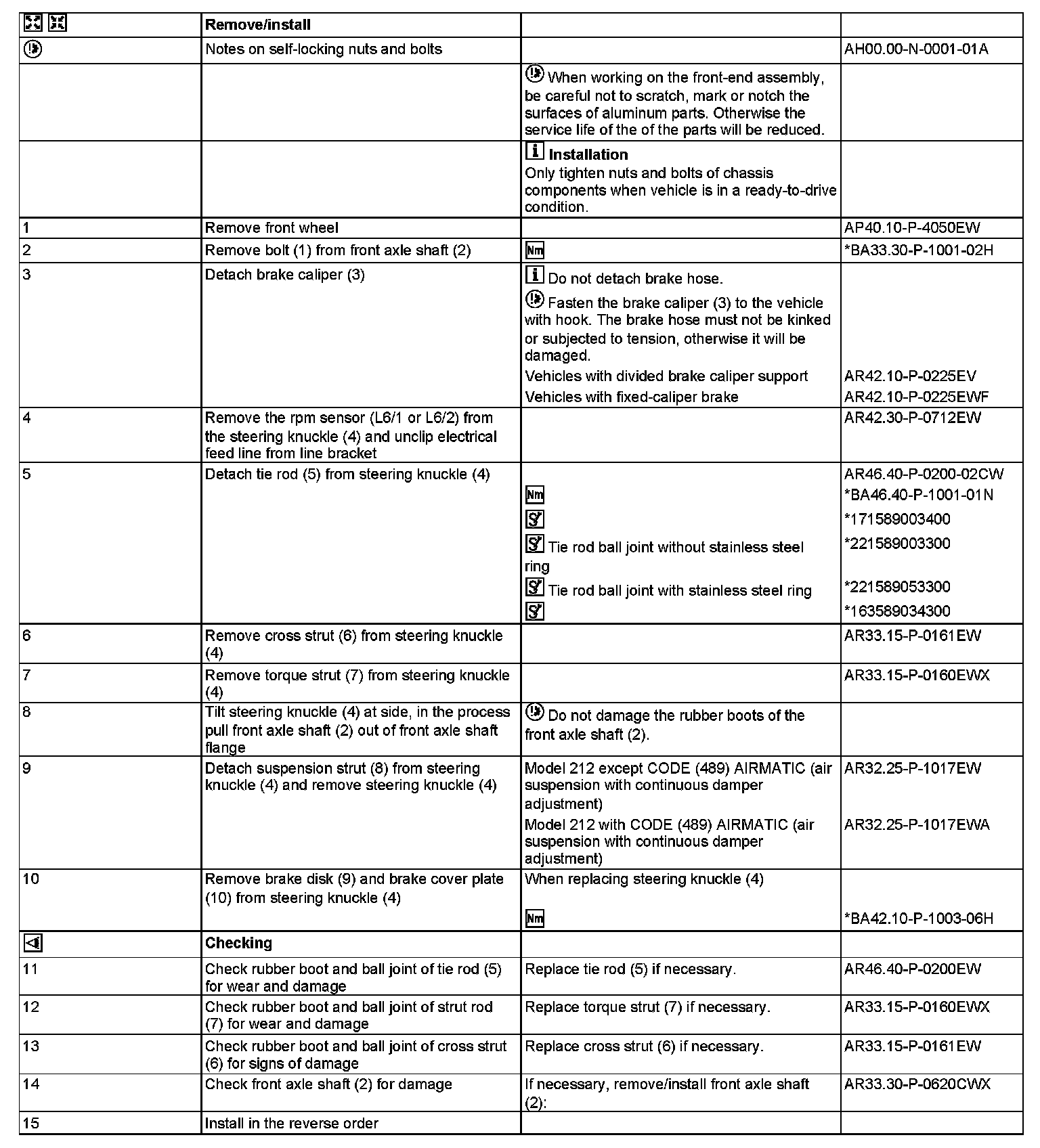

Steps 1-15:

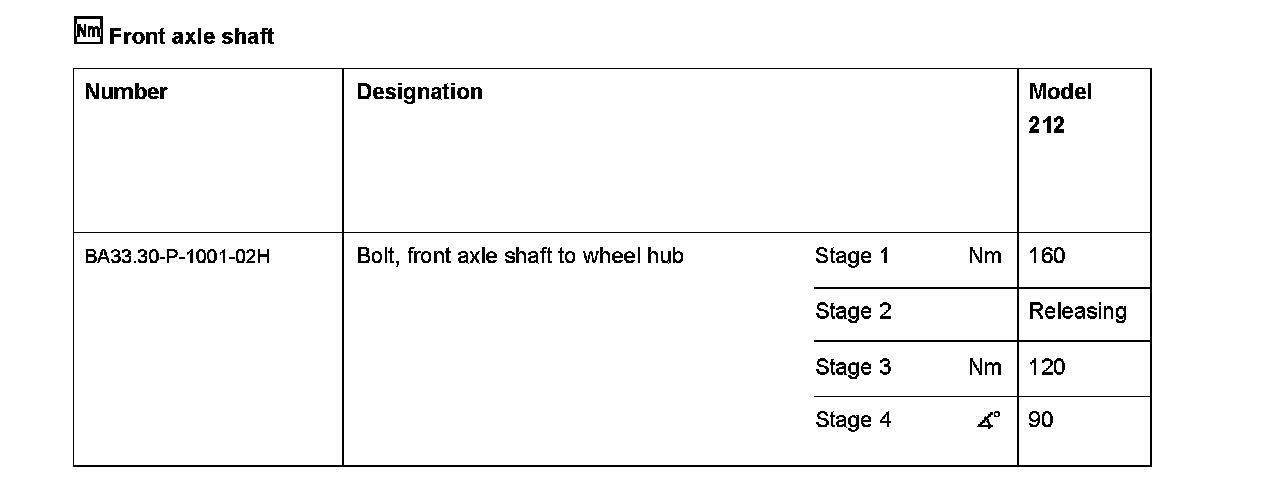

Front axle shaft:
Tie rod:

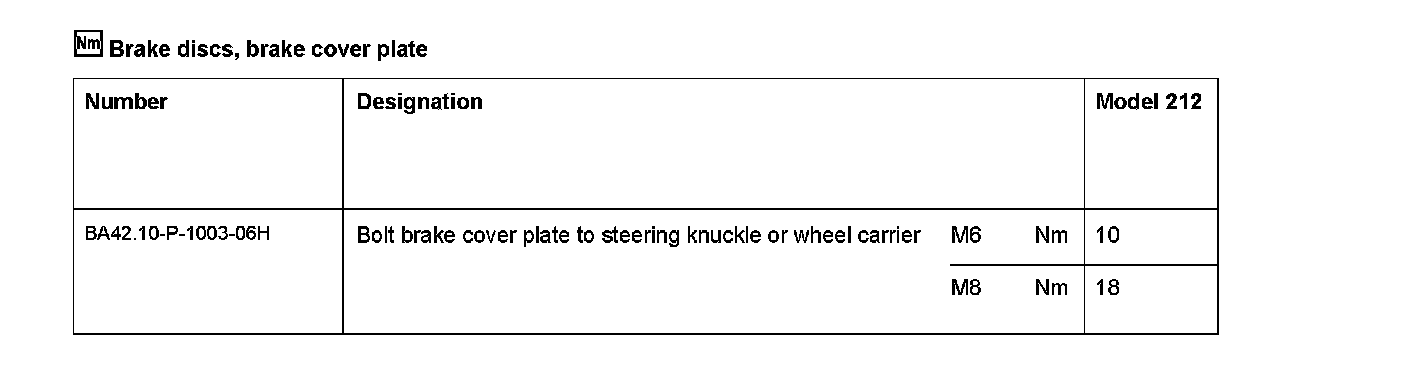

Brake discs, brake cover plate:
Special Tools:
AR33.25-P-0400EWX Remove/install steering knuckle
Shown on model 204 with 4MATIC
