Starter Motor: Service and Repair

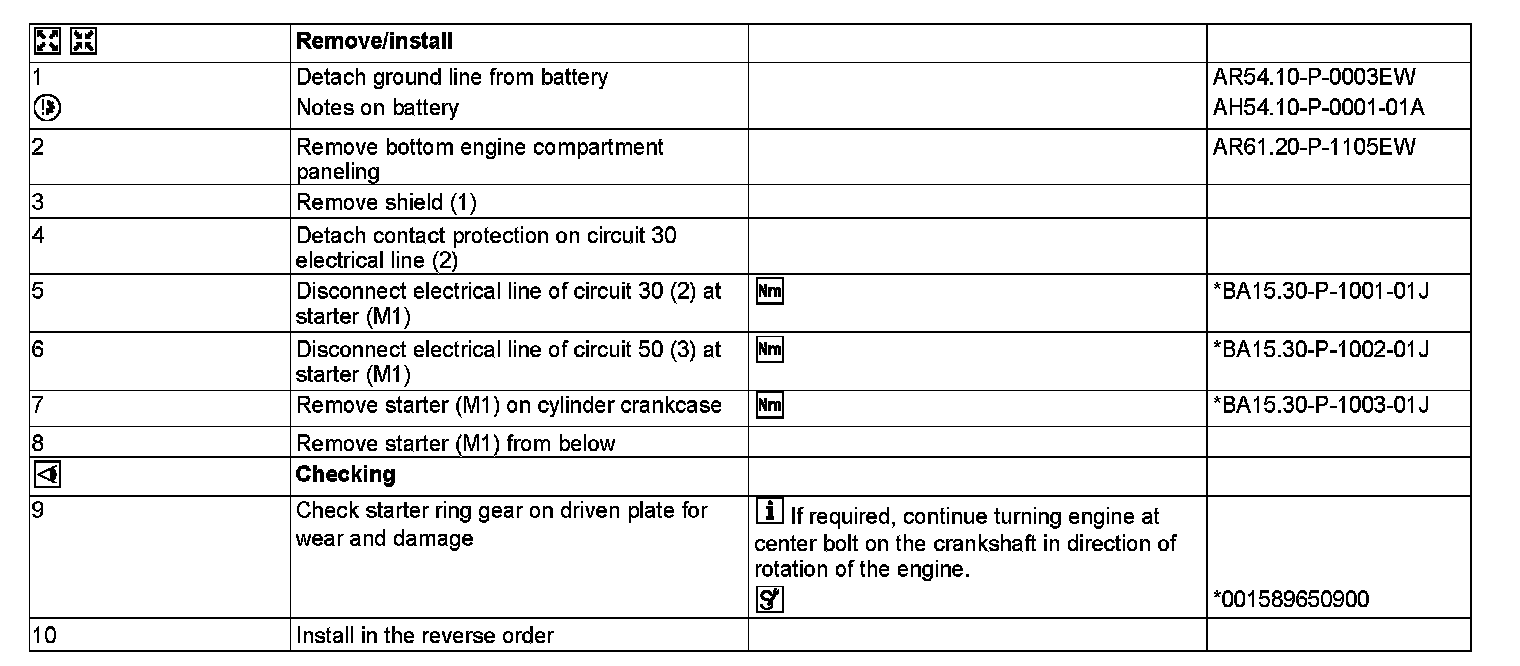

AR15.30-P-7100EL Remove/Install Starter
ENGINES 276 in MODEL 212, 218

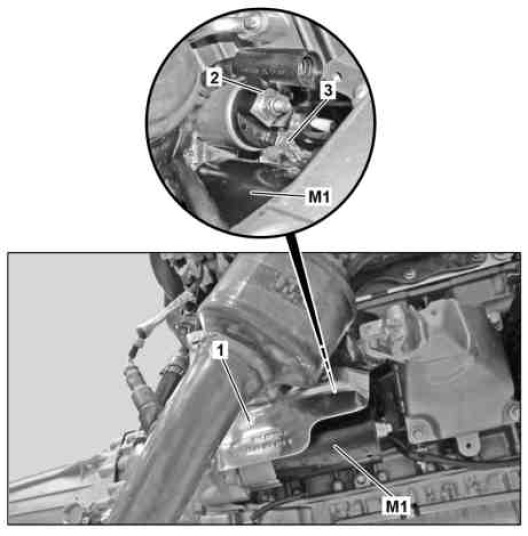

1 Shield
2 Electrical line, terminal 30
3 Electric cable circuit 50

M1 Starter











001 589 65 09 00
Wrench socket
