Alternator Pulley / Clutch: Service and Repair

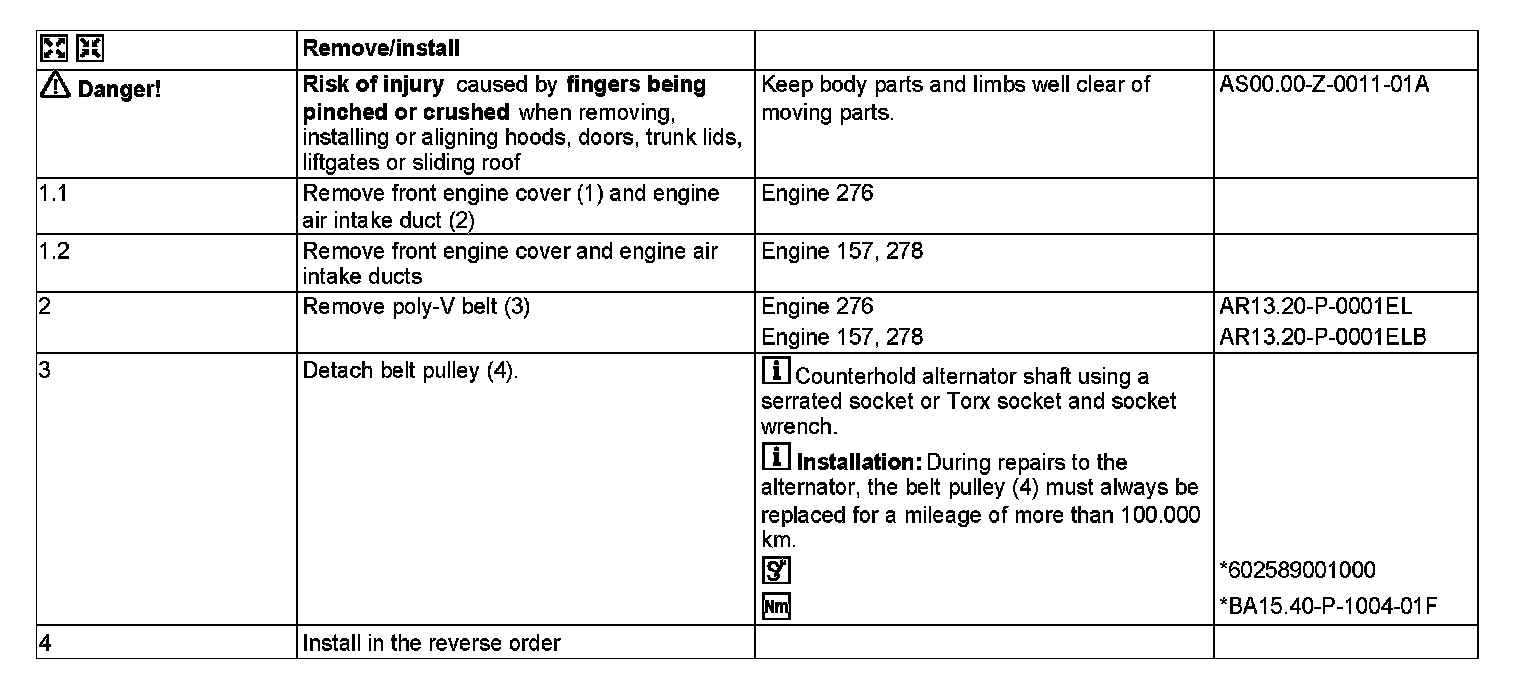

AR15.40-P-5710EL Remove/Install Alternator Belt Pulley
ENGINES 276, 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207

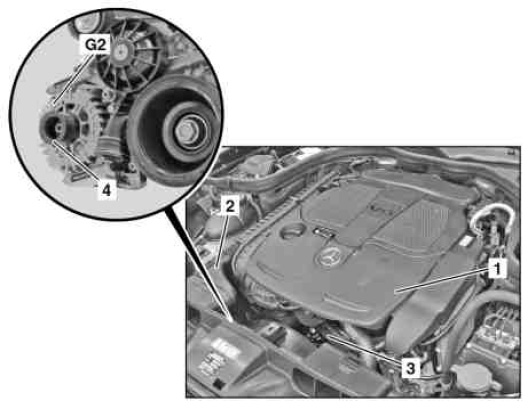

Shown on engine 276

1 Front engine cover
2 Engine air intake duct
3 Poly-V belt
4 Belt pulley











602 589 00 10 00
Socket wrench
