Fuel Rail: Service and Repair

AR07.03-P-1010EL Remove/Install Rail
ENGINES 276 in MODEL 212, 218

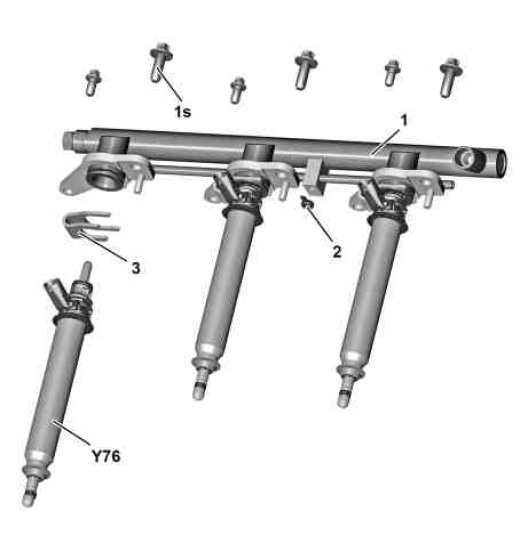

78 Center section of the bulkhead





1 Rail
1s Bolts
2 Gasket
3 Holddown device

Y76 Fuel injectors





1 Rail
1s Bolts

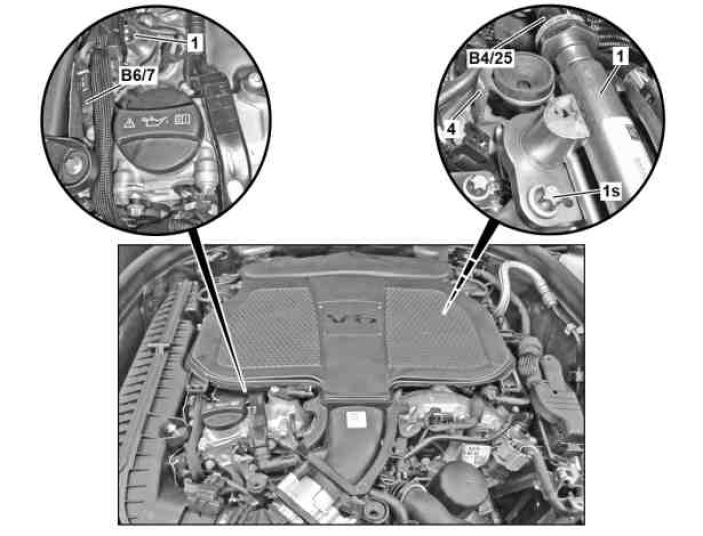

4 Support

B4/25 Fuel pressure and temperature sensor

B6/7 Right exhaust camshaft Hall sensor























278 589 00 15 00
Drift





119 589 04 63 00
Pressure hose





278 589 00 33 00
Puller
