Positive Crankcase Ventilation Valve: Service and Repair

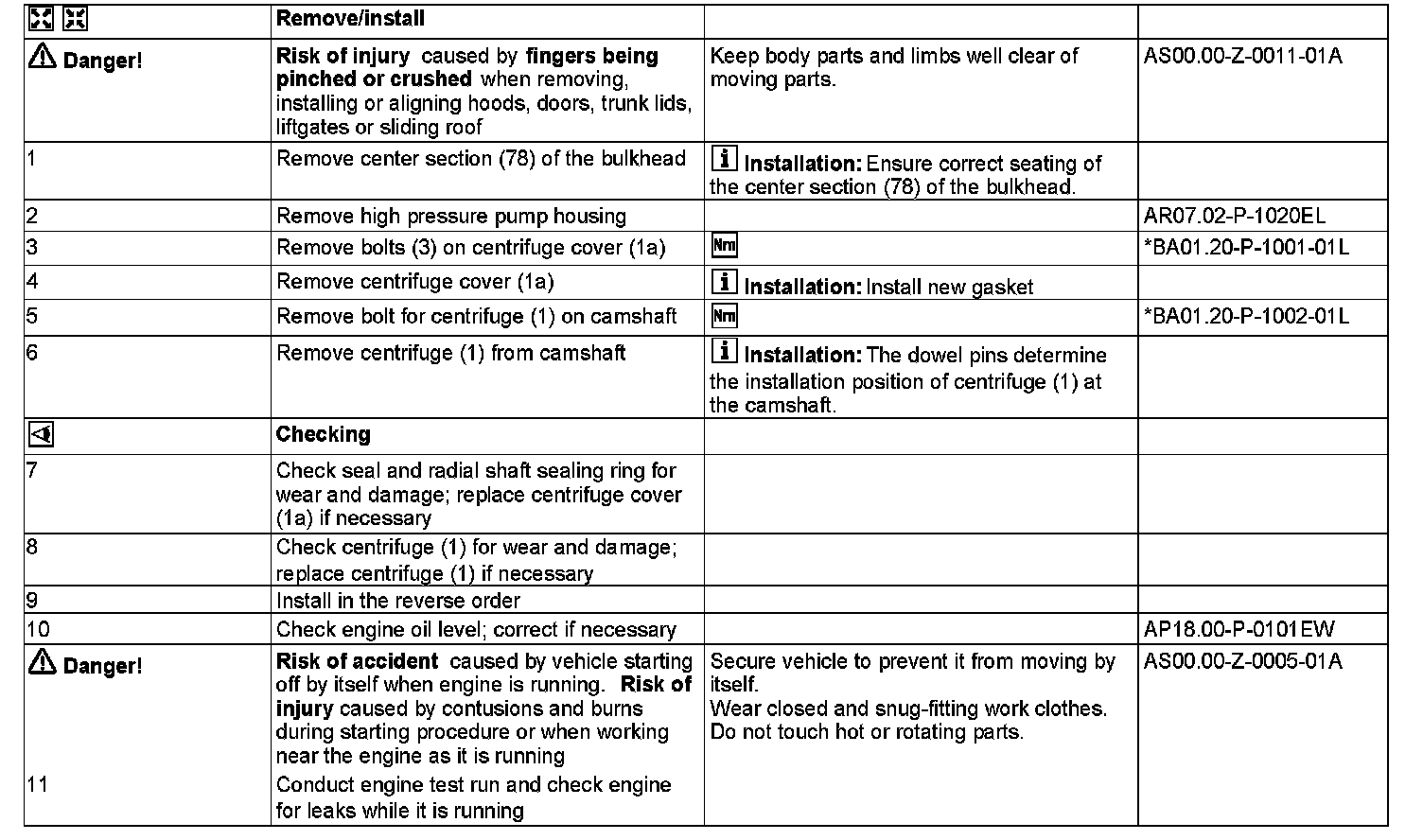

AR01.20-P-2100EL Remove/Install Centrifuge
ENGINES 276 in MODEL 212, 218

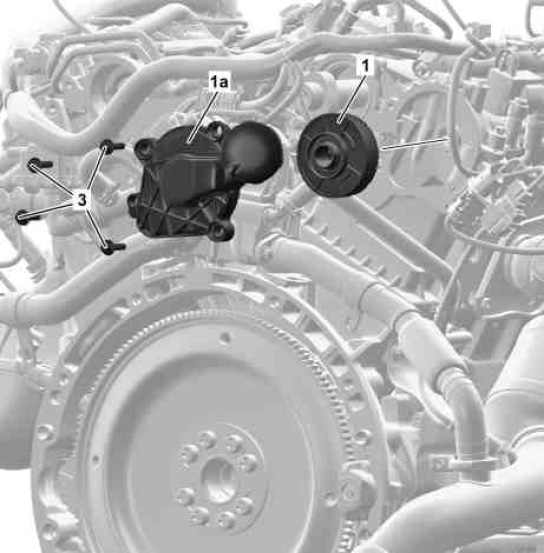

Shows model 218

78 Center section of the bulkhead





1 Centrifuge
1a Centrifuge cover
3 Bolts
