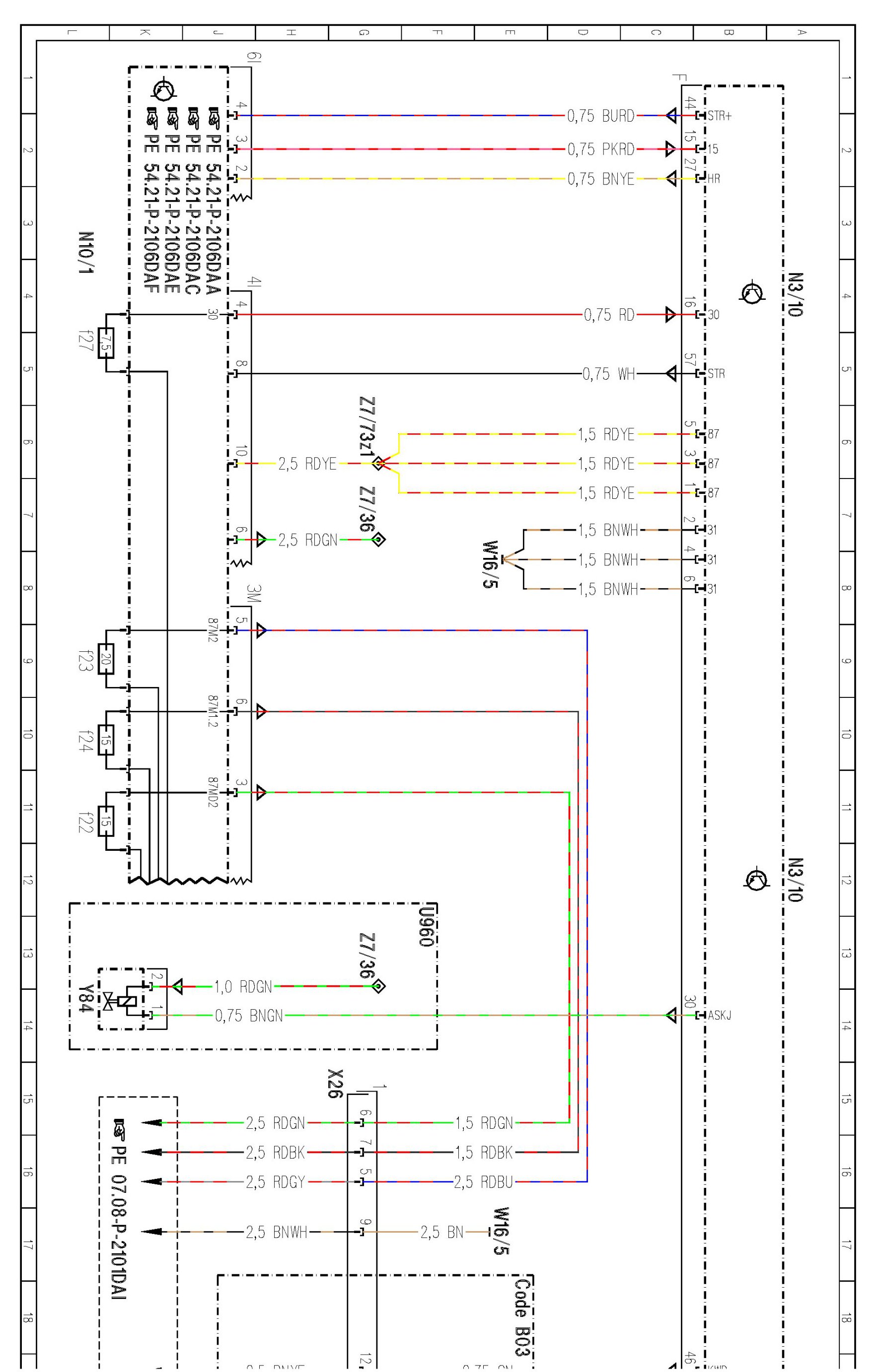

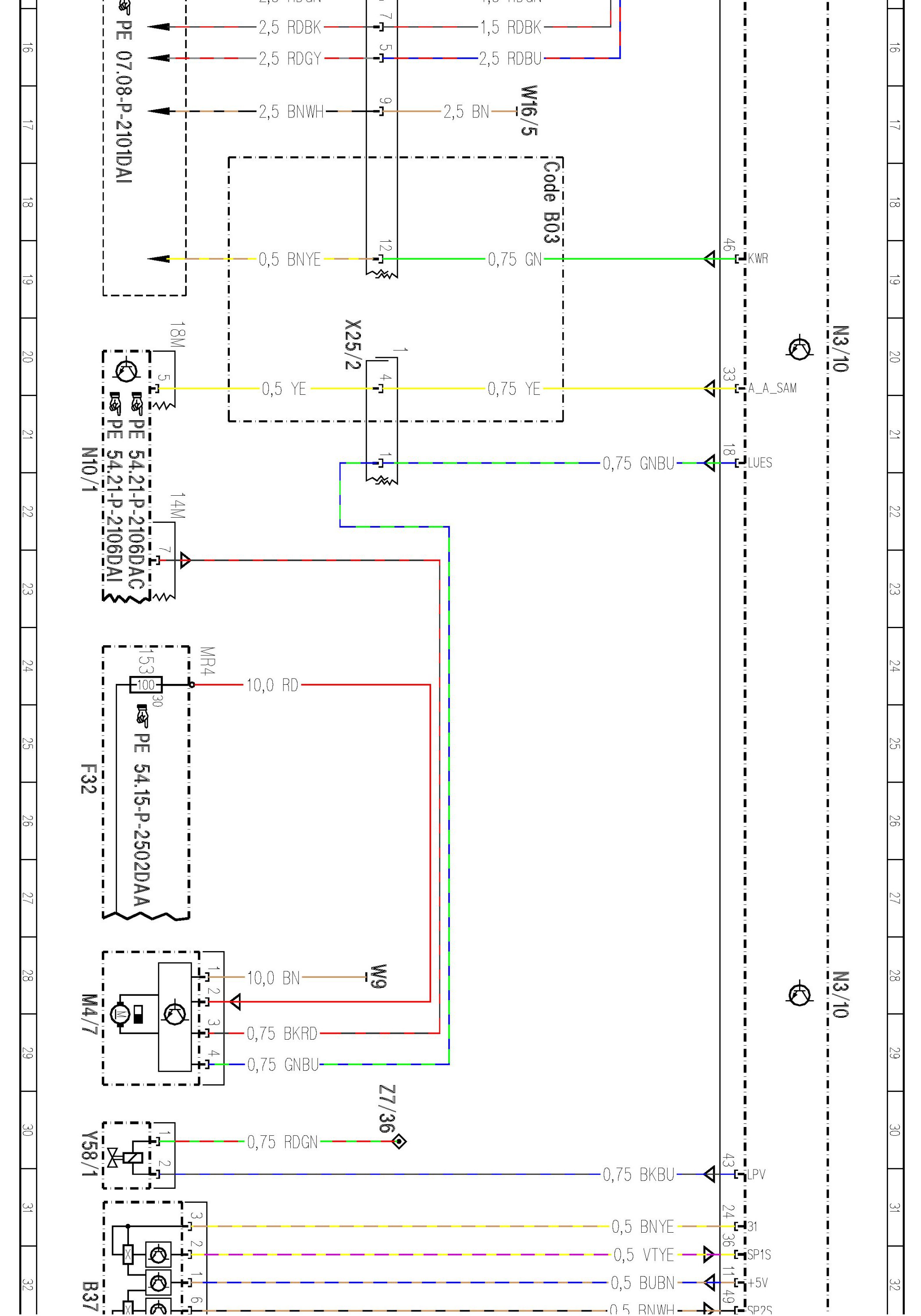

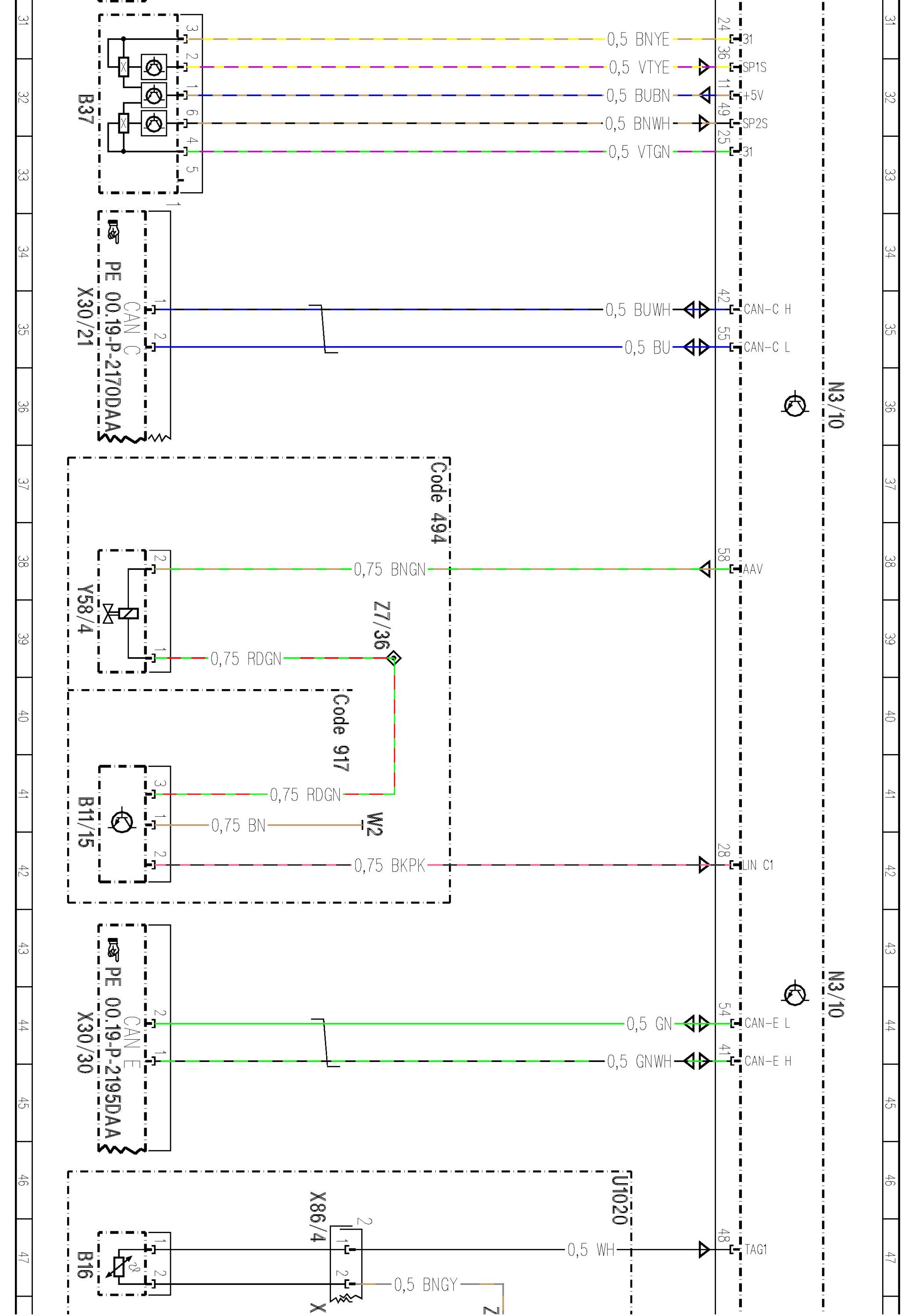

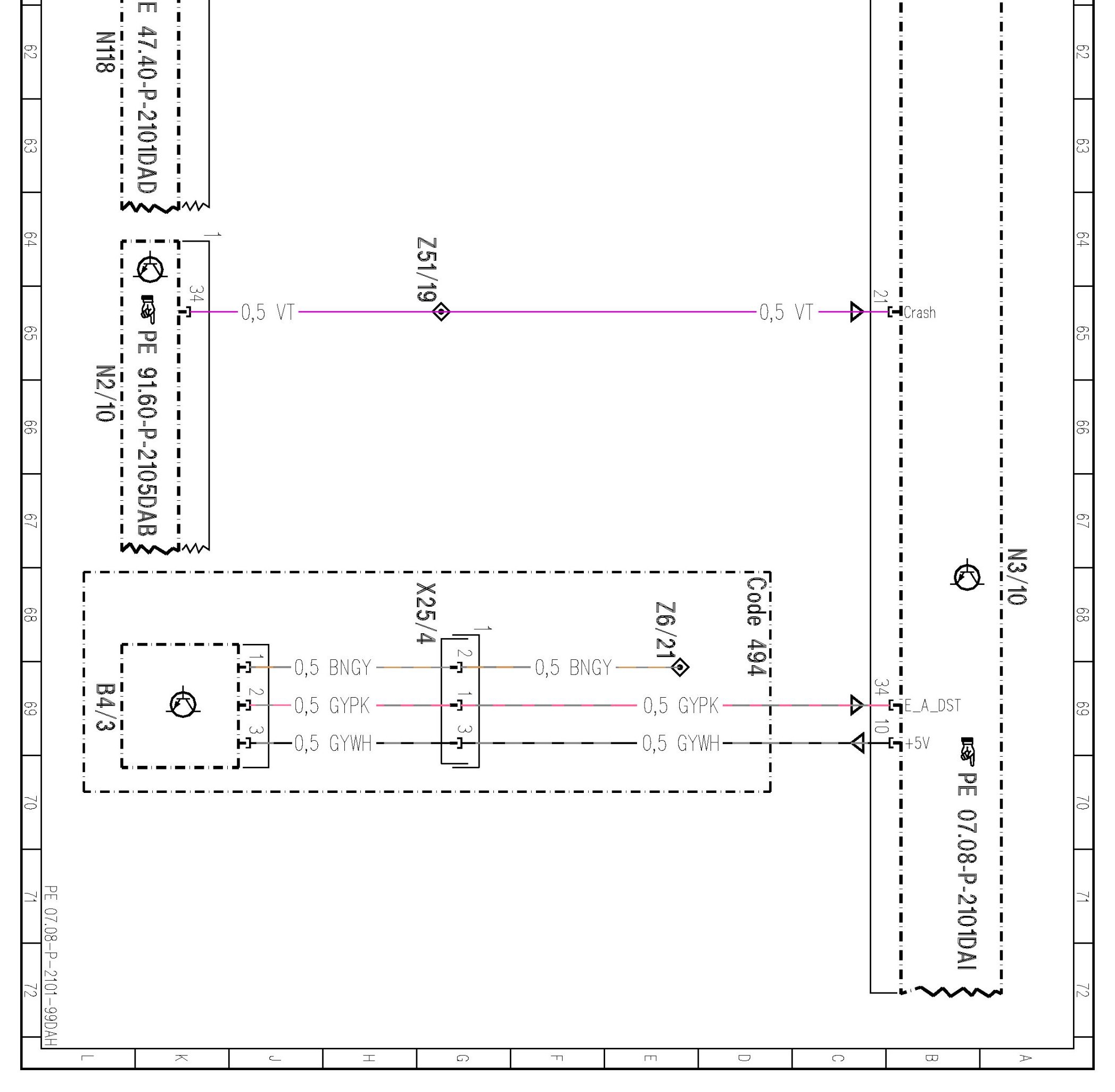

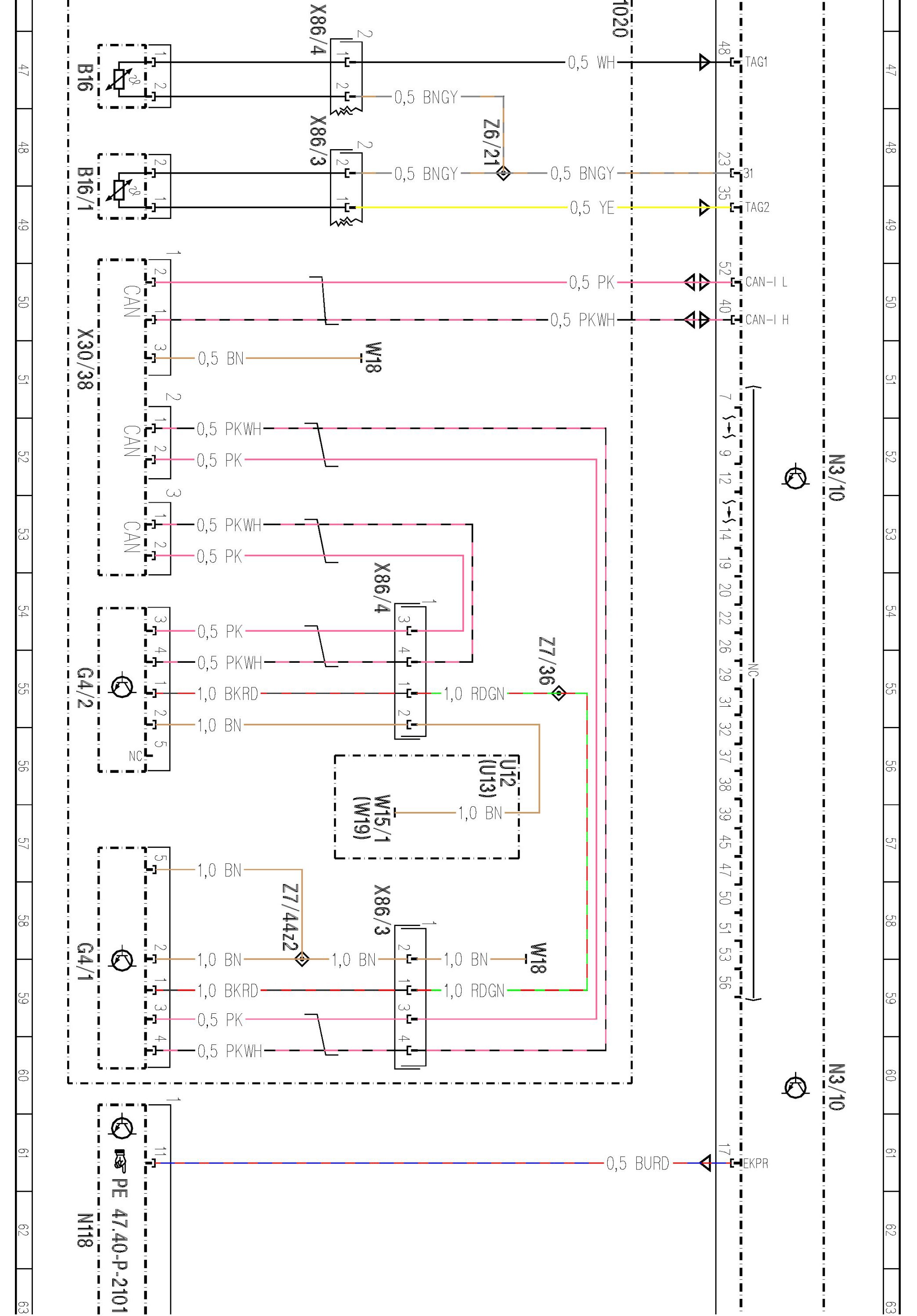

PE07.08-P-2101DAH Gasoline Direct Injection System Control Unit

PE07.08-P-2101DAH Gasoline Direct Injection System Control Unit

ENGINE 276 in MODEL 212 (except 212.095)

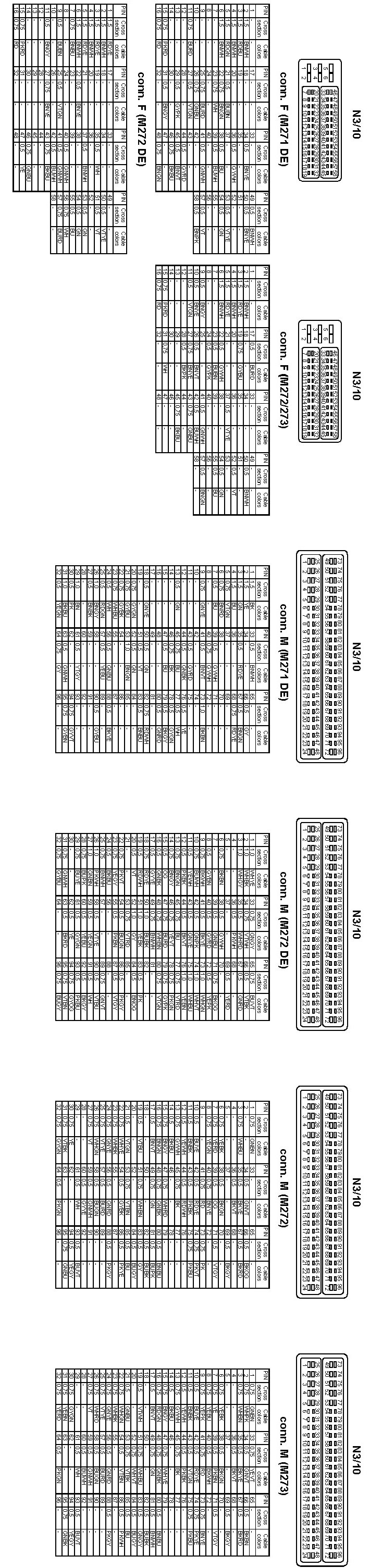

- Control Unit N3/10, Vehicle Connector


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
