Variable Valve Timing Solenoid: Service and Repair

AR05.20-P-7295EL Remove/Install Solenoid Camshaft
ENGINES 276 in MODEL 212, 218

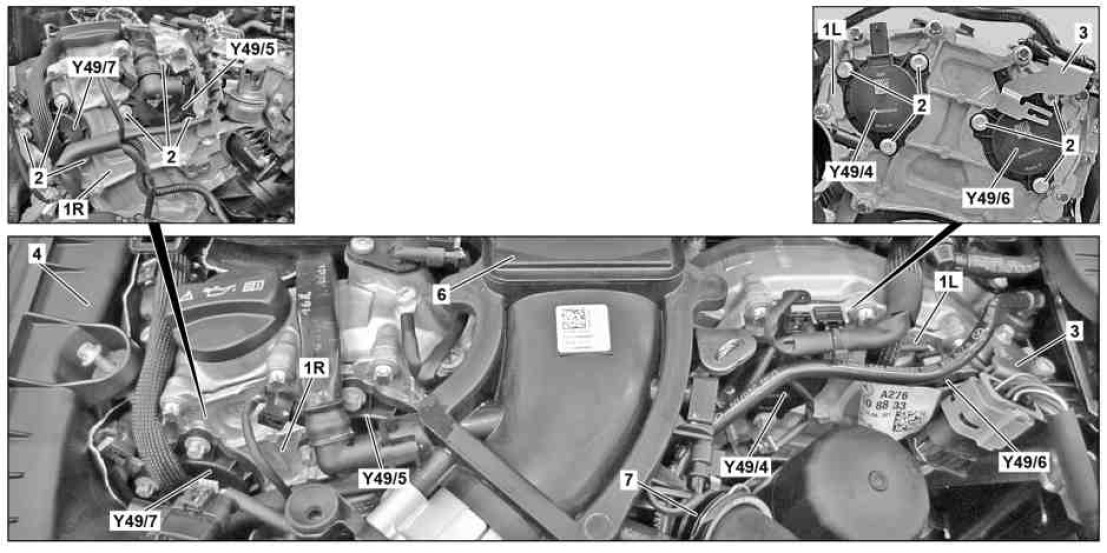

1L Front cover on the left
1R Front cover on the right
2 Bolt
3 Bracket
4 Air cleaner housing
6 Resonance intake manifold
7 Thermostat housing

Y49/4 Left intake camshaft solenoid
Y49/5 Right intake camshaft solenoid
Y49/6 Left exhaust camshaft solenoid
Y49/7 Right exhaust camshaft solenoid
