Variable Valve Timing Actuator: Service and Repair

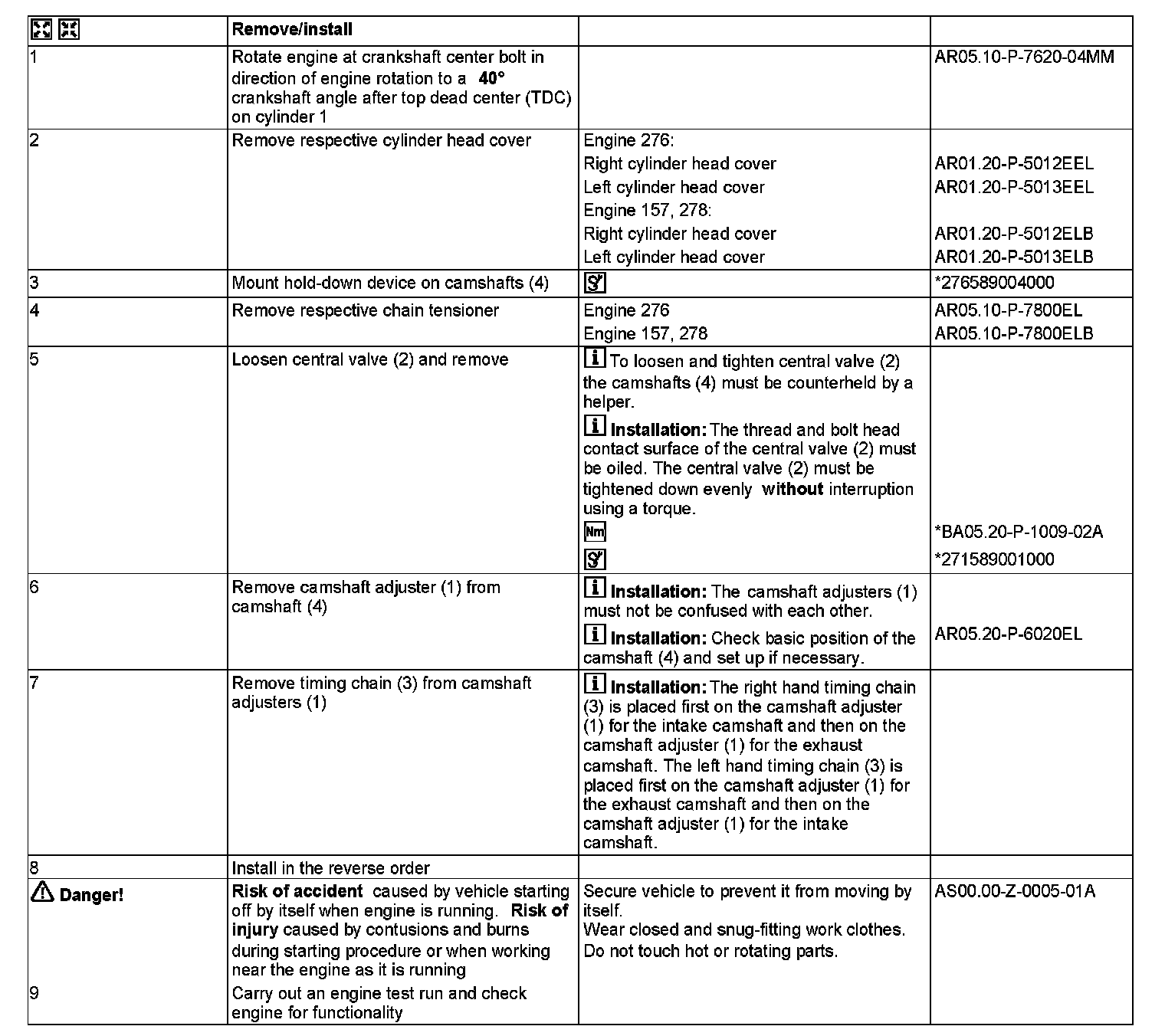

AR05.20-P-7201EL Remove/Install Camshaft Adjusters
ENGINES 157, 276, 278 in MODEL 212, 218

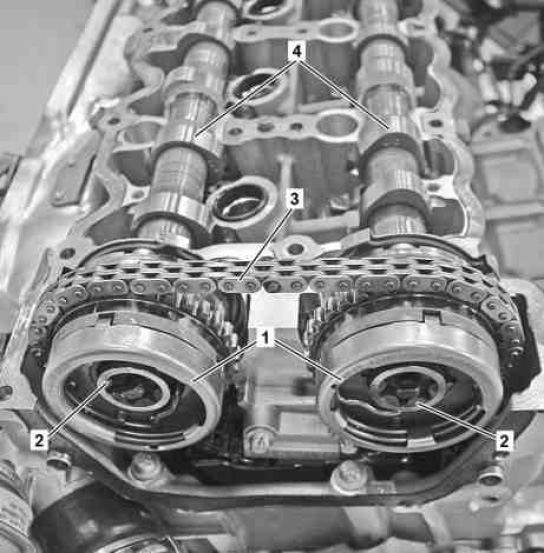

1 Camshaft adjuster
2 Central valve
3 Timing chain
4 Camshafts











271 589 00 10 00
Wrench socket





276 589 00 40 00
Holddown device
