Water Pump: Service and Repair

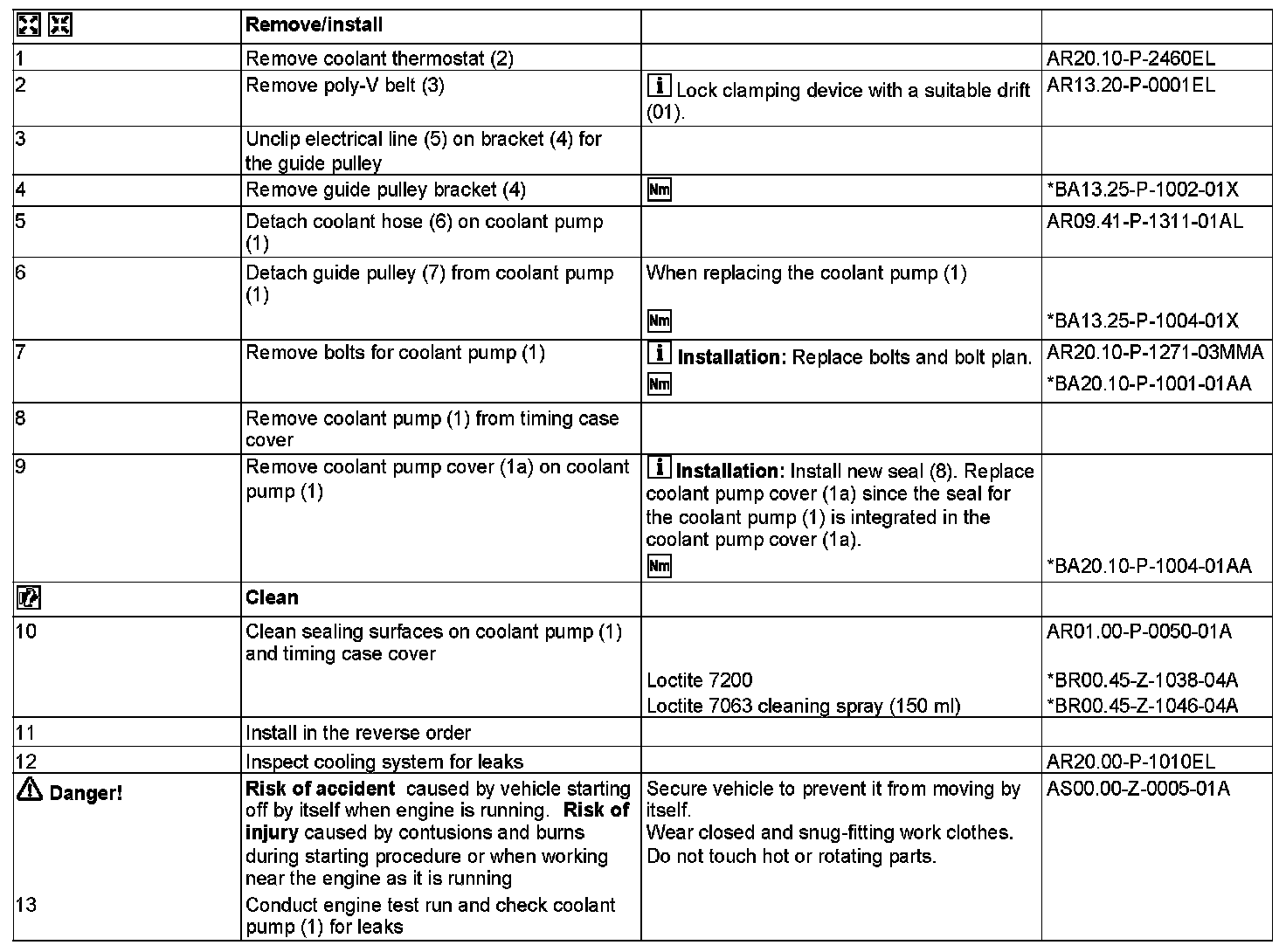

AR20.10-P-1271EL Remove/Install Coolant Pump
ENGINES 276 in MODEL 212, 218

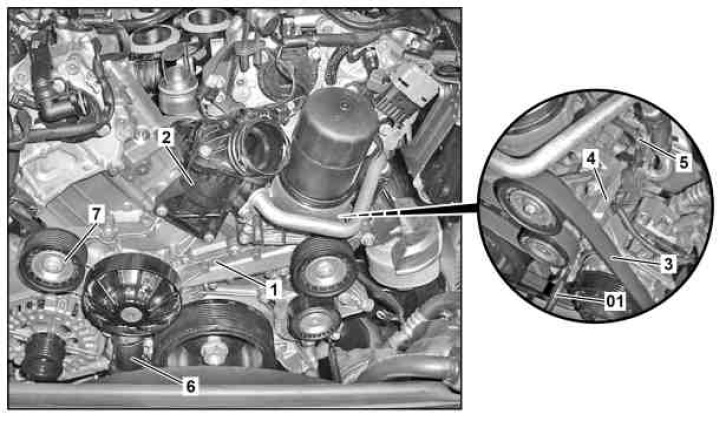

01 Drift
1 Coolant pump
2 Coolant thermostat
3 Poly-V-belt
4 Bracket
5 Electrical line
6 Coolant hose
7 Pulley

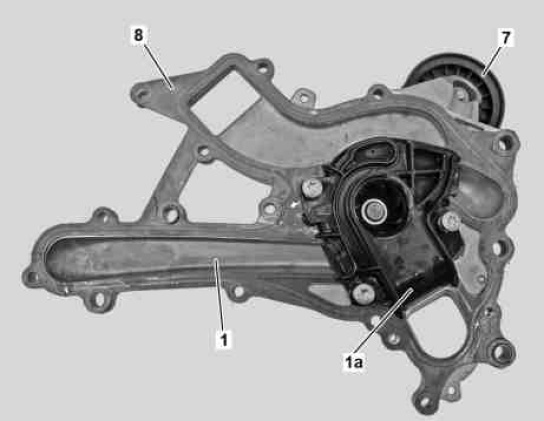

1 Coolant pump
1a Coolant pump cover
7 Pulley
8 Gasket
