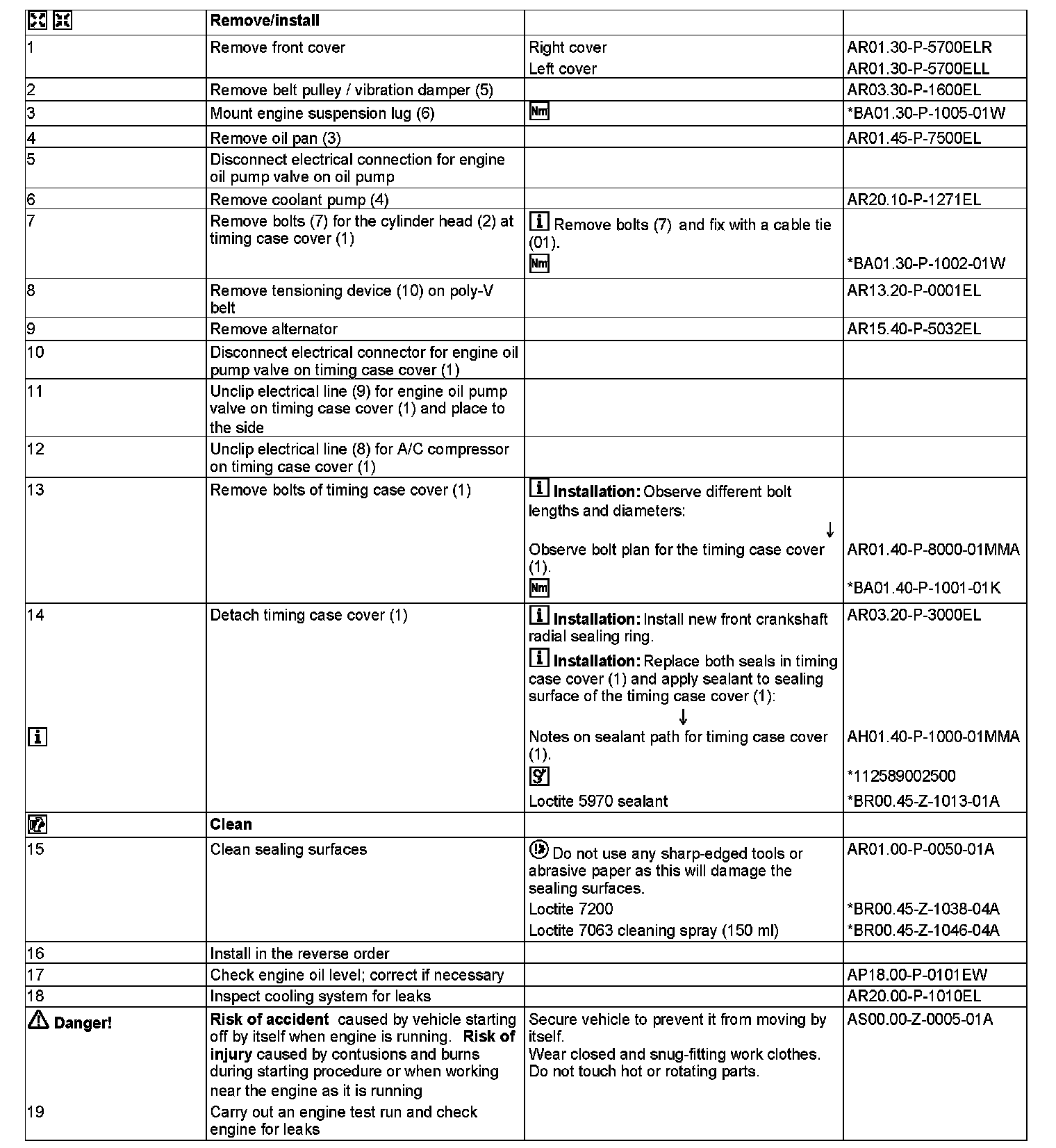

AR01.40-P-8000EL Remove/Install Timing Case Cover

AR01.40-P-8000EL Remove/Install Timing Case Cover
ENGINES 276 in MODEL 212, 218
without 4MATIC

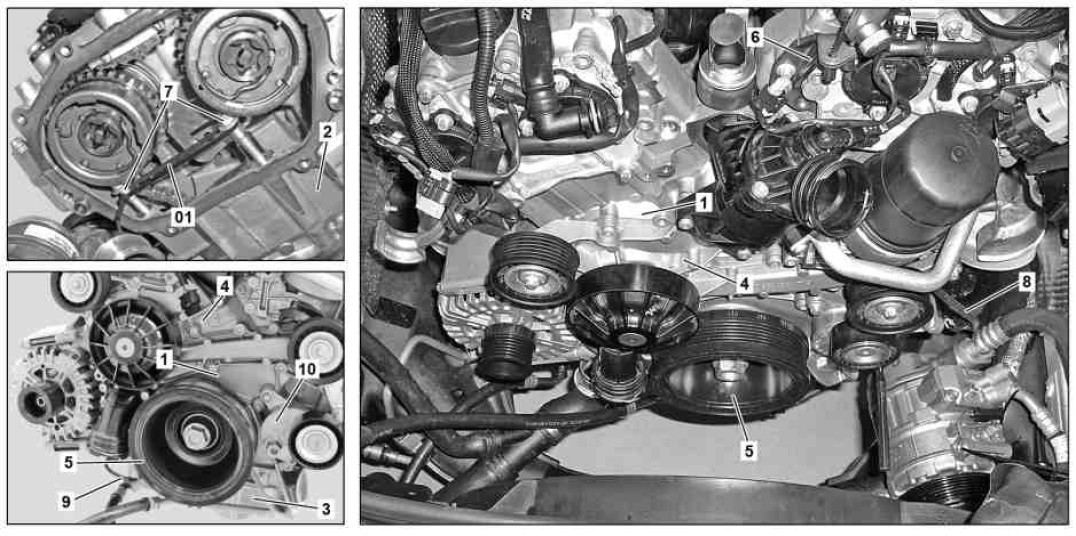

01 Cable tie
1 Timing case cover
2 Cylinder head
3 Oil pan
4 Coolant pump
5 Belt pulley/vibration damper
6 Engine suspension lug
7 Bolts
8 Electrical line
9 Electrical line
10 Tensioning device














112 589 00 25 00
Squeeze gun
