AR01.30-P-5700ELR Remove/Install Front Cover on Cylinder Head

AR01.30-P-5700ELR Remove/Install Front Cover On Cylinder Head
ENGINES 276 in MODEL 212, 218

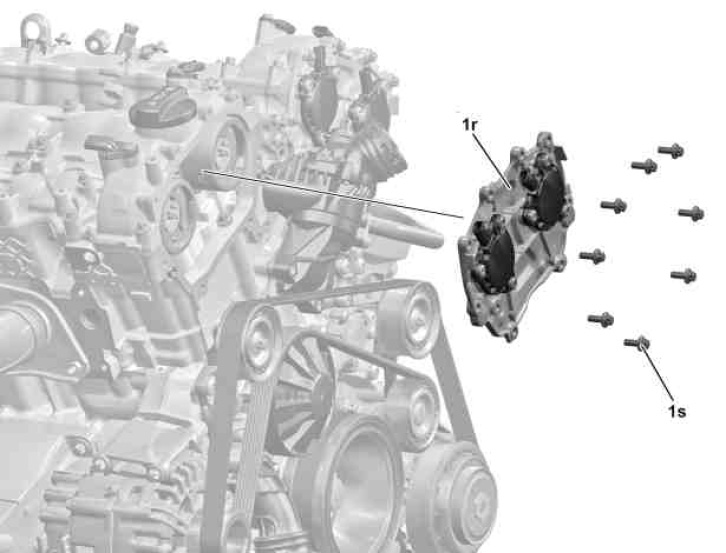

On right cylinder head





1r Front cover
1s Bolts





2 Crankcase ventilation
2d Gasket
3 Engine wiring harness
4 Electrical line

Y49/5 Right intake camshaft solenoid
Y49/7 Right exhaust camshaft solenoid











112 589 00 25 00
Squeeze gun
