AR01.30-P-5700ELL Remove/Install Front Cover on Cylinder Head

AR01.30-P-5700ELL Remove/Install Front Cover On Cylinder Head
ENGINES 276 in MODEL 212, 218
On left cylinder head

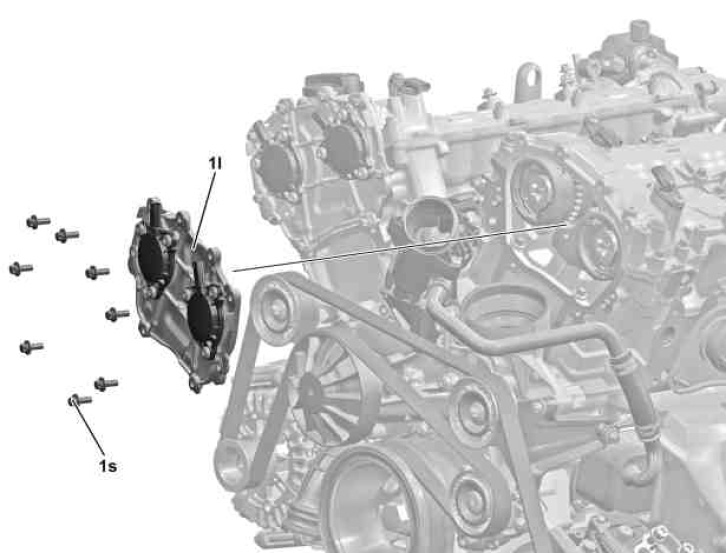

1l Front cover
1s Bolts





2 Bracket
3 Crankcase ventilation
4 Electrical line
5 Engine suspension lug
6 Bracket

Y49/4 Left intake camshaft solenoid
Y49/6 Left exhaust camshaft solenoid




















103 589 02 09 00
Wrench socket





112 589 00 25 00
Squeeze gun
