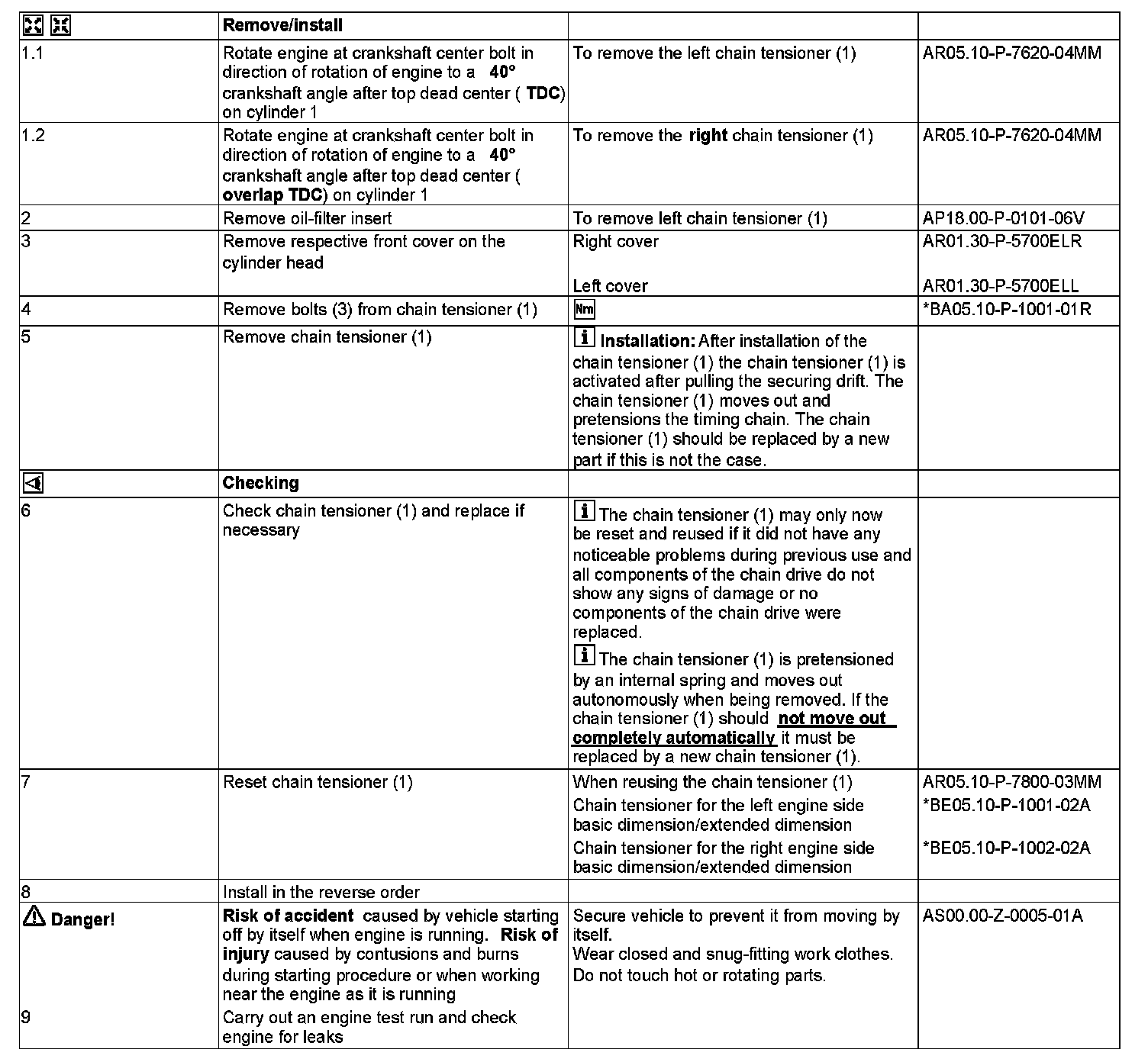

AR05.10-P-7800EL Remove/Install Chain Tensioner




AR05.10-P-7800EL Remove/Install Chain Tensioner
ENGINES 276 in MODEL 212, 218

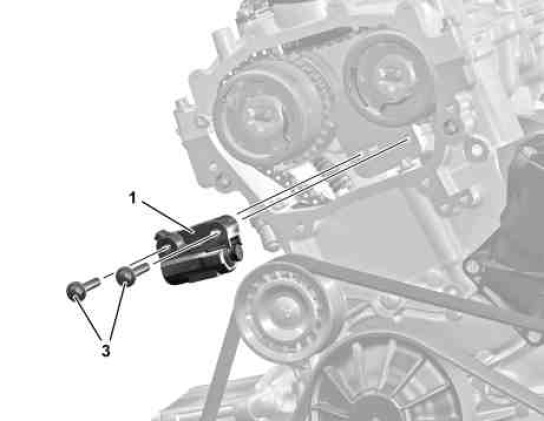

Shown on right chain tensioner

1 Chain tensioner
3 Bolts
