Timing Chain Guide: Service and Repair

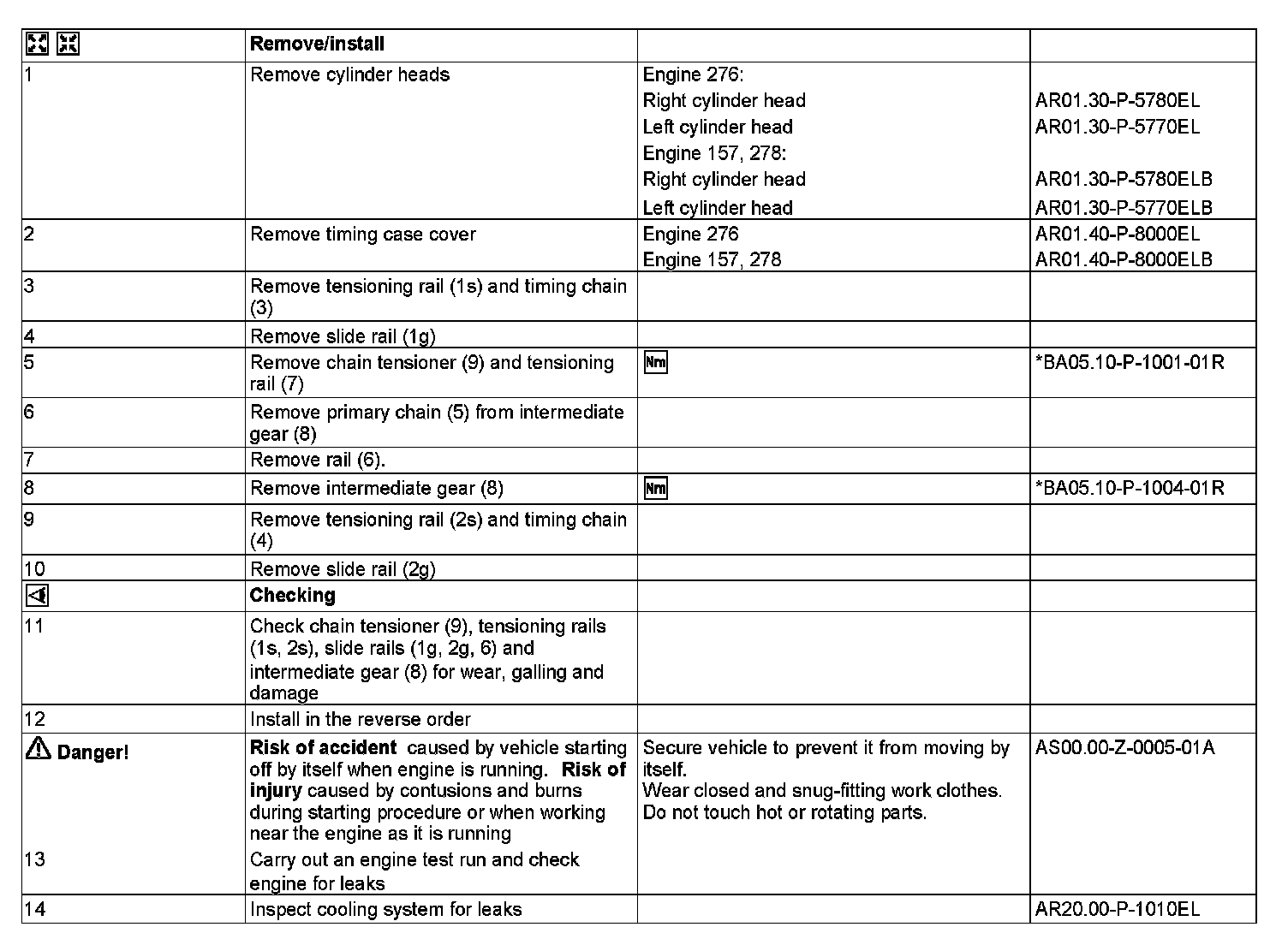

AR05.10-P-8127EL Remove/Install Tensioning Rail
ENGINES 157, 276, 278 in MODEL 212, 218

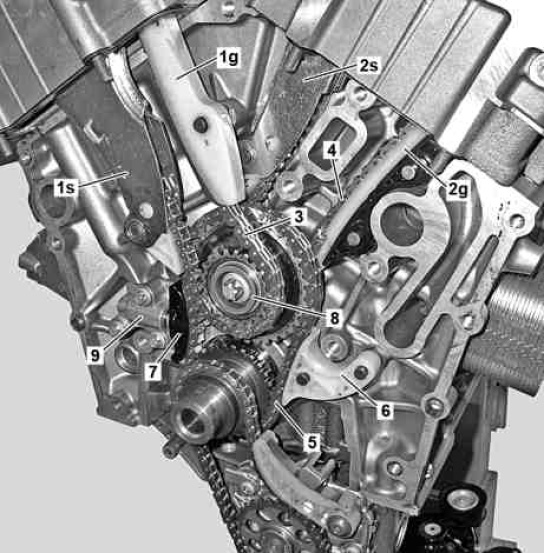

1g Slide rail
1s Tensioning rail
2g Slide rail
2s Tensioning rail
3 Timing chain
4 Timing chain
5 Primary chain
6 Slide rail
7 Tensioning rail
8 Intermediate gear
9 Chain tensioner
