AR01.10-P-2500ELB Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500ELB Remove/Install Engine With Front Axle Carrier
ENGINES 157, 278 in MODEL 212, 218
ENGINES 276 in MODEL 212.08 /28
ENGINES 278 in MODEL 207





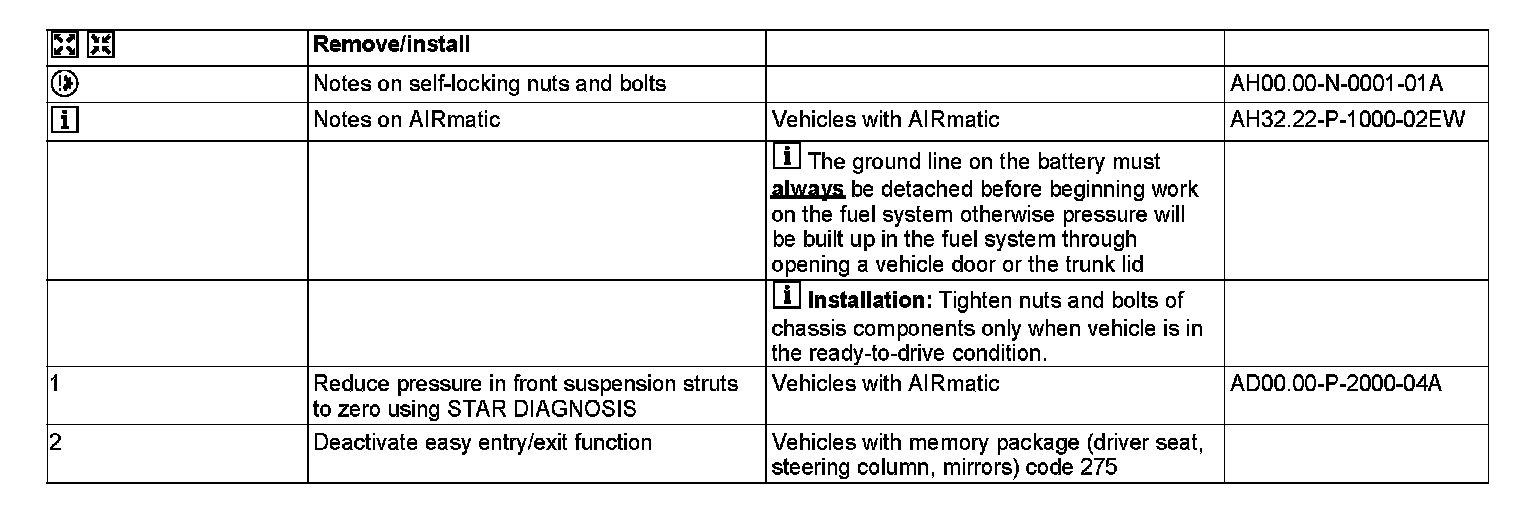

Shows model 212.073

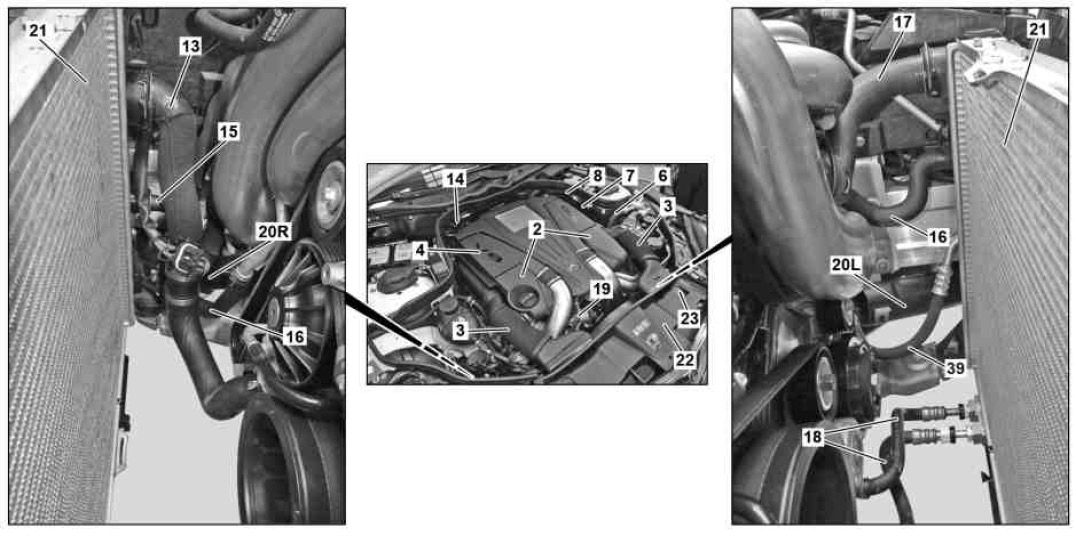

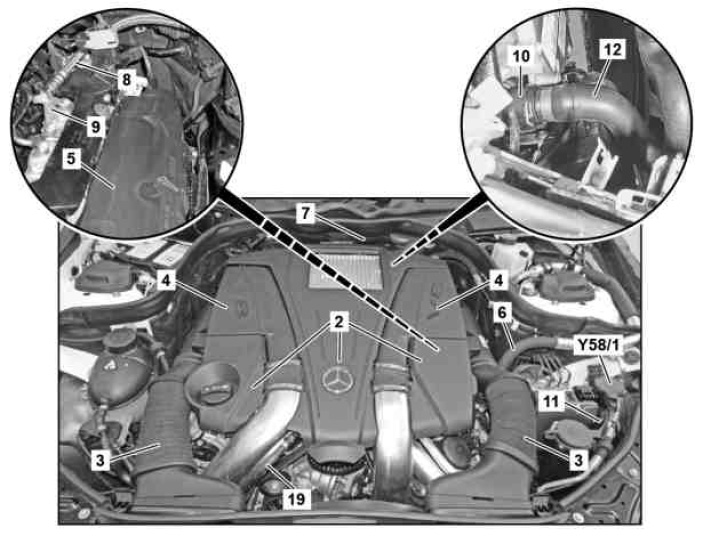

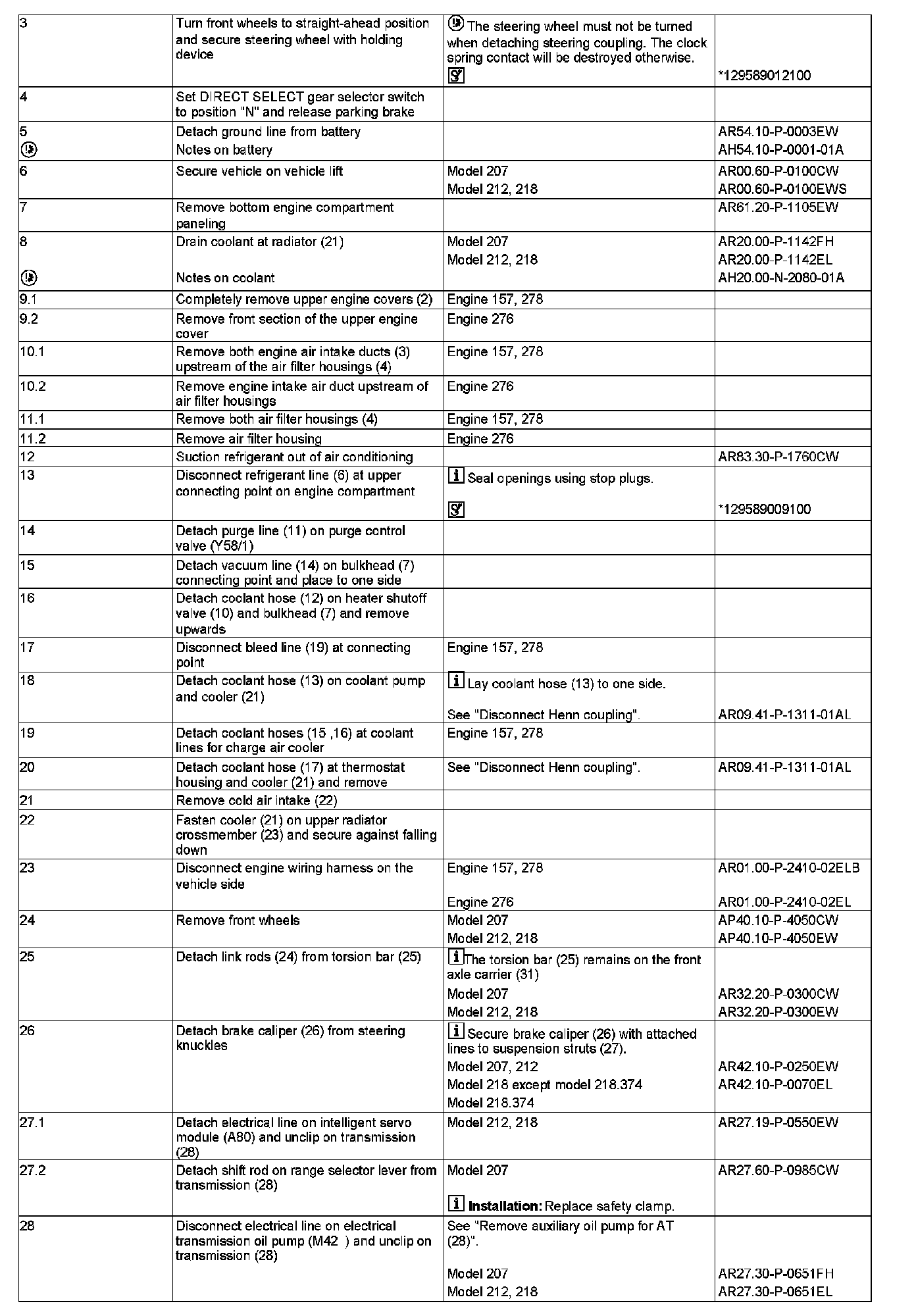

2 Engine cover
3 Engine air intake duct
4 Air cleaner housing
5 Insulation
6 Refrigerant line
7 Bulkhead

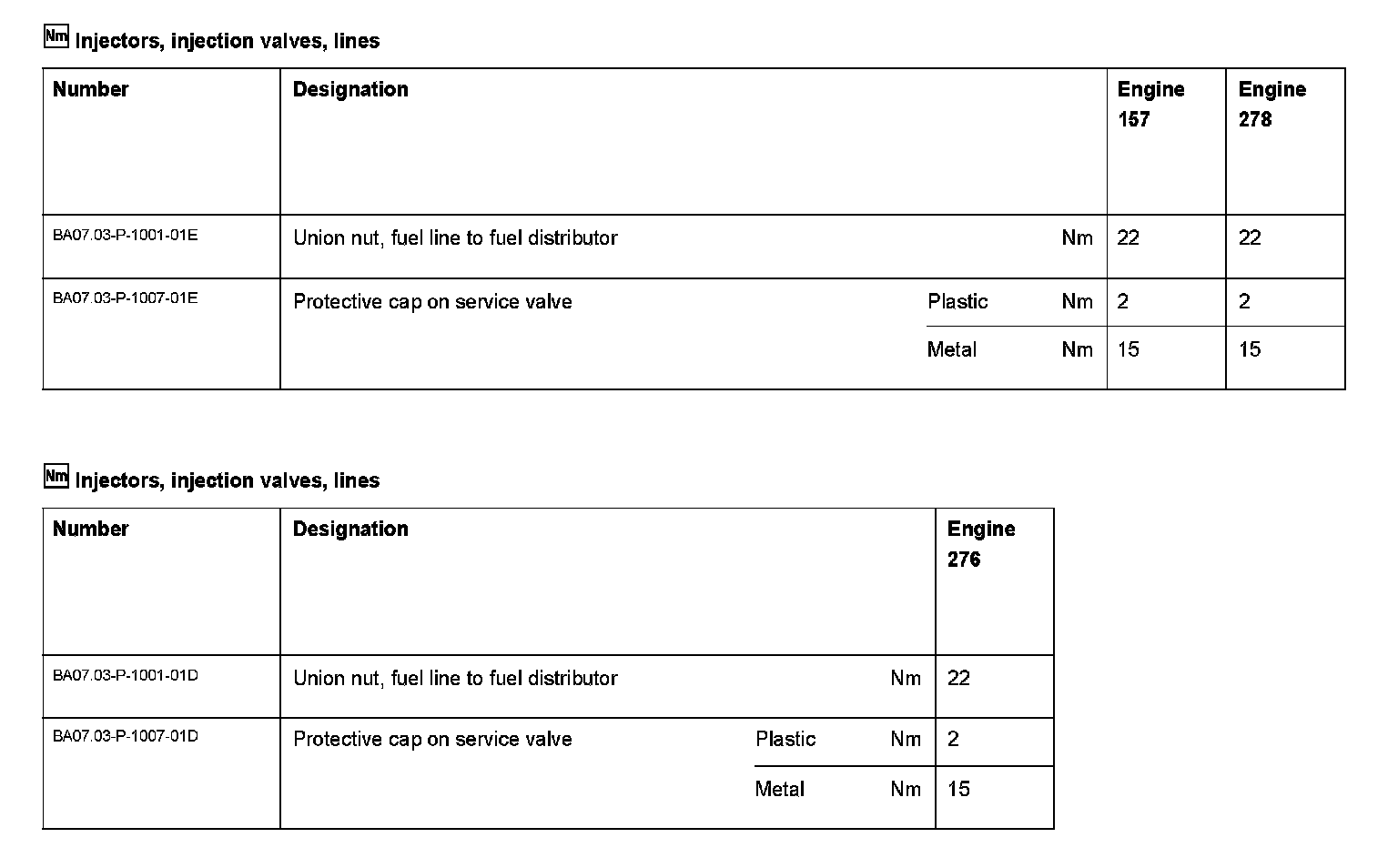

8 Fuel line
9 Fuel distributor
10 Heater shutoff valve
11 Purge line
12 Coolant hose

Y58/1 Purge control valve





Shown on model 212.073

2 Engine cover
3 Engine air intake duct
4 Air cleaner housing
6 Refrigerant line
7 Bulkhead
8 Fuel line
14 Vacuum line
15 Coolant hose
16 Coolant hose
17 Coolant hose
18 Oil cooling lines
20L Cooling air line
20R Cooling air line
21 Radiator
22 Cold air intake
23 Radiator crossmember
39 Refrigerant line





Shows model 212.073

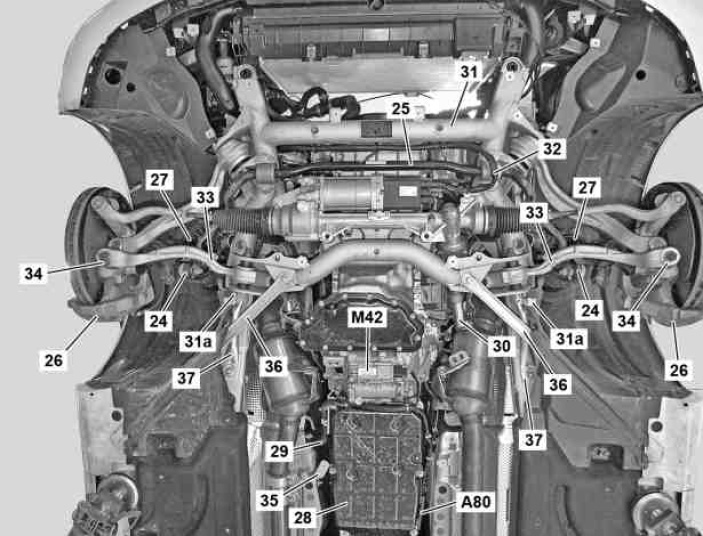

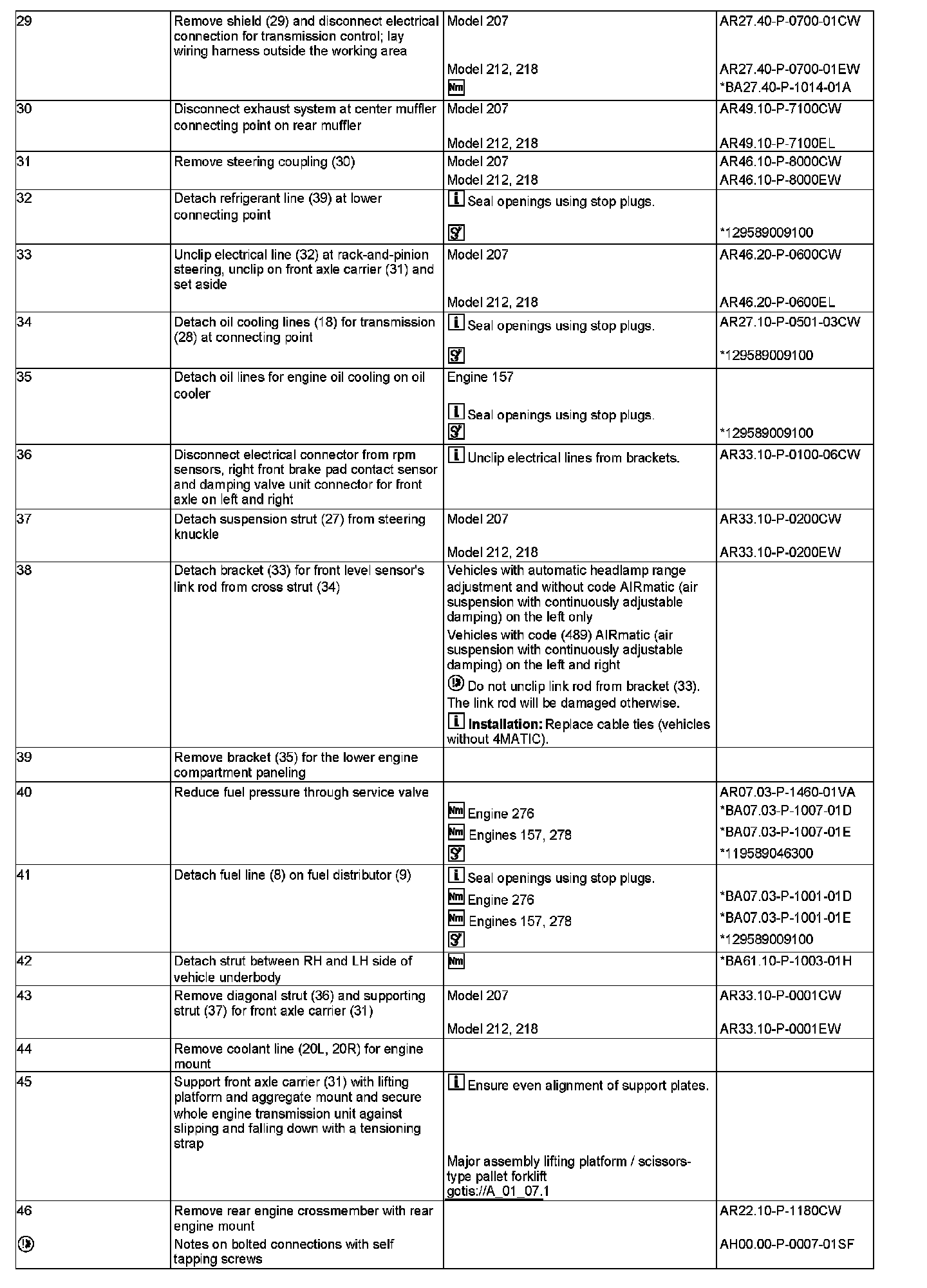

24 Link rod
25 Stabilizer bar
26 Brake caliper
27 Suspension strut

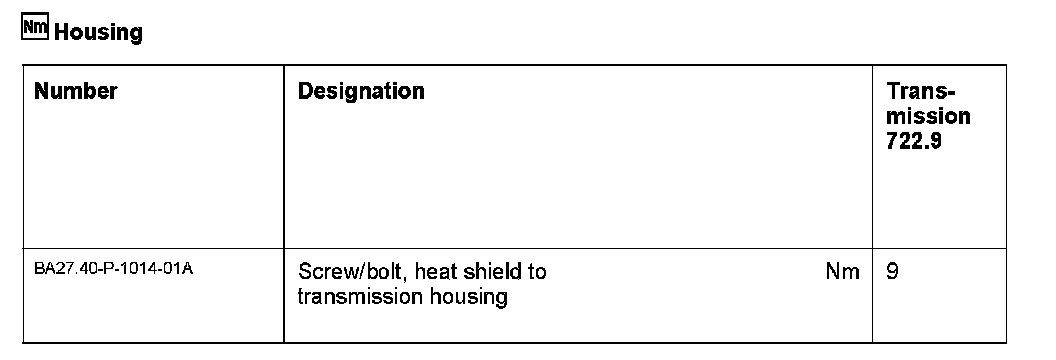

28 Transmission
29 Wiring harness
30 Steering coupling
31 Front axle carrier
32 Electrical line
33 Bracket

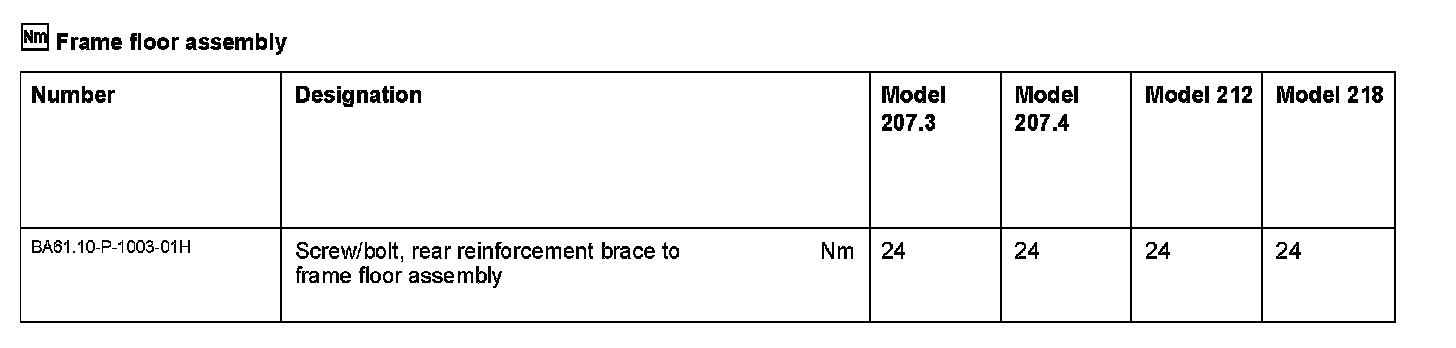

34 Cross strut
35 Bracket
36 Diagonal strut
37 Supporting strut

A80 Intelligent servo module for DIRECT SELECT
M42 Electric transmission oil pump

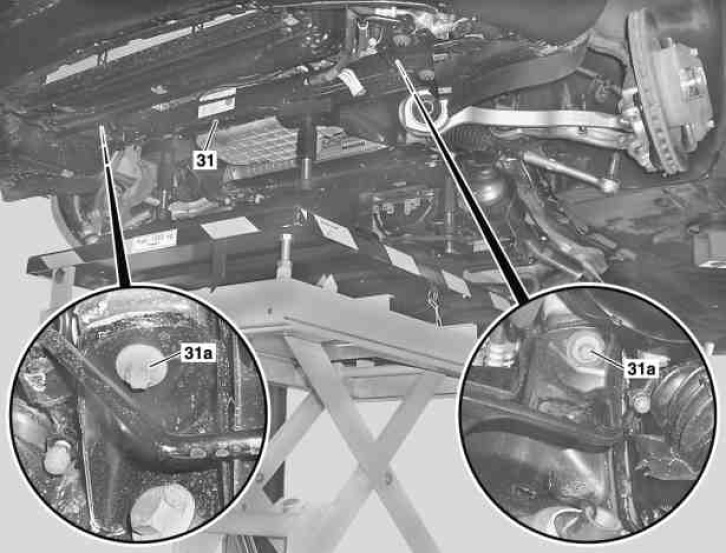

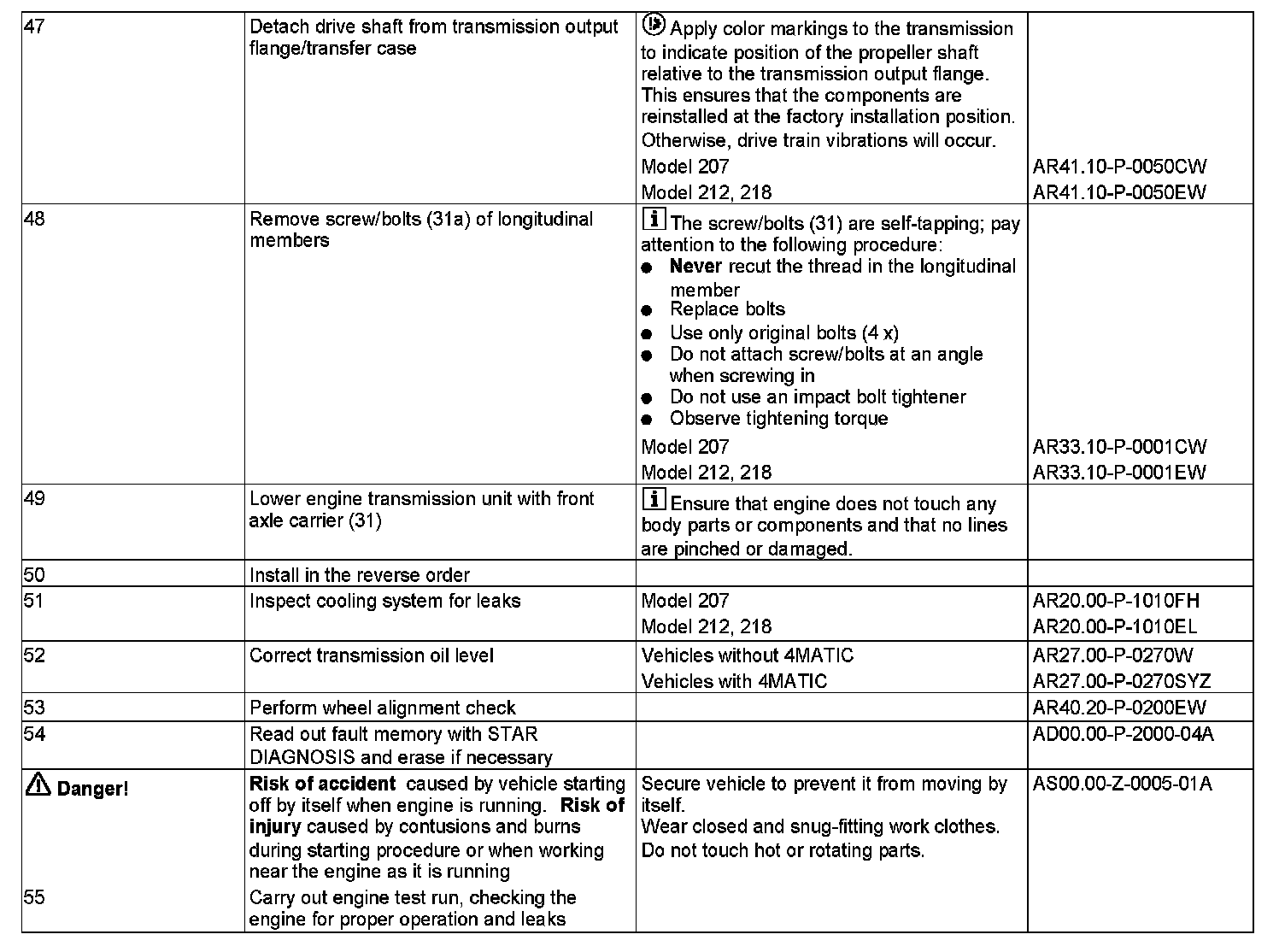

31 Front axle carrier
31a Screw/bolts


























129 589 01 21 00
Holding device





119 589 04 63 00
Pressure hose





129 589 00 91 00
Set of stop plugs
