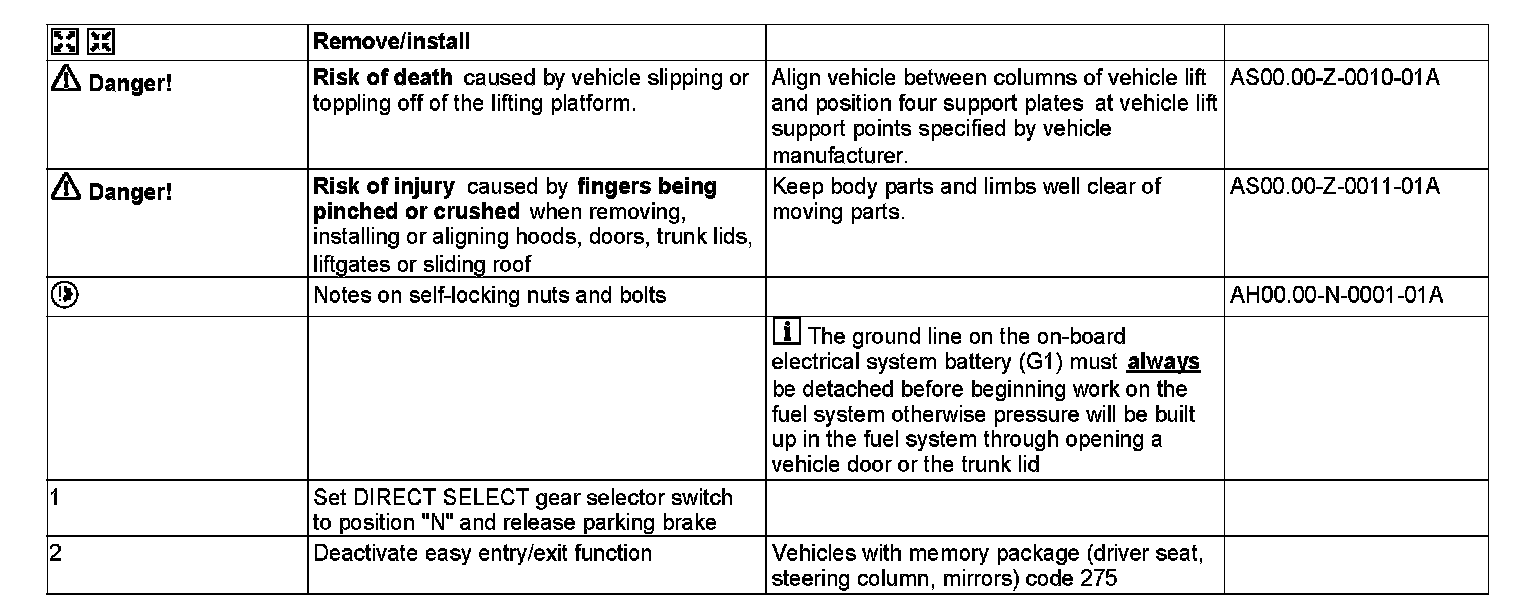

AR01.10-P-2401EL Remove/Install Engine With Transmission

AR01.10-P-2401EL Remove/Install Engine With Transmission
ENGINES 276 in MODEL 212, 218
without 4MATIC

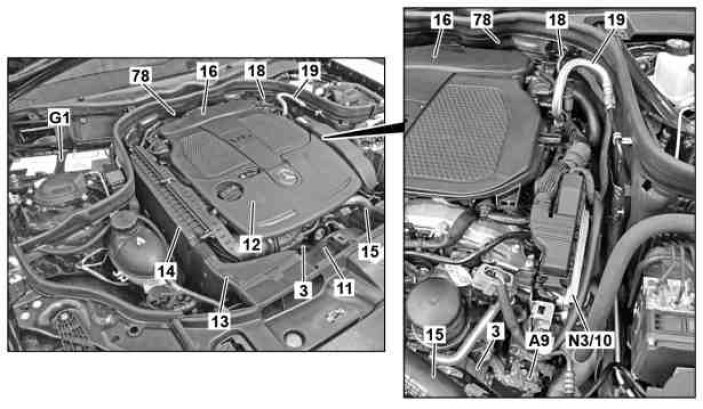

3 Poly-V belt
11 Fan unit
12 Front engine cover
13 Engine intake air duct upstream of the air filter
14 Air filter
15 Coolant hose
16 Resonance intake manifold
18 Vacuum line
19 Fuel line
78 Bulkhead

A9 A/C compressor
G1 On-board electrical system battery
N3/10 ME-SFI [ME] control unit

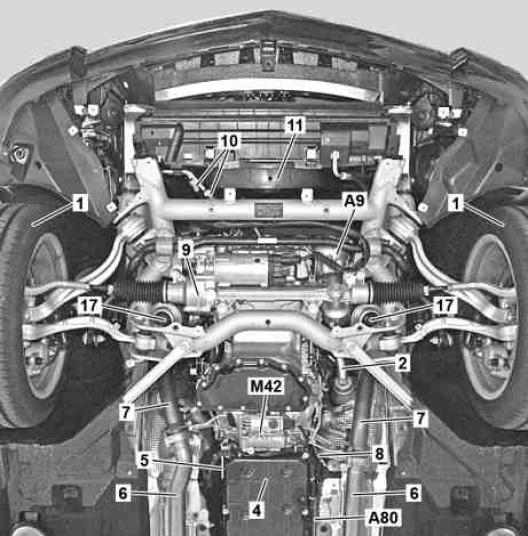

1 Front tires
2 Steering coupling
4 Transmission
5 Shield
6 NOx catalytic converters
7 Catalytic converters
8 Ground cable
9 Rack-and-pinion steering
10 Oil cooling lines
11 Fan unit
17 Engine mount

A9 A/C compressor
A80 Intelligent servo module for DIRECT SELECT
M42 Electric transmission oil pump





























129 589 01 21 00
Holding device





129 589 00 91 00
Set of stop plugs





119 589 04 63 00
Pressure hose





276 589 00 62 00
Adaptation
