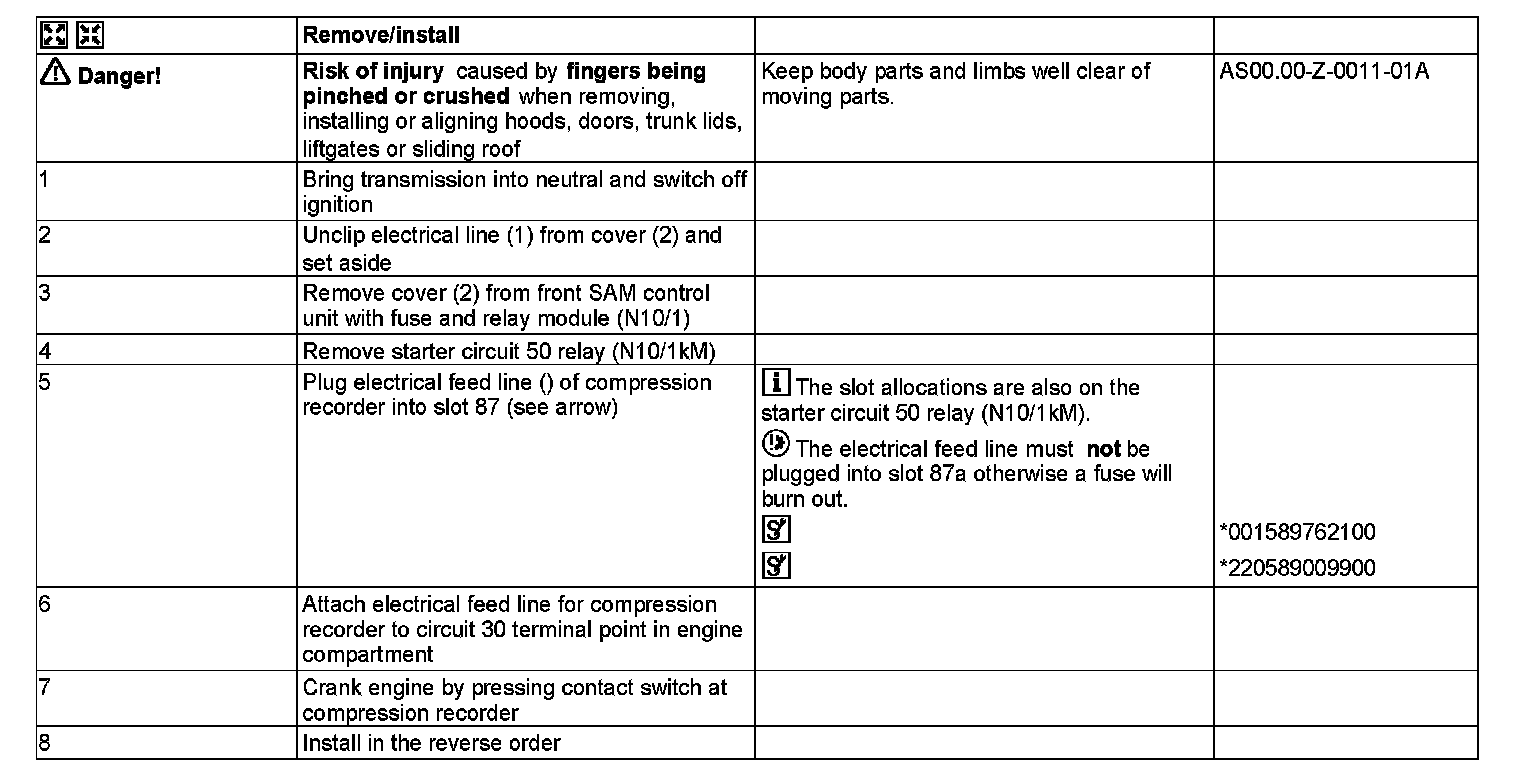

AR01.10-P-0110EL Crank Engine With Starter




AR01.10-P-0110EL Crank Engine With Starter
ENGINES 157, 276, 278 in MODEL 212, 218

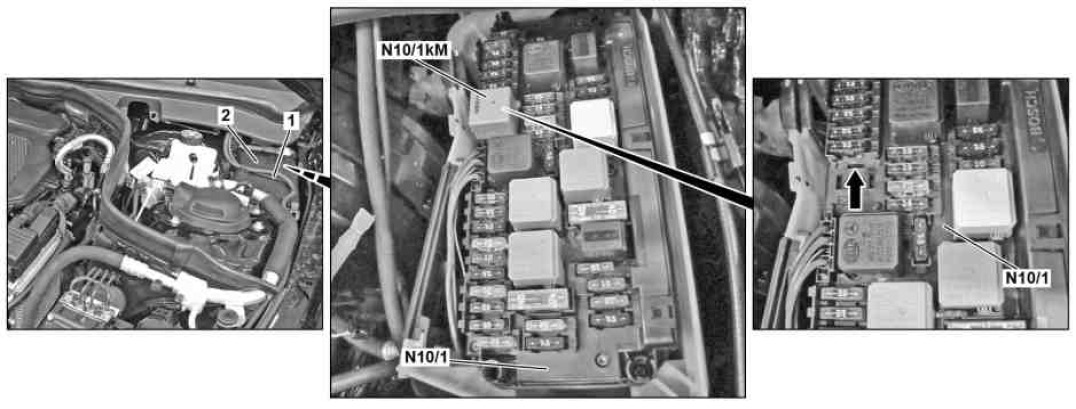

1 Electrical line
2 Cover for the front SAM control unit with fuse and relay module

N10/1 Front SAM control unit with fuse and relay module
N10/1kM Starter circuit 50 relay








001 589 76 21 00
Compression tester





220 589 00 99 00
Electrical connection kit
