Rear Crankshaft Main Bearing Seal: Service and Repair

AR03.20-P-3063EL Replace Rear Crankshaft Radial Sealing Ring
ENGINES 157, 276, 278 in MODEL 212, 218

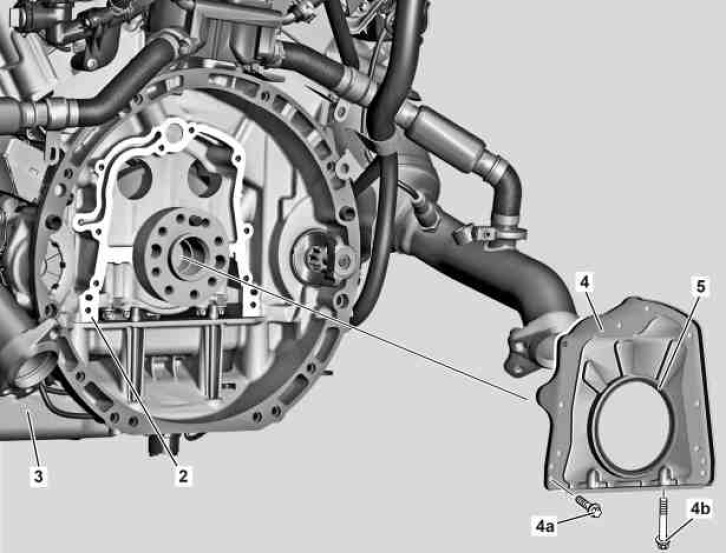

2 Cylinder crankcase
3 Oil pan
4 End cover
4a Screw
4b Screw
5 Crankshaft radial seal

















273 589 00 43 00
Insertion tool
