AR18.10-P-2000EL Remove/Install the Tensioning Device For the Oil Pump Chain




AR18.10-P-2000EL Remove/Install The Tensioning Device For The Oil Pump Chain
ENGINES 157, 276, 278 in MODEL 212, 218

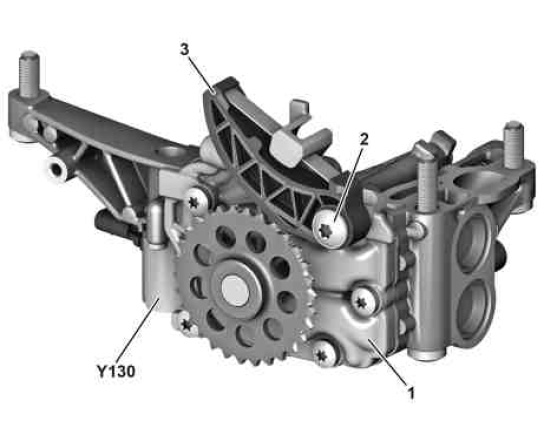

1 Oil pump
2 Screw
3 Oil pump chain tensioning device
