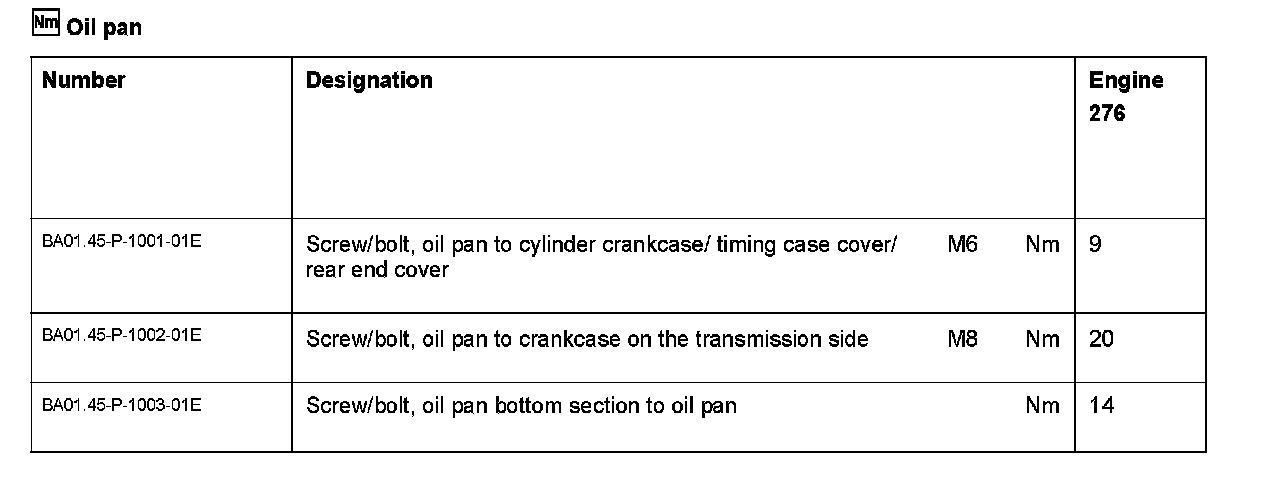

Oil Pan: Service and Repair

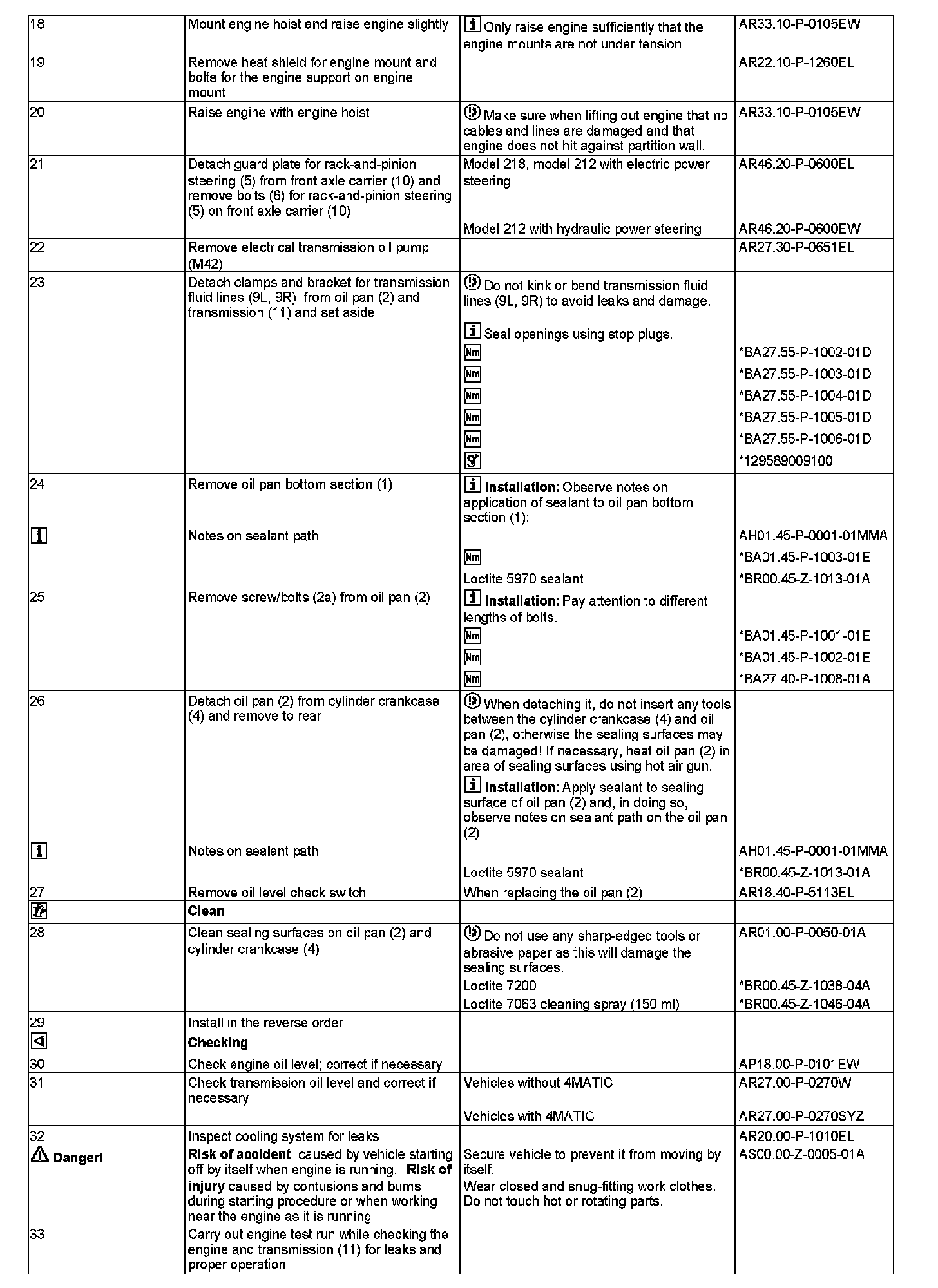

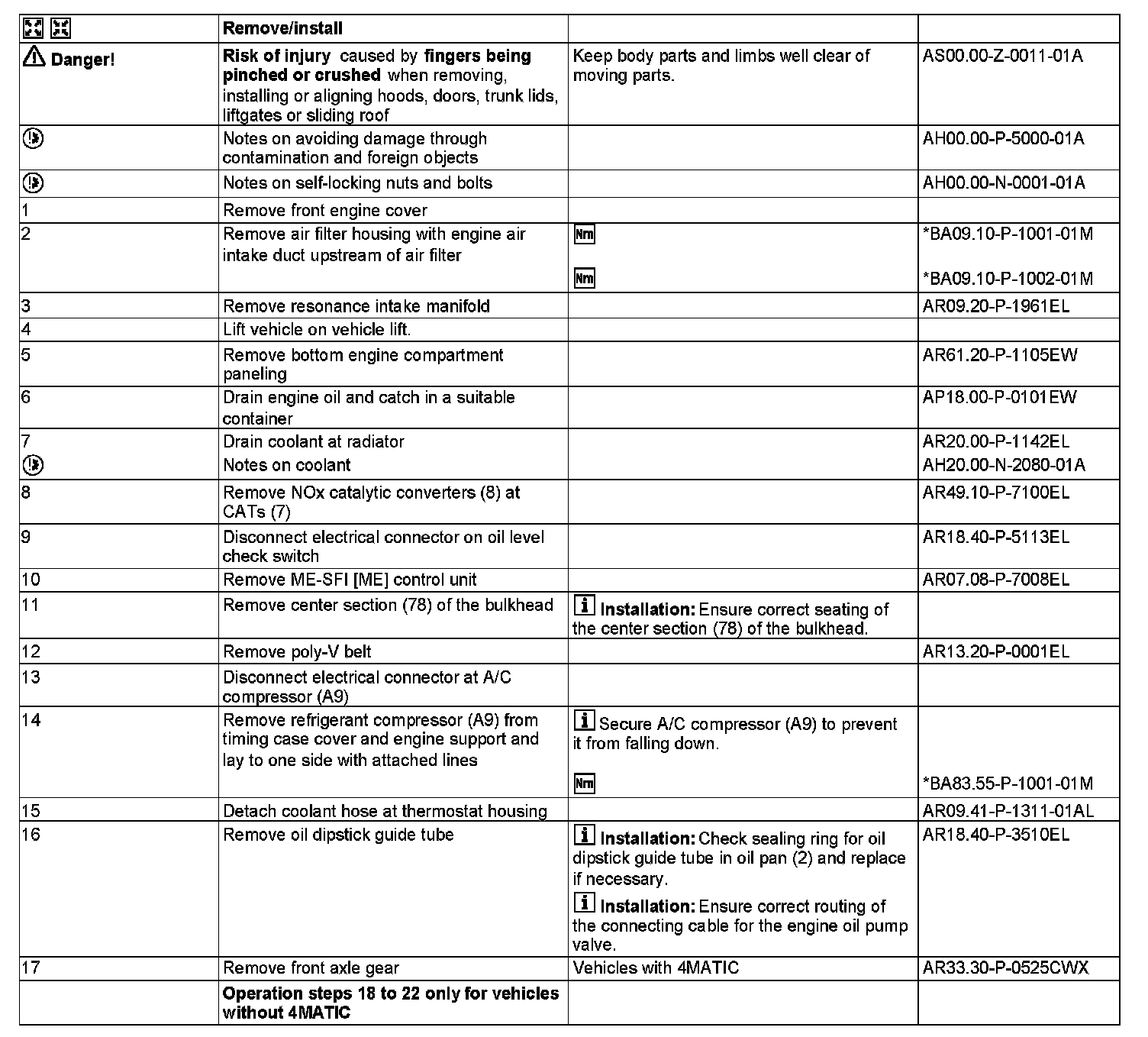

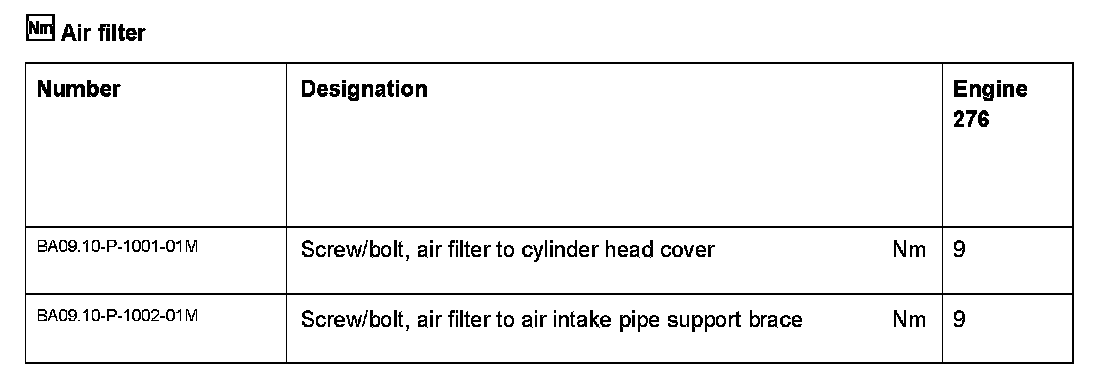

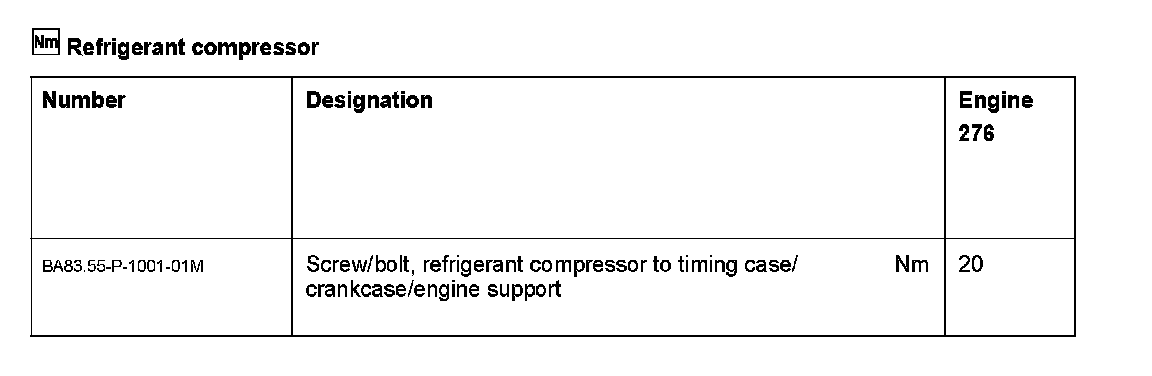

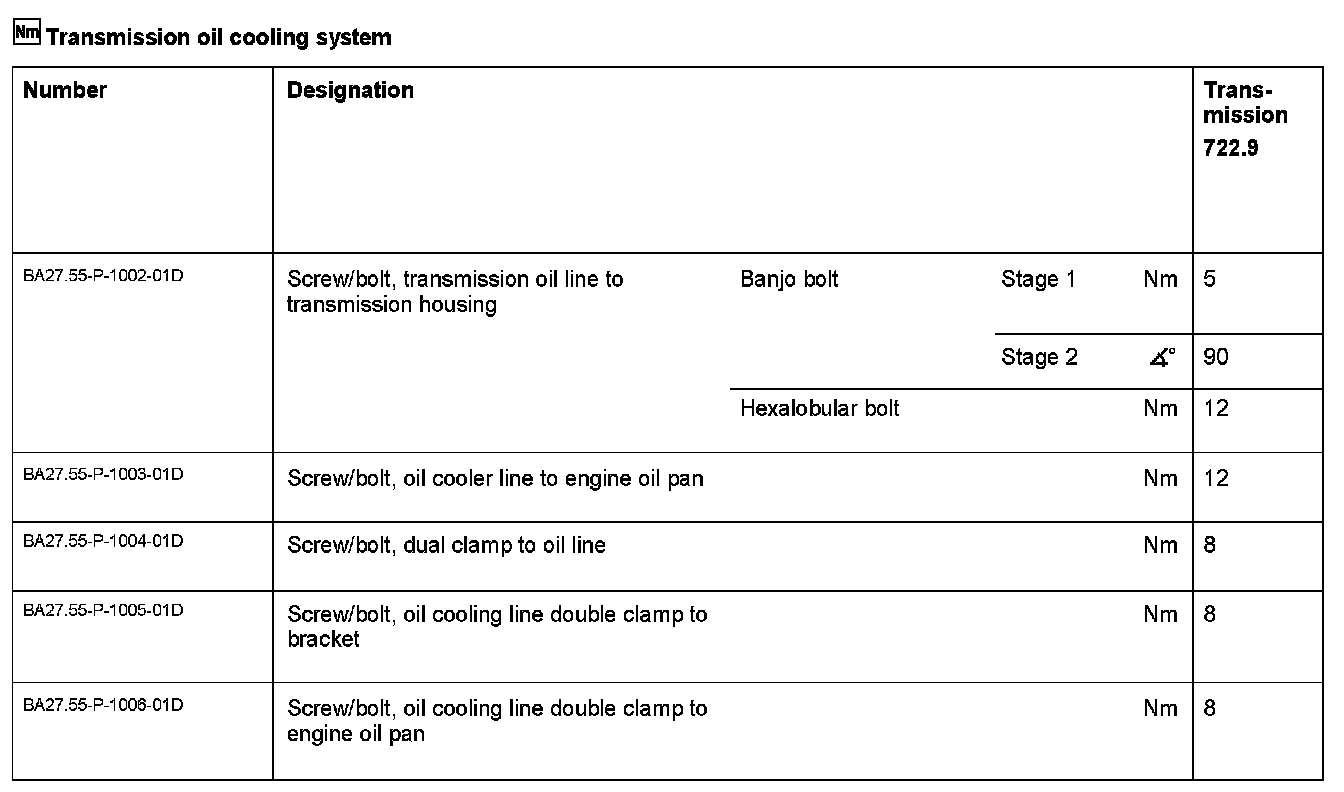

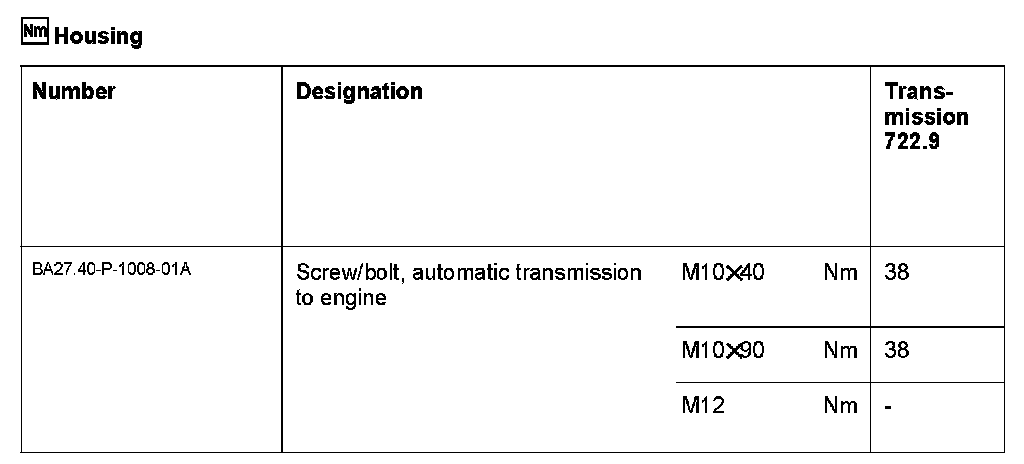

AR01.45-P-7500EL Remove/Install Oil Pan
ENGINES 276 in MODEL 212, 218

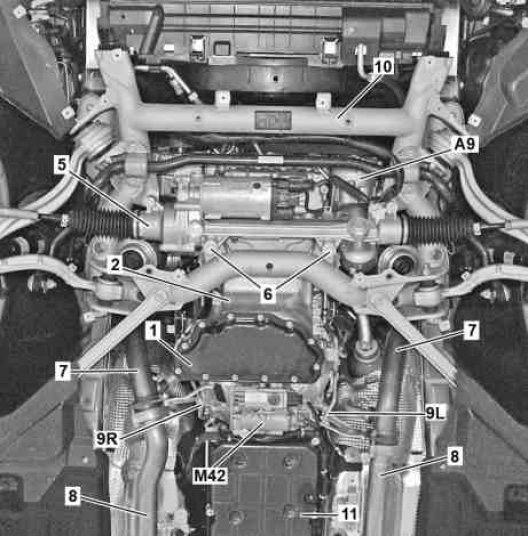

78 Center section of the bulkhead





1 Oil pan bottom section
2 Oil pan
5 Rack-and-pinion steering
6 Screw/bolts
7 Catalytic converter
8 NOx catalytic converter
9L Transmission oil/fluid line
9R Transmission oil/fluid line
10 Front axle carrier
11 Transmission

A9 A/C compressor
M42 Electric transmission oil pump

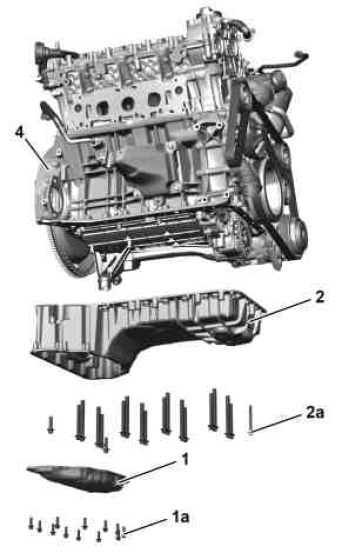

1 Oil pan bottom section
1a Screw/bolt
2 Oil pan
2a Screw/bolt
4 Cylinder crankcase


























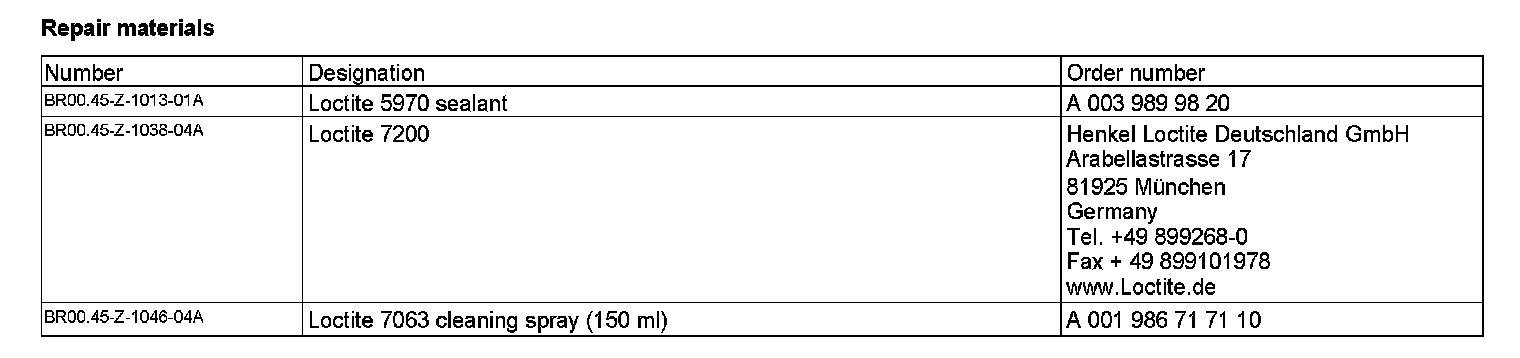

129 589 00 91 00
Set of stop plugs
