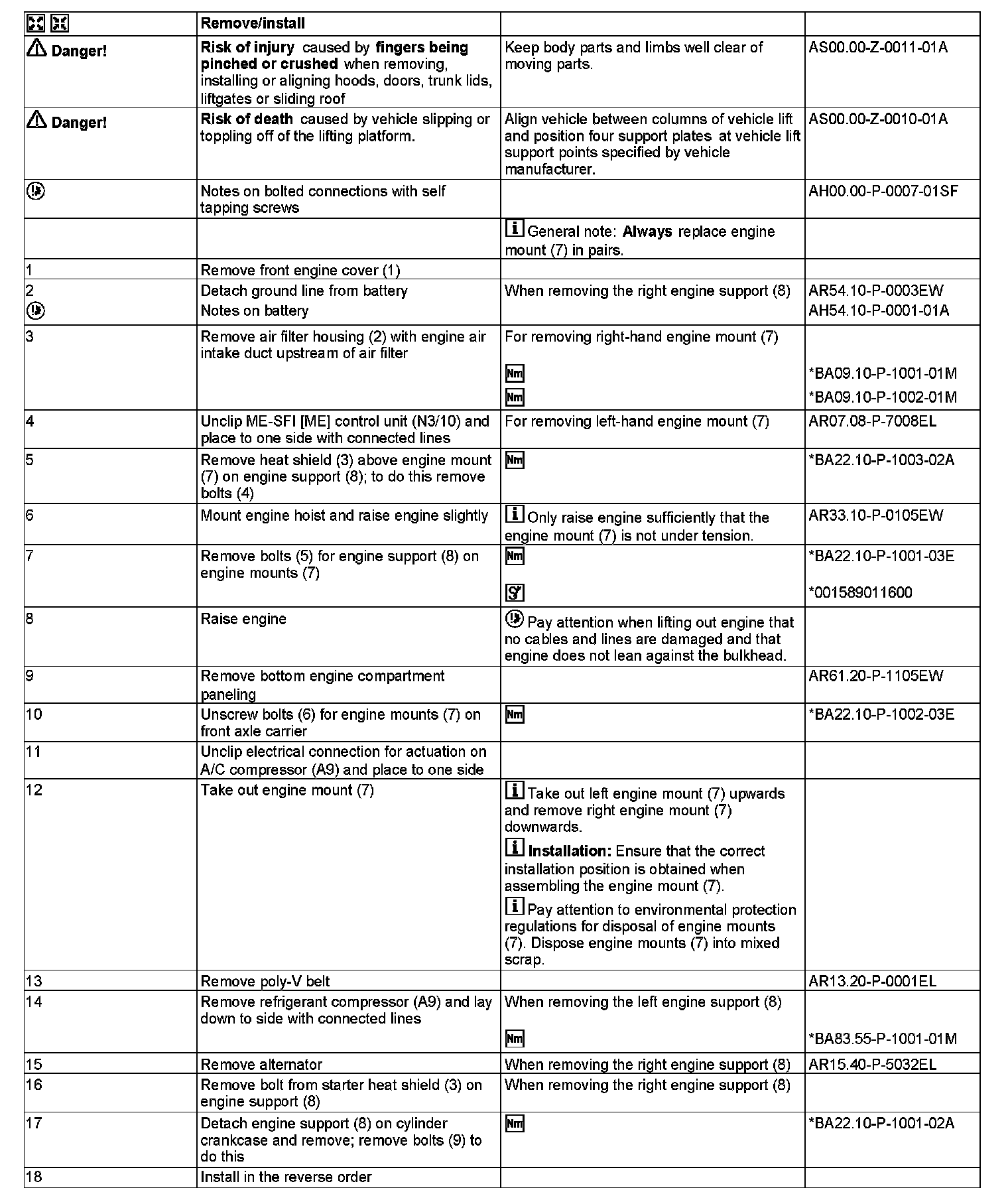

AR22.10-P-1260EL Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260EL Remove/Install Front Engine Mounts And/Or Engine Support
ENGINES 276 in MODEL 212, 218
without 4MATIC

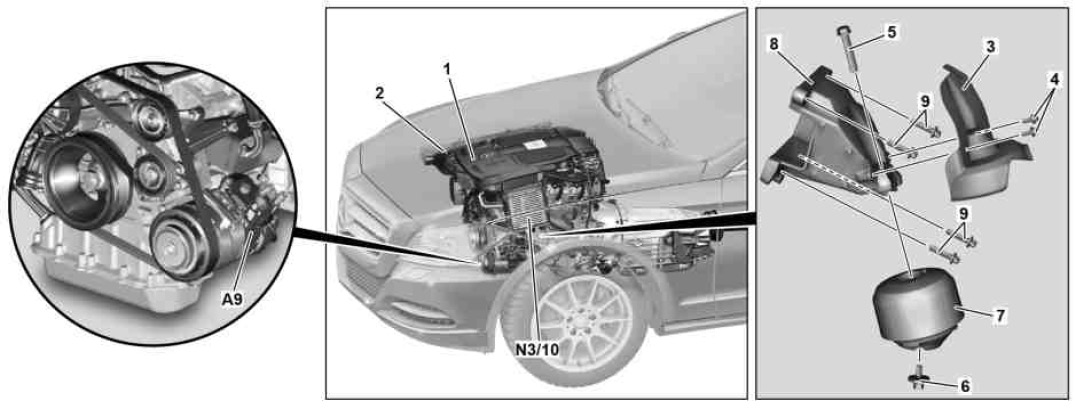

1 Front engine cover
2 Air cleaner housing
3 Heat shield
4 Bolt
5 Bolt
6 Bolt
7 Engine mount
8 Engine support
9 Bolt
A9 AC compressor
N3/10 ME-SFI [ME] control unit




















001 589 01 16 00
Set of engine bearing wrenches
