AR01.30-P-5780EL Remove/Install Right Cylinder Head

AR01.30-P-5780EL Remove/Install Right Cylinder Head
ENGINES 276 in MODEL 212, 218





Shows model 218

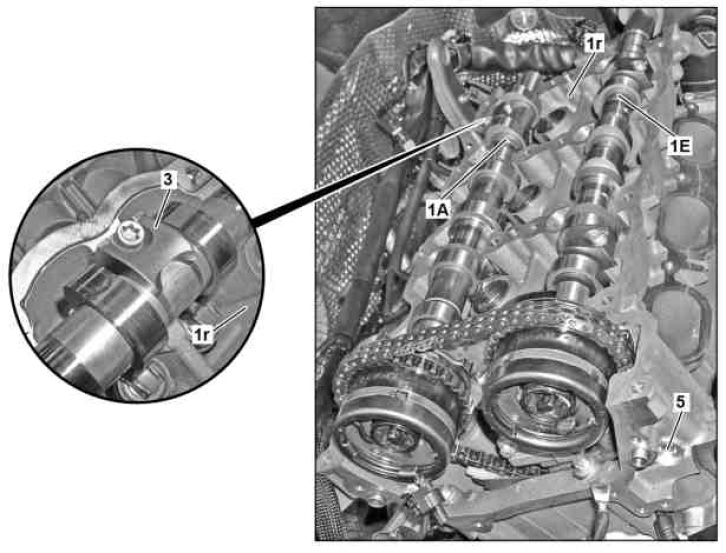

78 Center section of the bulkhead





1A Camshaft (exhaust)
1E Camshaft (intake)
1r Cylinder head
3 Auxiliary bearing cap
5 Slide rail pins





1r Cylinder head
6 Coolant pipe

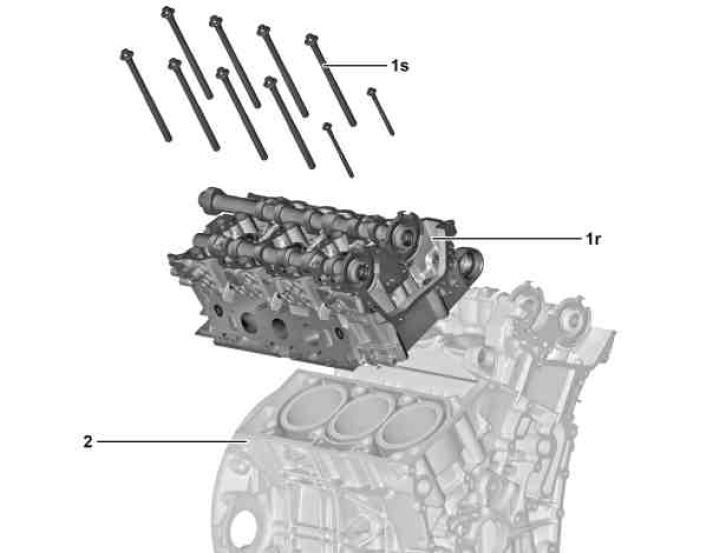

1r Cylinder head
1s Cylinder head bolts
2 Cylinder crankcase




















116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun





116 589 20 33 00
Impact extractor
