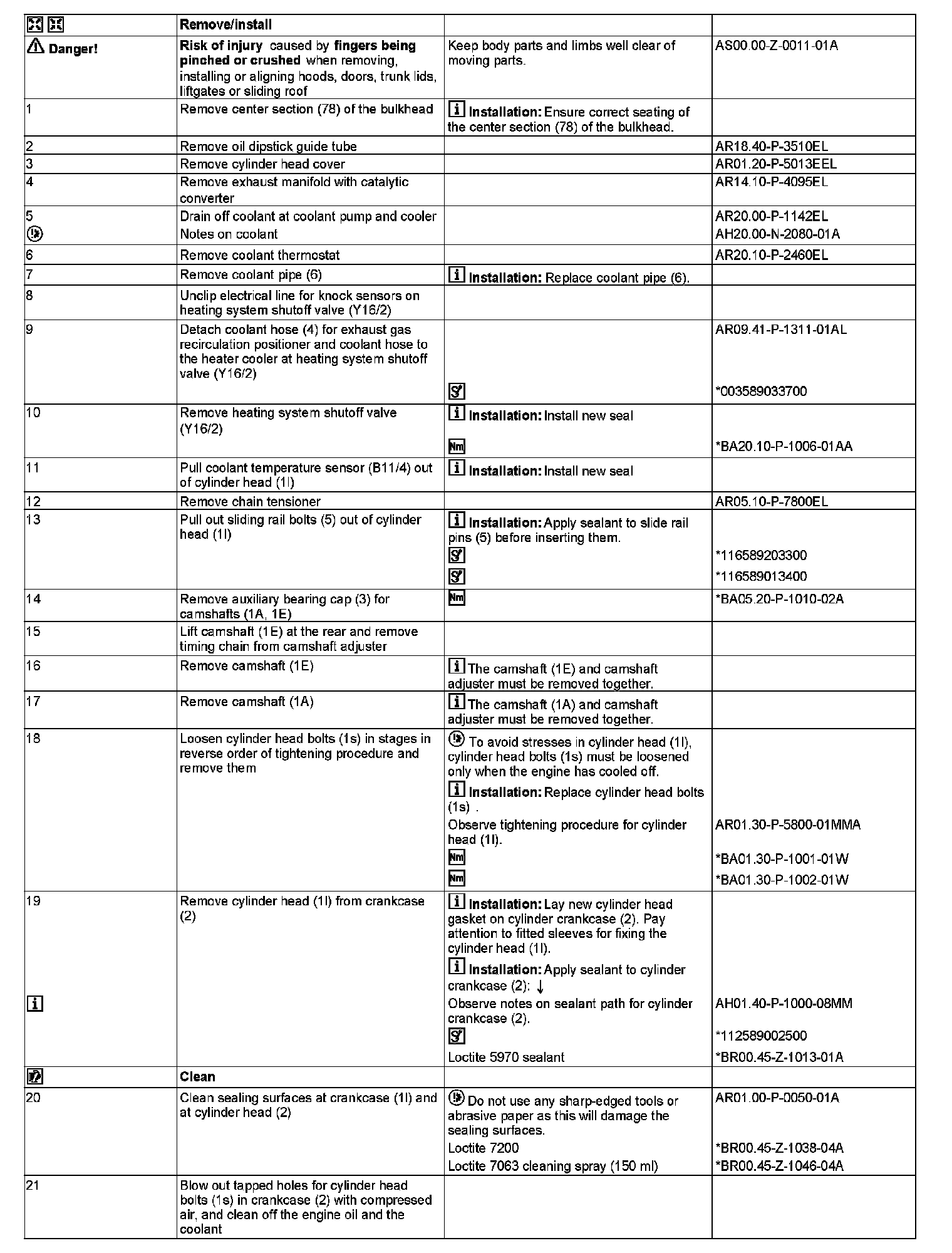

AR01.30-P-5770EL Remove/Install the Cylinder Head

AR01.30-P-5770EL Remove/Install The Cylinder Head
ENGINES 276 in MODEL 212, 218

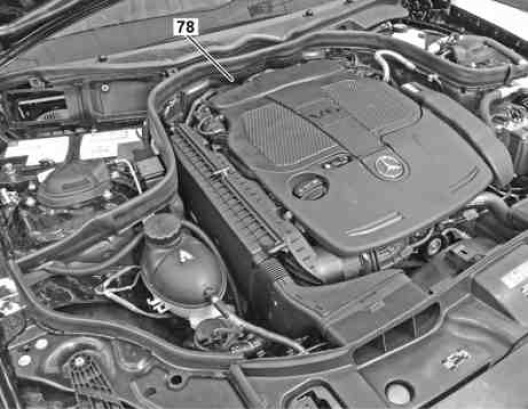

Shows model 218

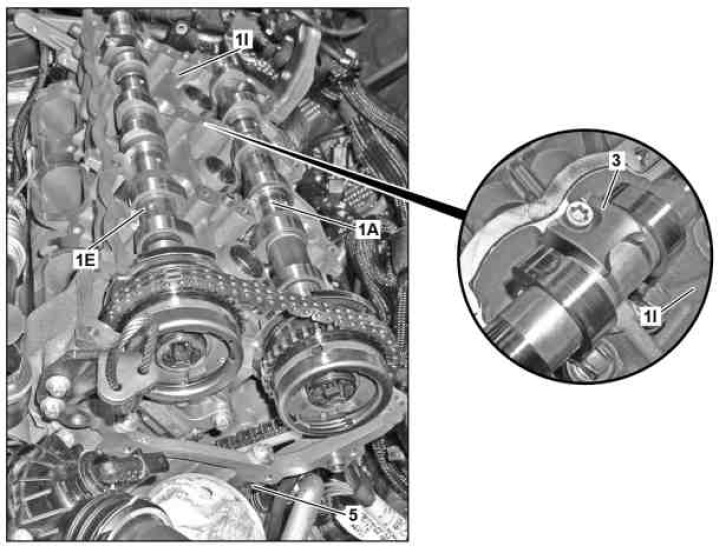

78 Center section of the bulkhead





1A Camshaft (exhaust)
1E Camshaft (intake)
1l Cylinder head
3 Auxiliary bearing cap
5 Slide rail pins

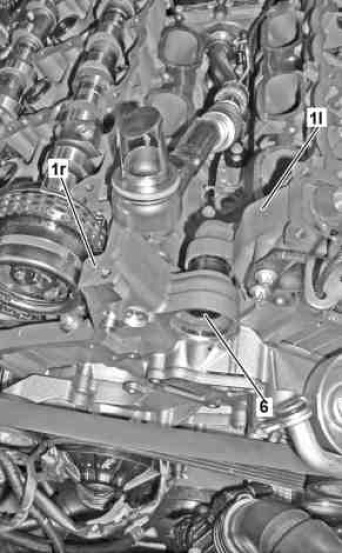

1l Cylinder head
6 Coolant pipe

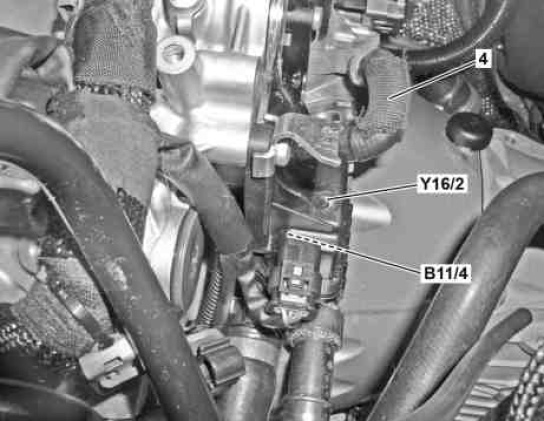

4 Coolant hose

B11/4 Coolant temperature sensor
Y16/2 Heating system shutoff valve

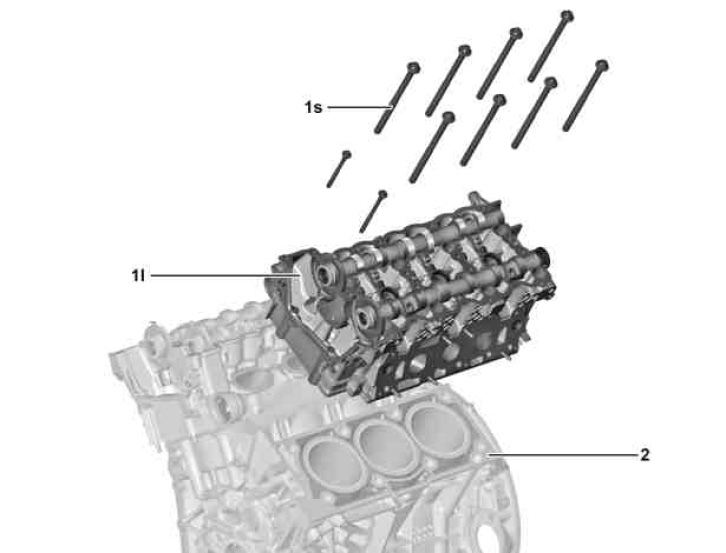

1l Cylinder head
1s Cylinder head bolts
2 Cylinder crankcase




















116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun





116 589 20 33 00
Impact extractor





003 589 03 37 00
Hose clamp pliers
