Lifter / Lash Adjuster: Testing and Inspection

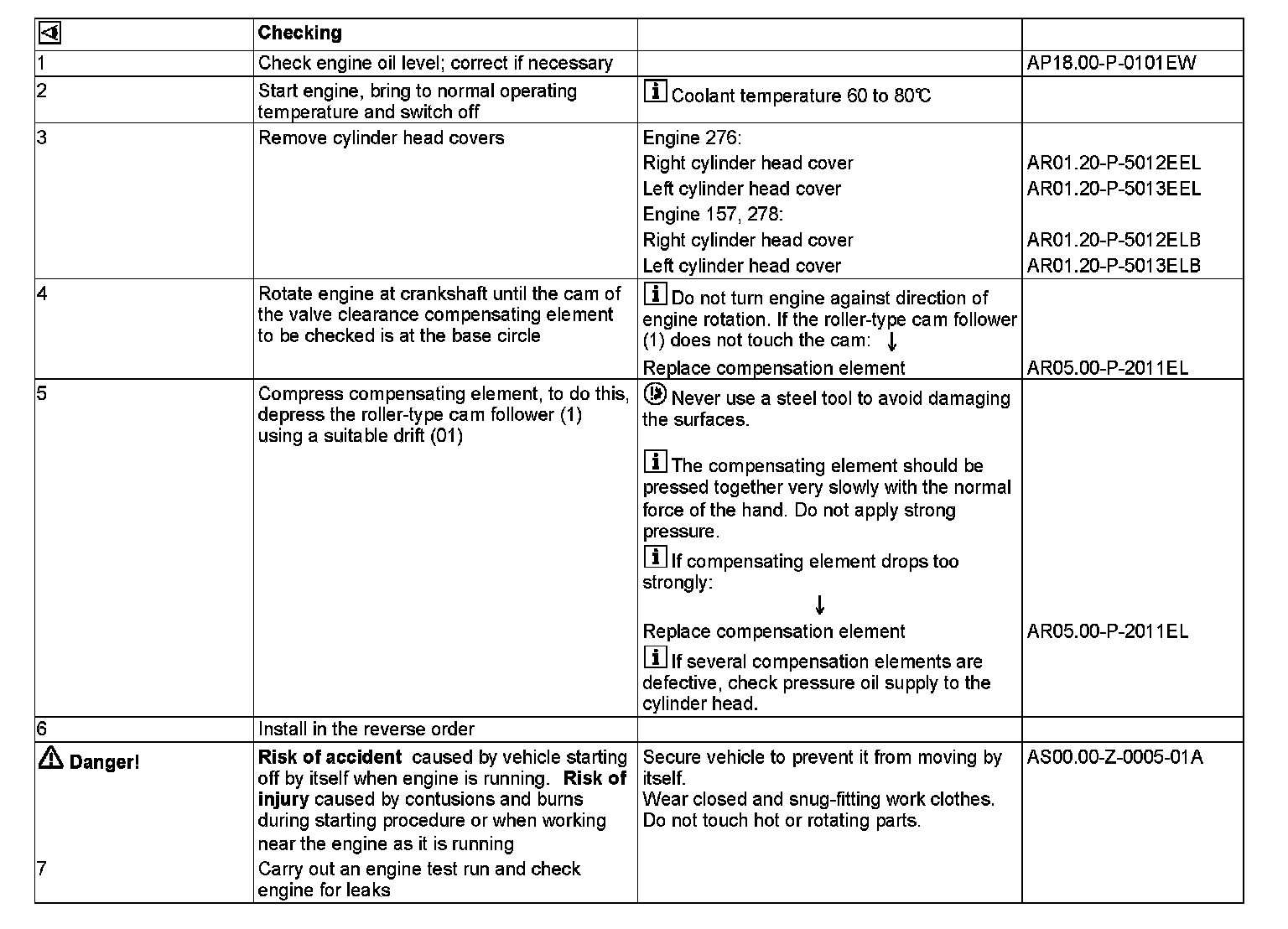

AR05.00-P-2010EL Check Hydraulic Valve Clearance Compensating Elements
ENGINES 157, 276, 278 in MODEL 212, 218

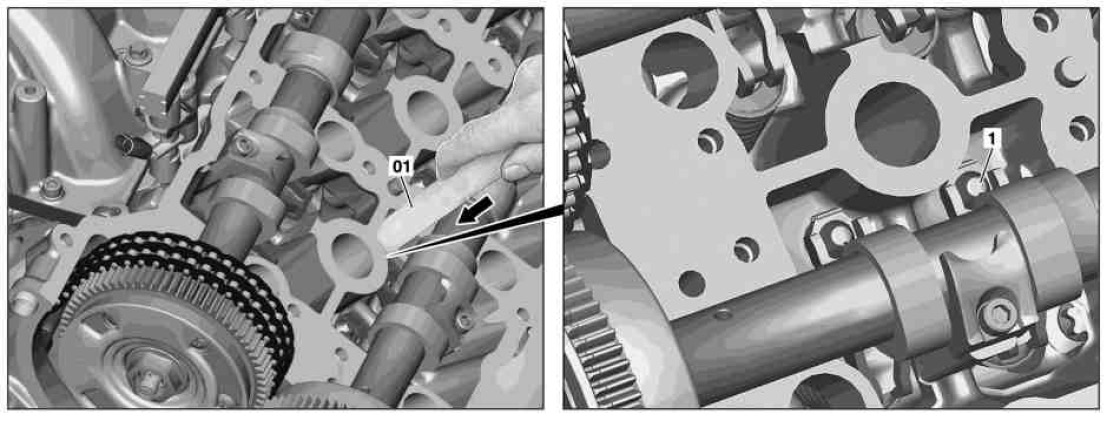

01 Drift
1 Roller-type cam follower
