Lifter / Lash Adjuster: Service and Repair

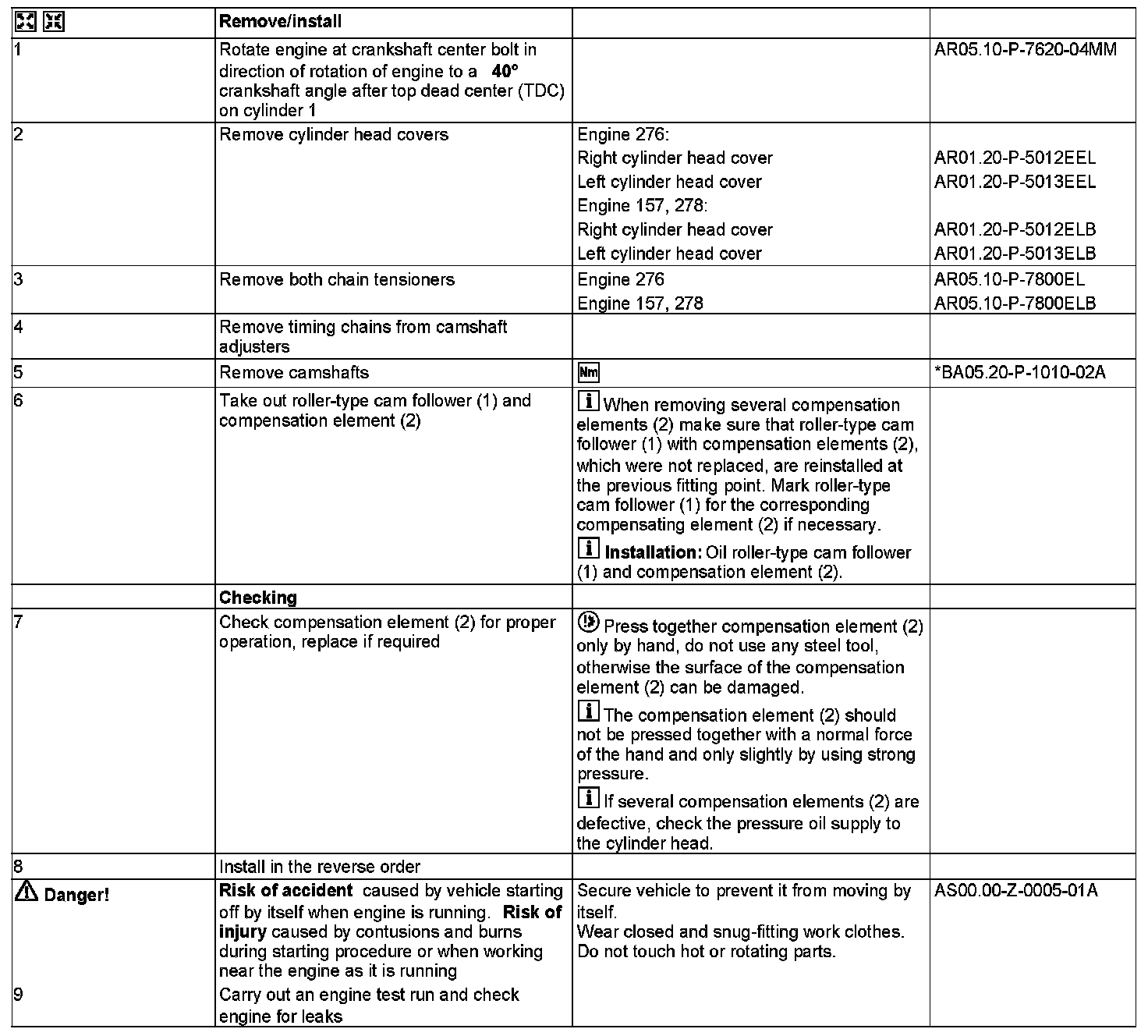

AR05.00-P-2011EL Remove/Install Hydraulic Valve Clearance Compensating Elements
ENGINES 157, 276, 278 in MODEL 212, 218

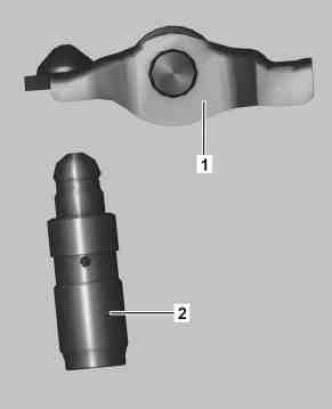

1 Roller-type cam follower
2 Compensating element
