Radiator: Service and Repair

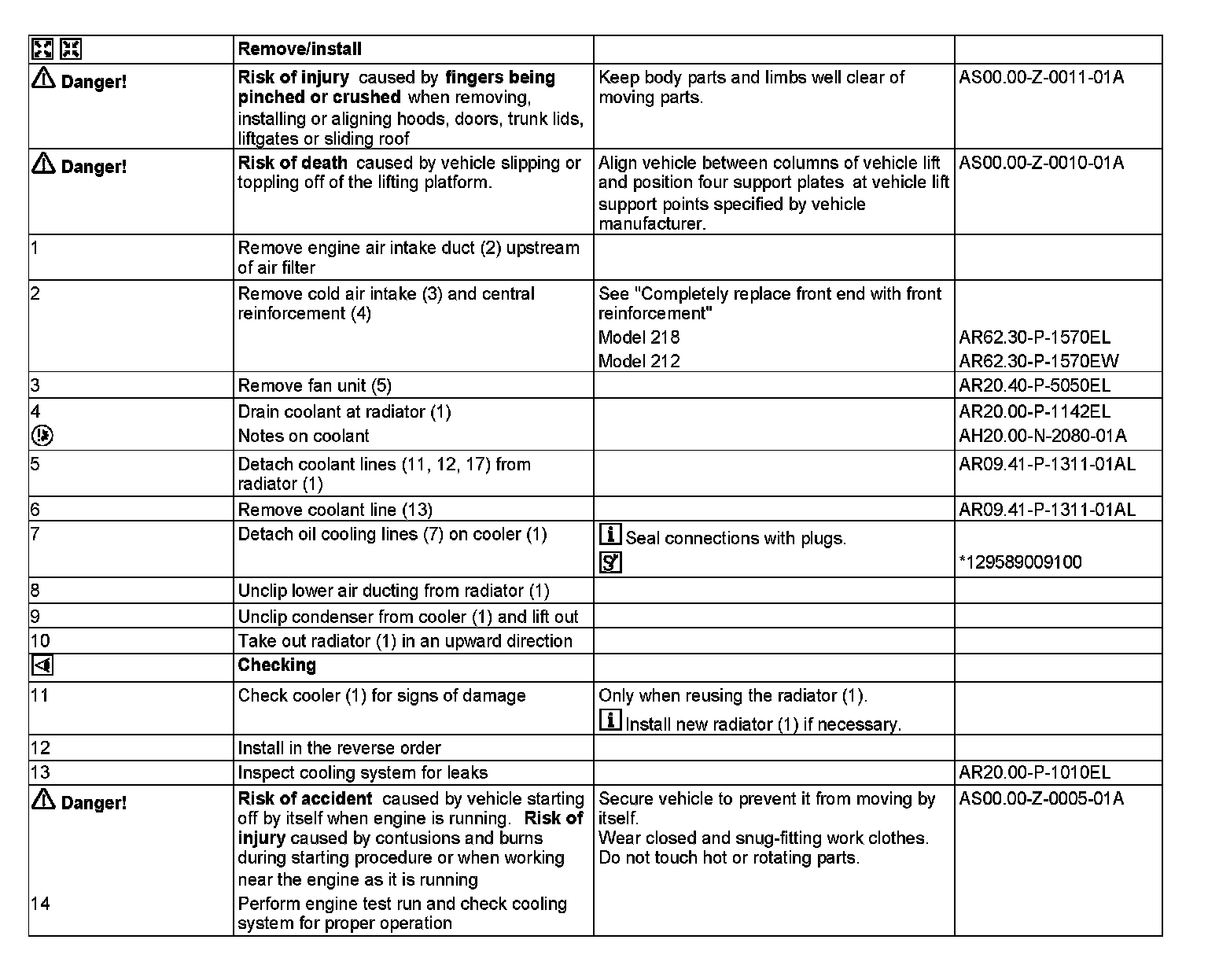

AR20.20-P-3865EL Remove/Install Radiator
ENGINES 276 in MODEL 212, 218

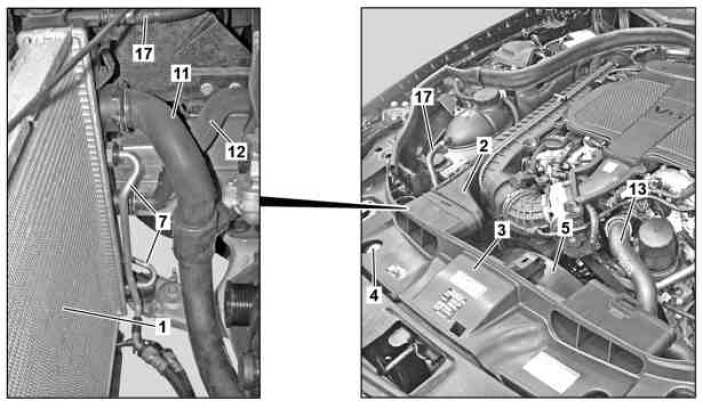

1 Radiator
2 Engine intake air duct upstream of the air filter
3 Cold air intake
4 Front central reinforcement
5 Fan unit
7 Oil cooling lines
11 Coolant line
12 Coolant line
13 Coolant line
17 Coolant line








129 589 00 91 00
Set of stop plugs
