Coolant Reservoir: Service and Repair

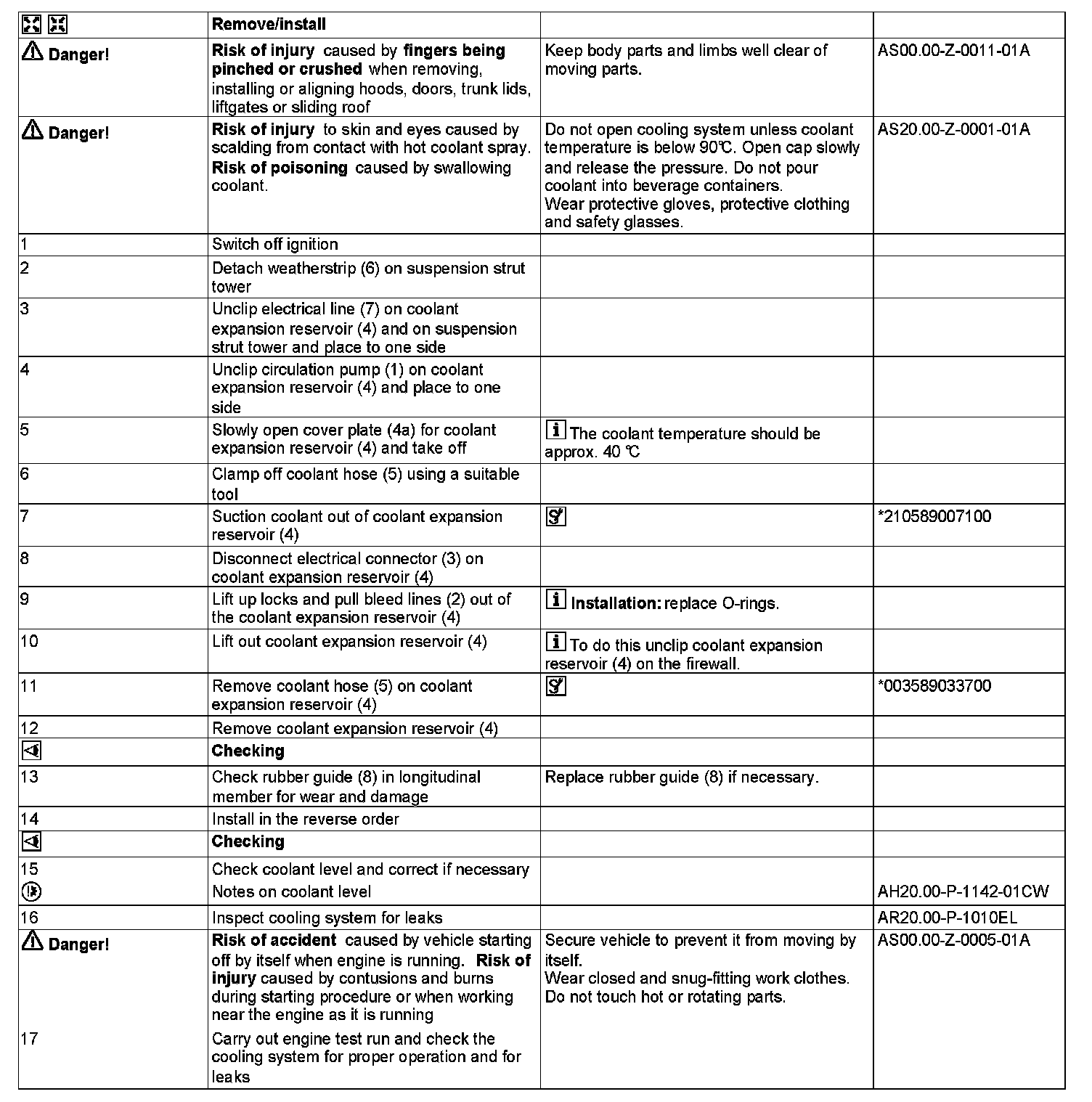

AR20.30-P-4950EL Remove/Install Expansion Reservoir
ENGINES 157, 276, 278 in MODEL 212, 218

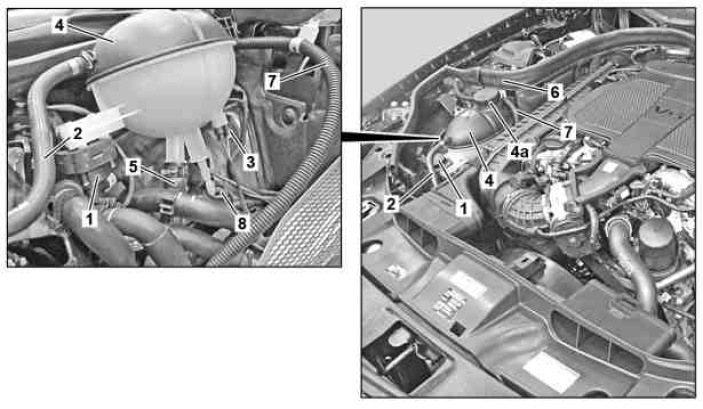

1 Circulation pump
2 Vent line
3 Electrical connector
4 Coolant expansion reservoir
4a Cap
5 Coolant hose
6 Weatherstrip
7 Electrical line
8 Rubber guide








210 589 00 71 00
Hand pump





003 589 03 37 00
Hose clamp pliers
