PE07.10-P-2733DAI Electrical Function Schematic For Safety Fuel Shutoff

PE07.10-P-2733DAI Electrical Function Schematic For Safety Fuel Shutoff
ENGINES 276 in MODEL 212

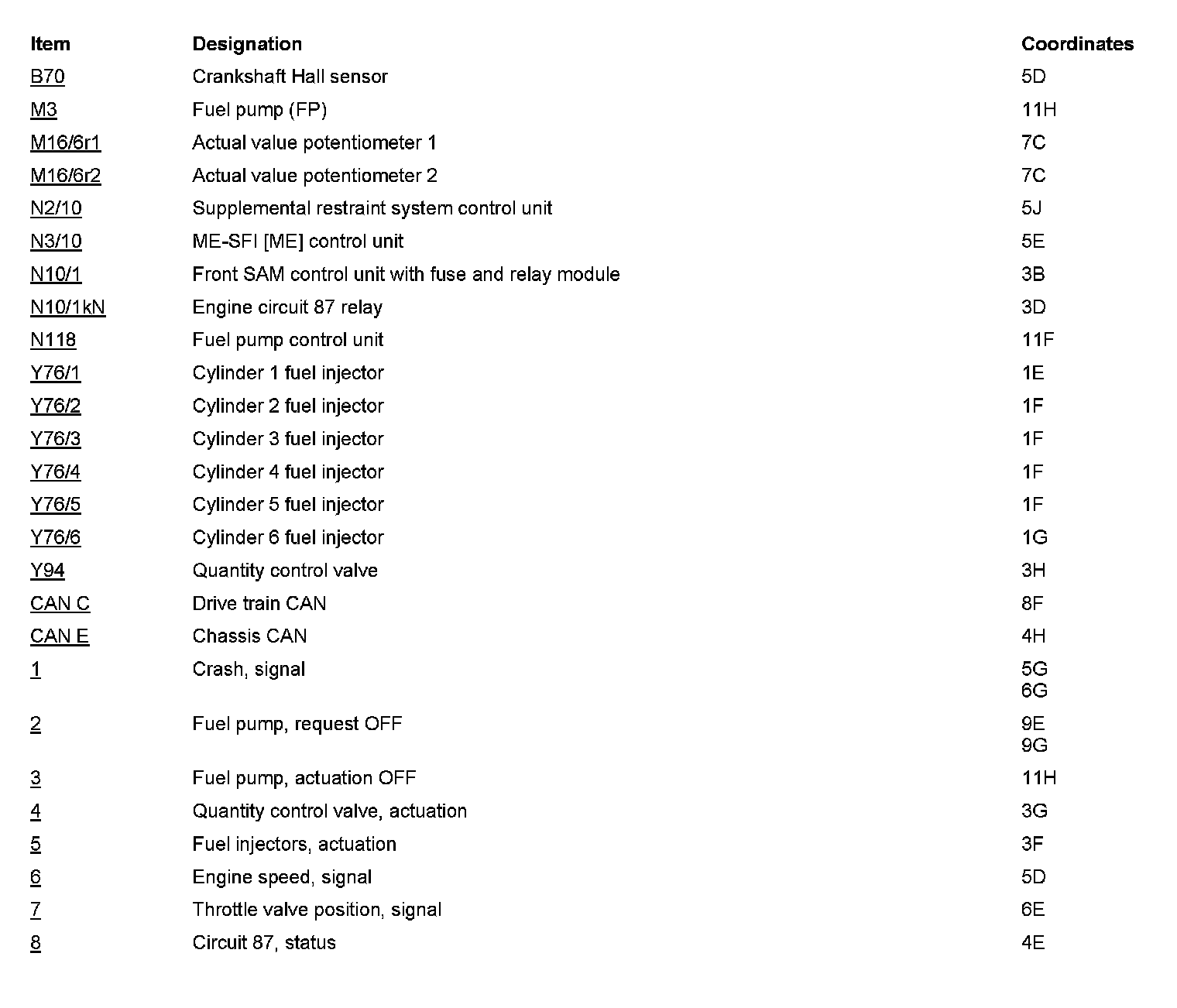

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
