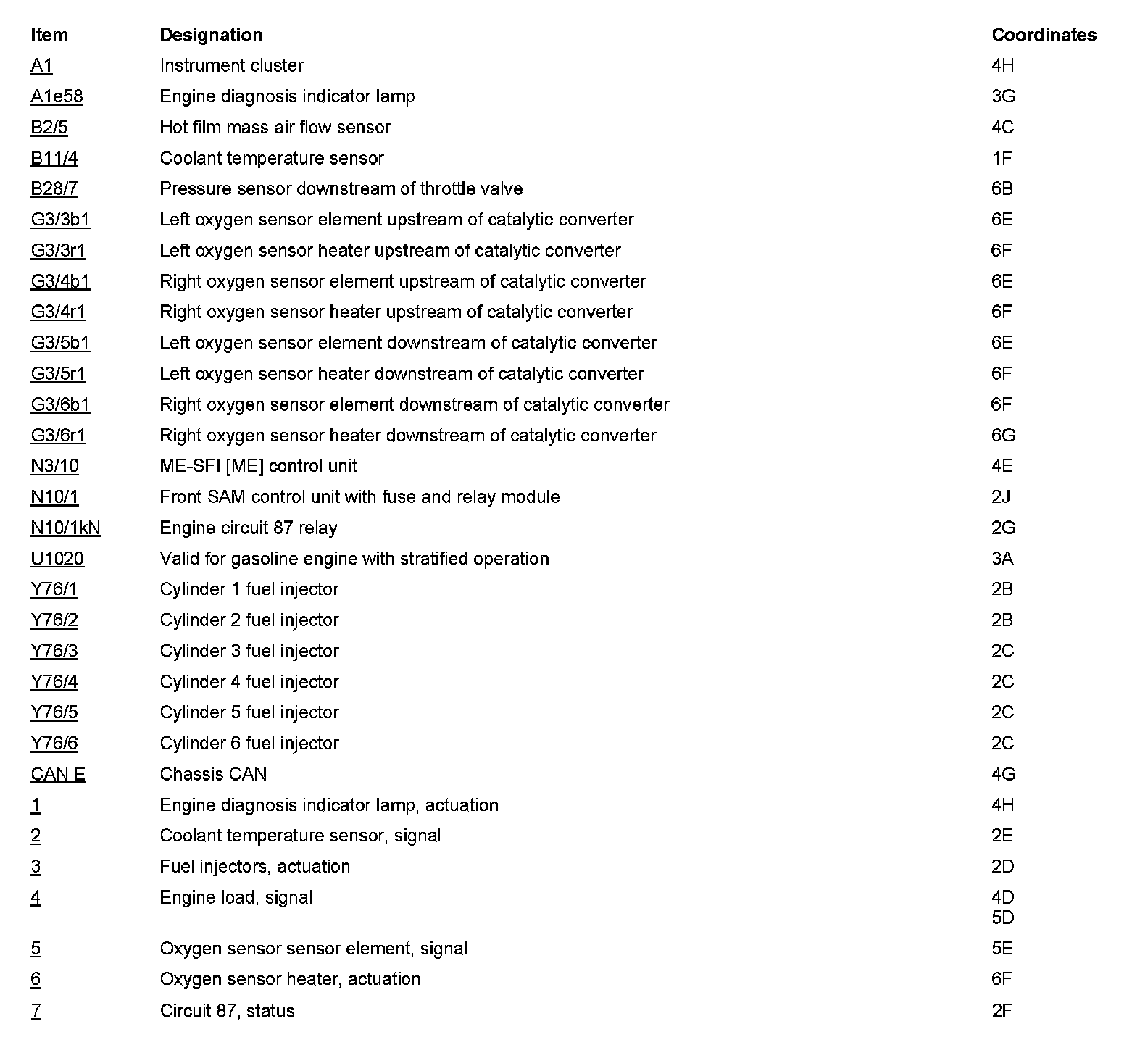

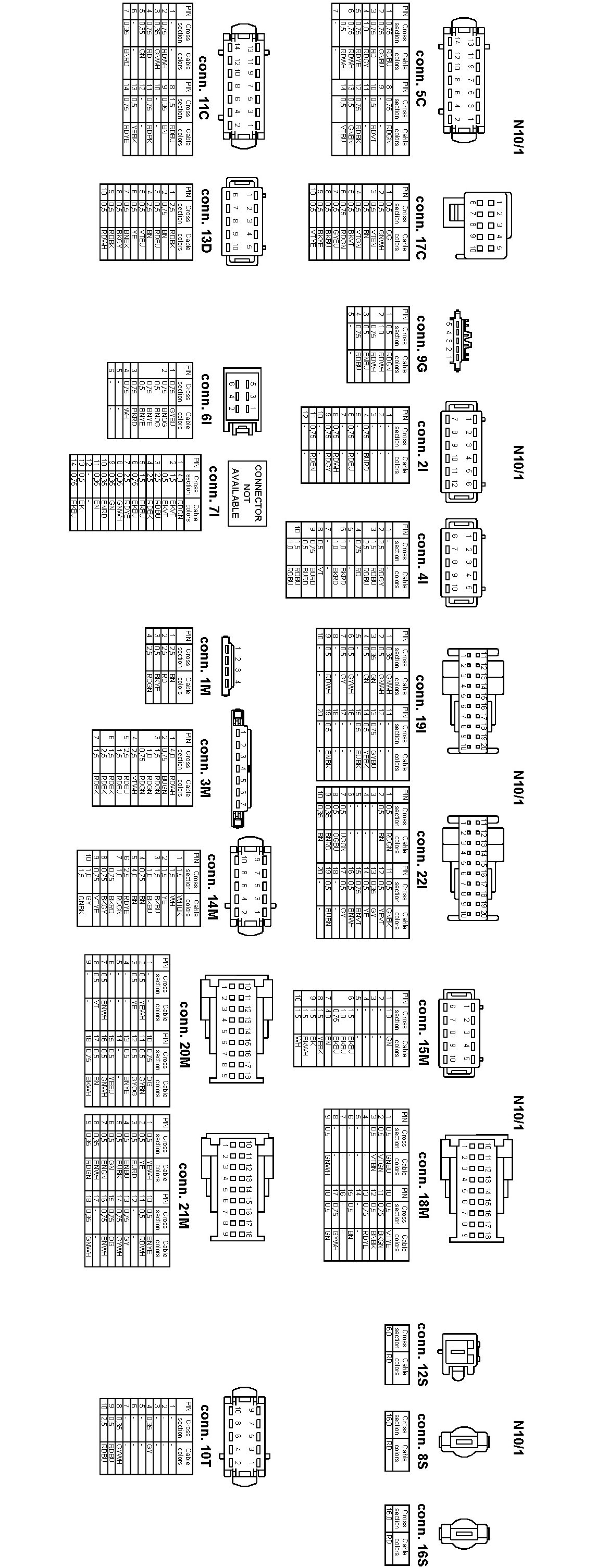

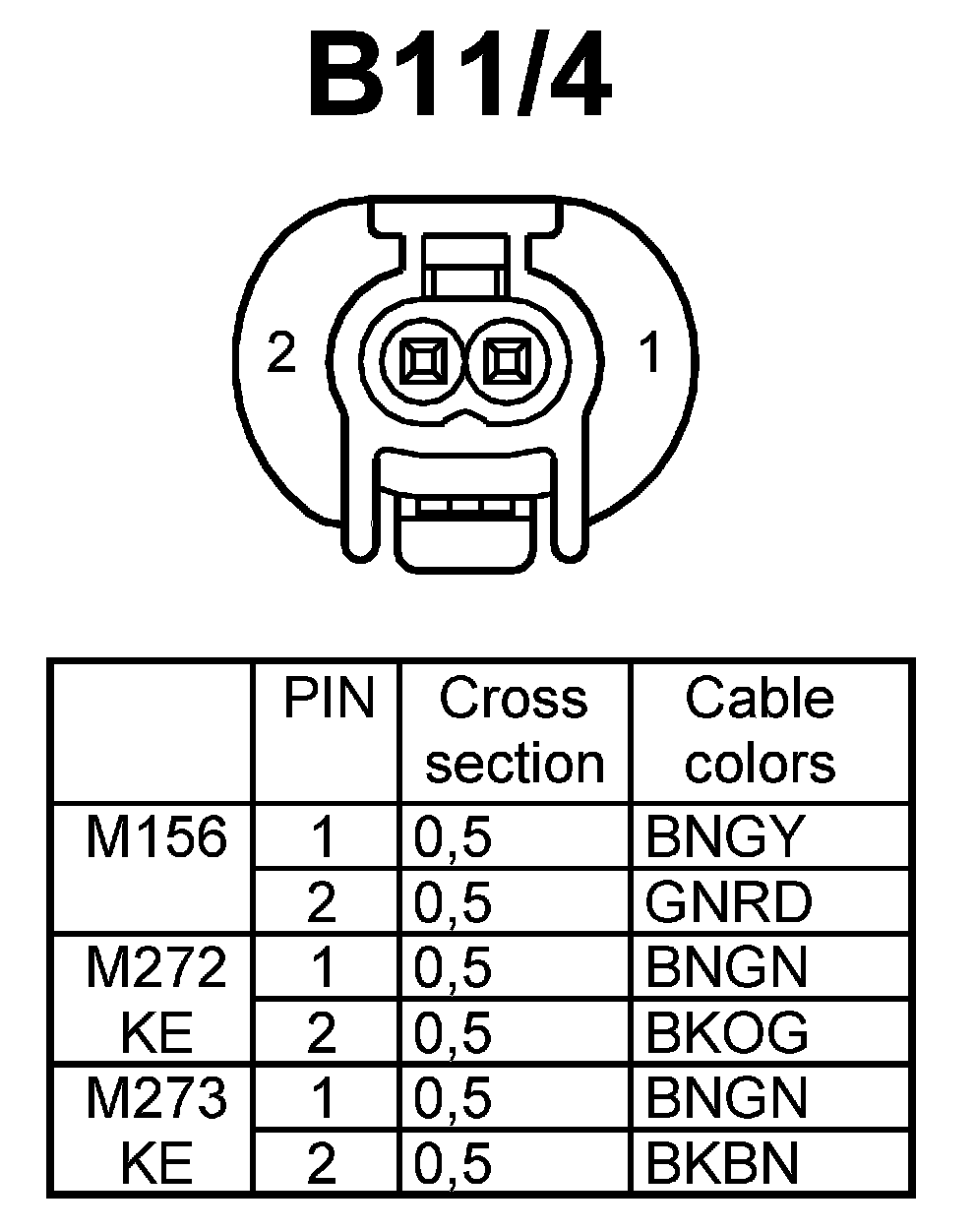

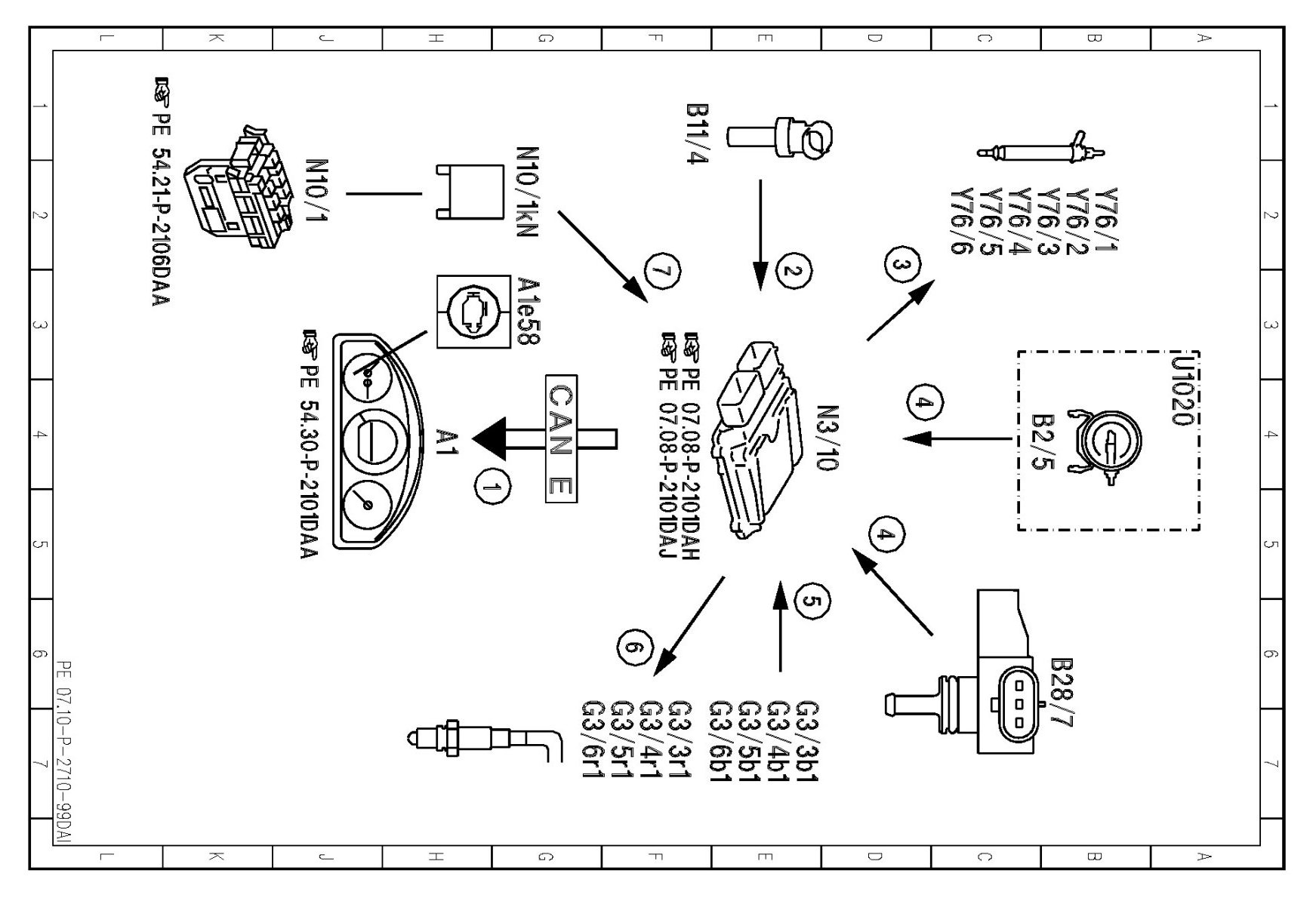

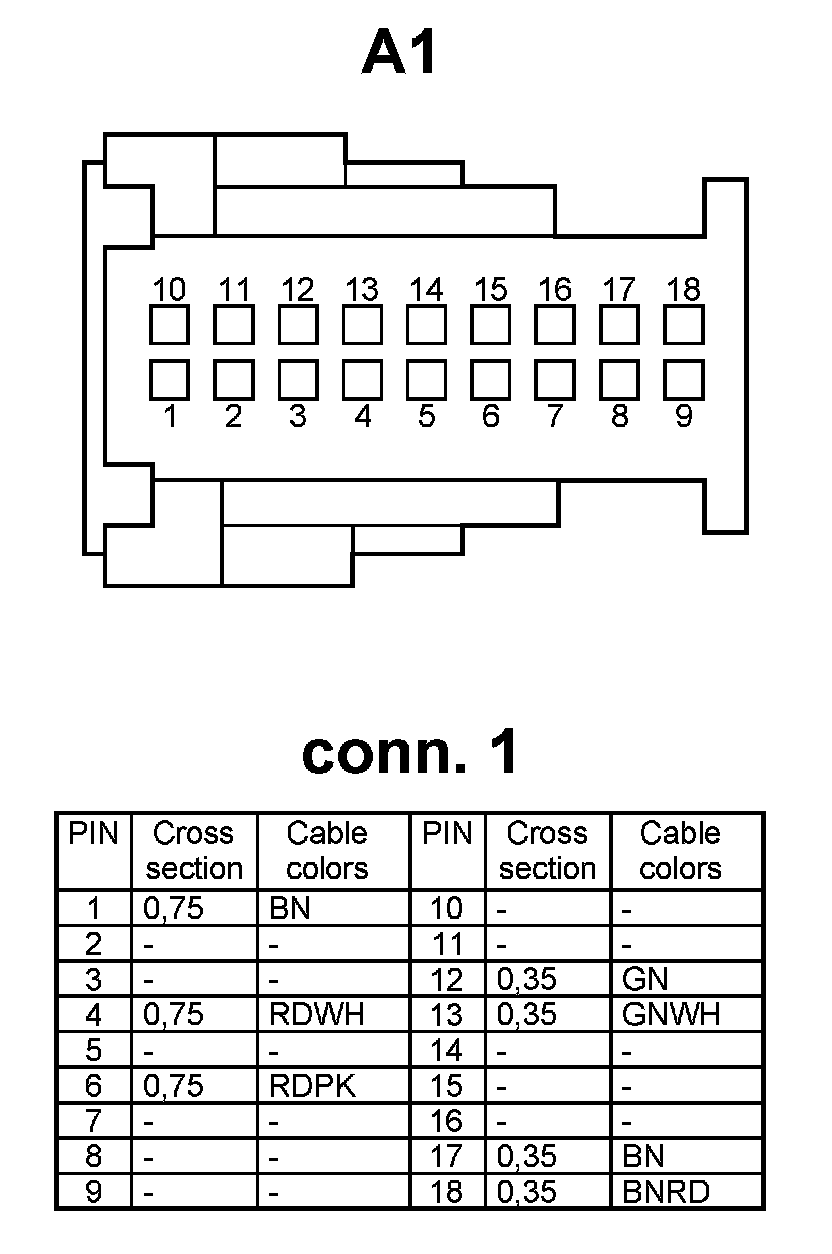

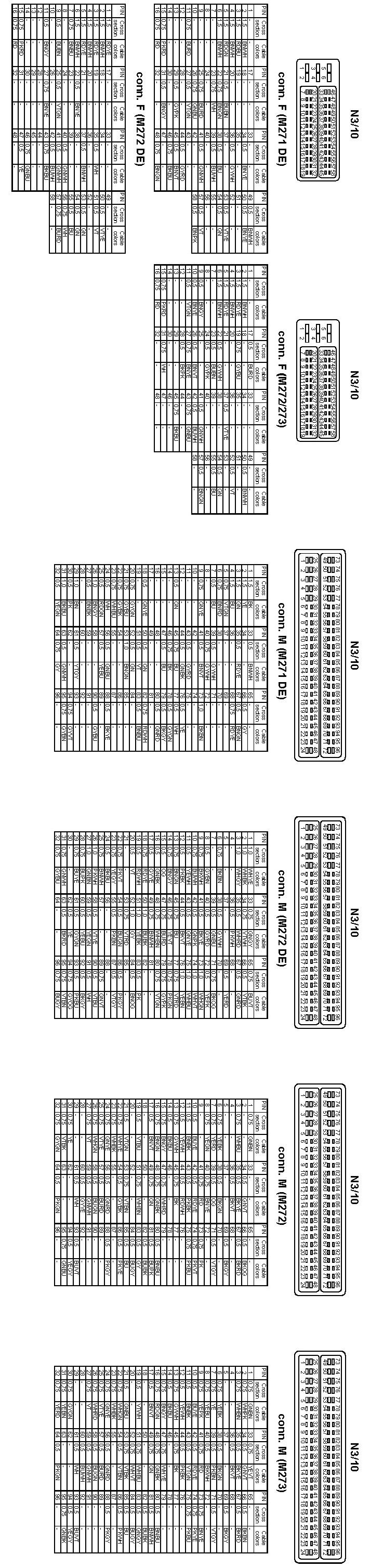

PE07.10-P-2710DAI Electrical Function Schematic For Lambda Control

PE07.10-P-2710DAI Electrical Function Schematic For Lambda Control

ENGINES 276 in MODEL 212


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
