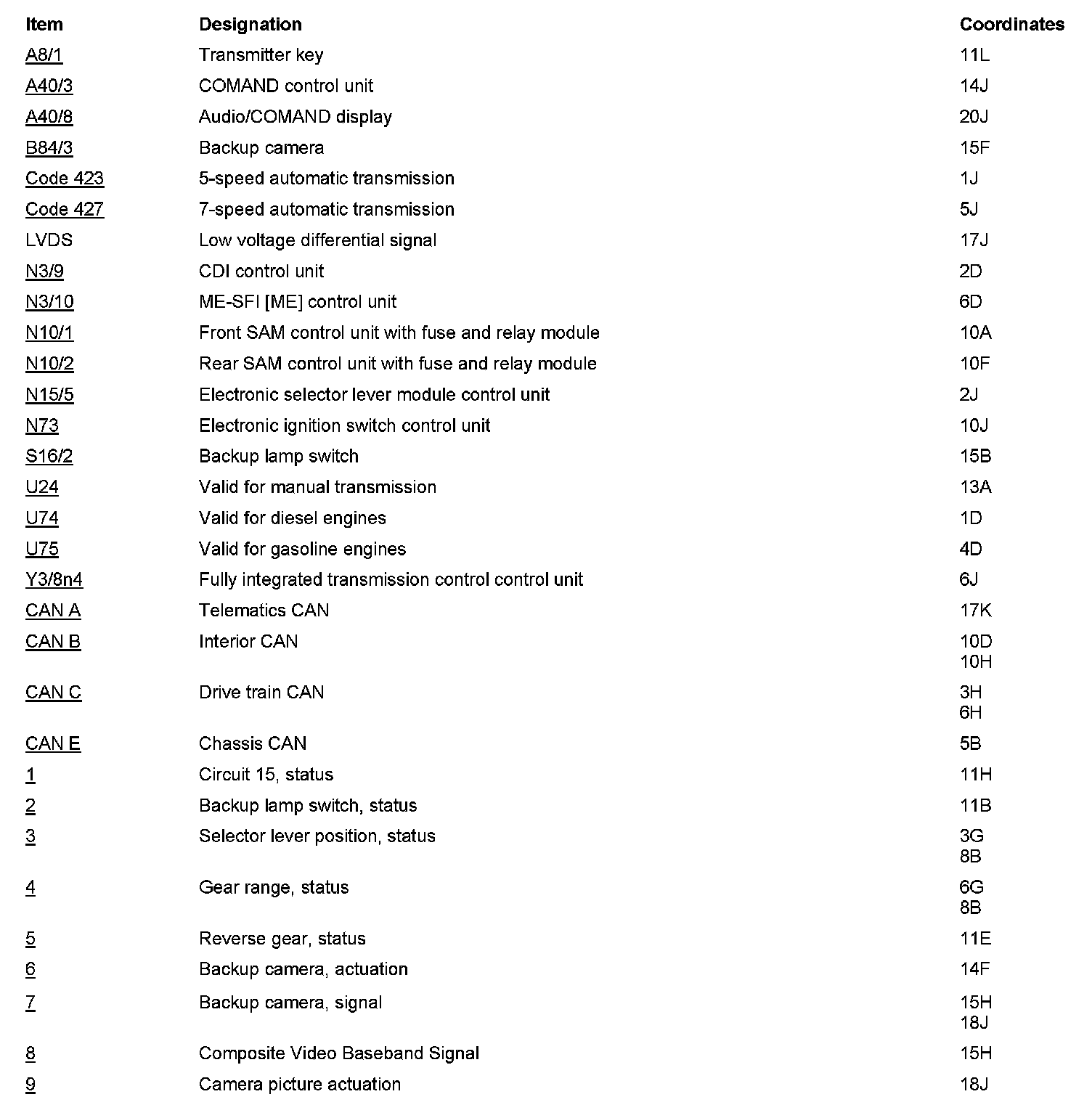

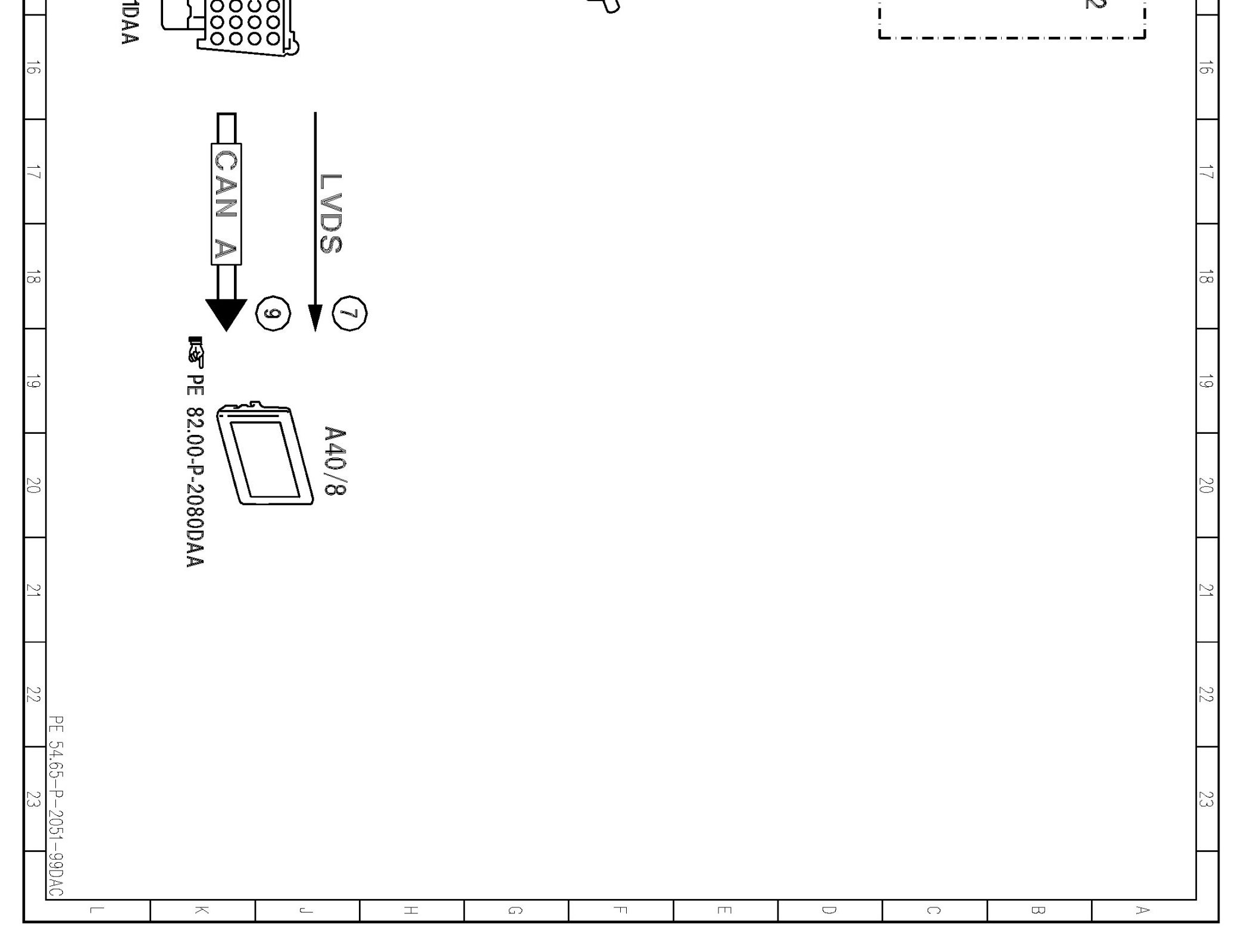

PE54.65-P-2051DAC Electrical Function Schematic, Reversing Camera

PE54.65-P-2051DAC Electrical Function Schematic, Reversing Camera
MODEL 212.0 /2
- with CODE (218) Backup camera
- as of model year 2012 /YoM 11/0

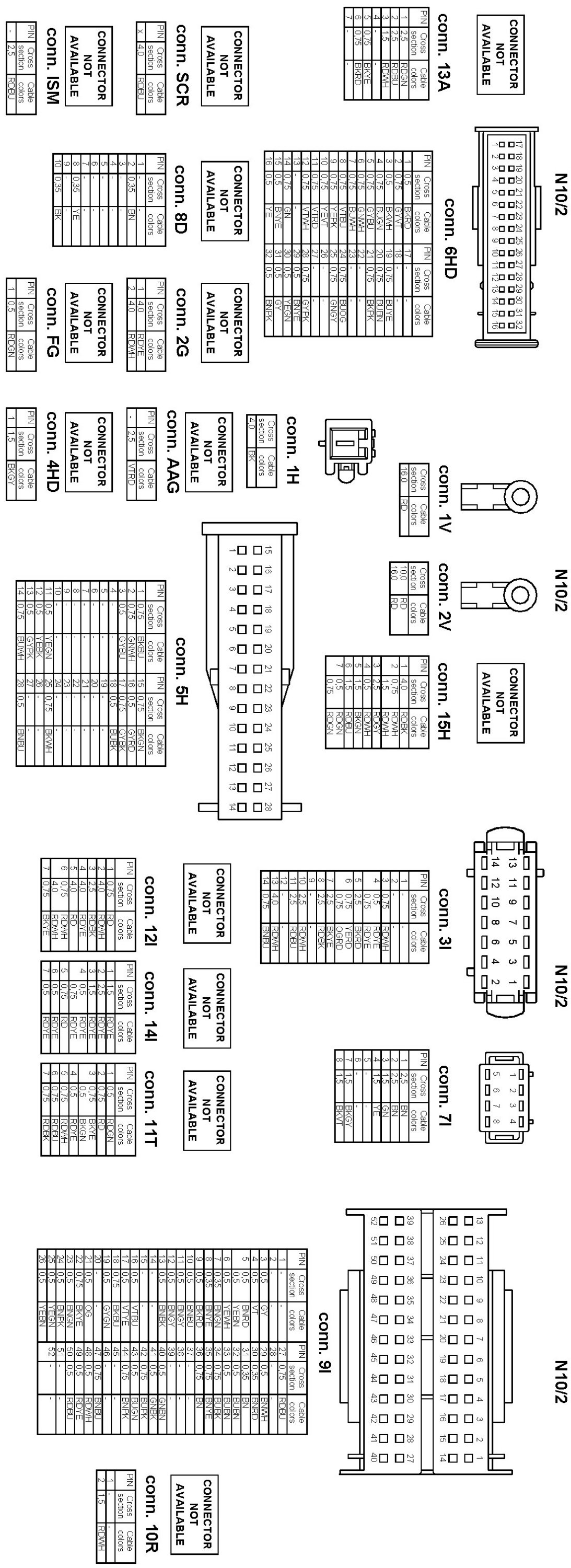

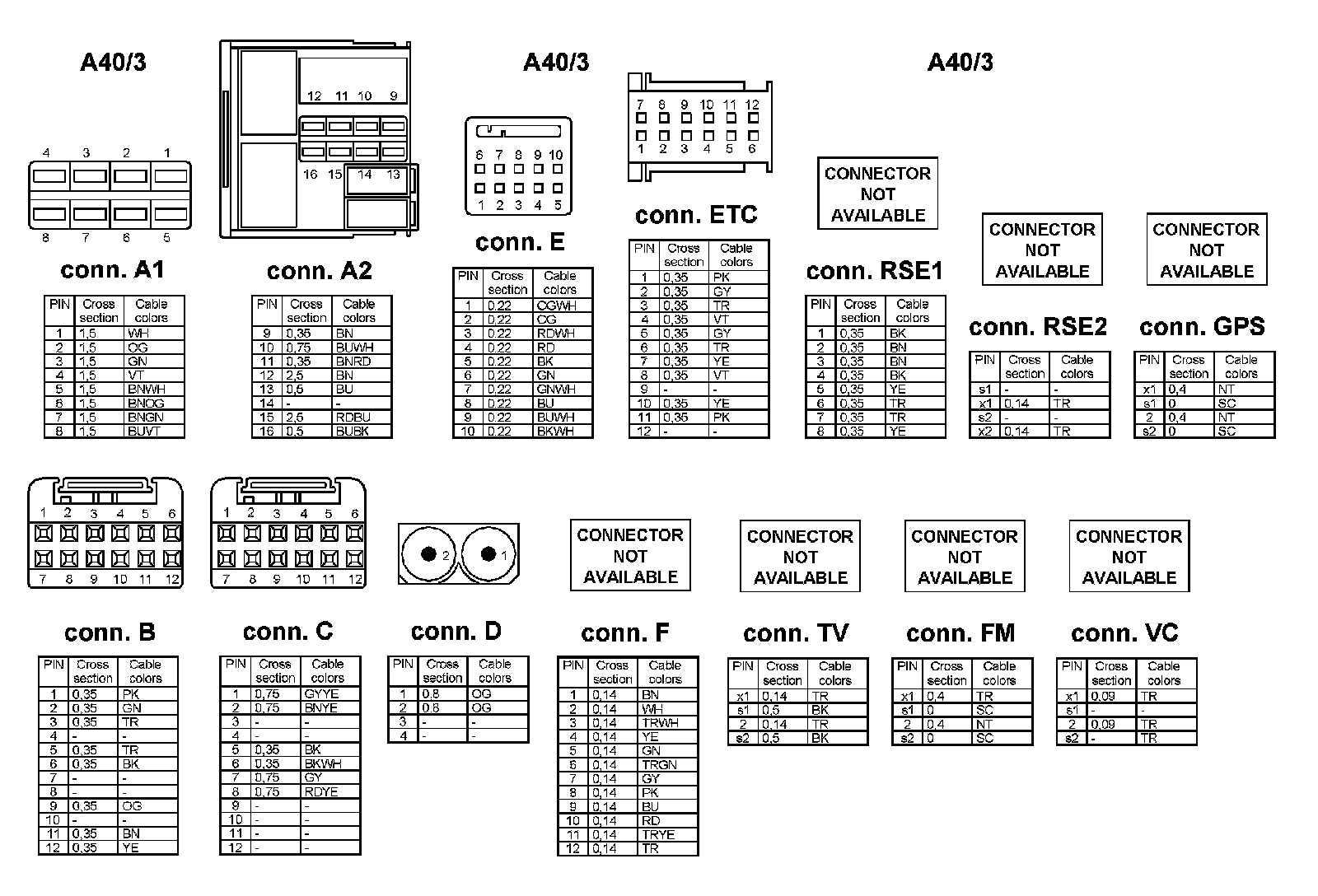

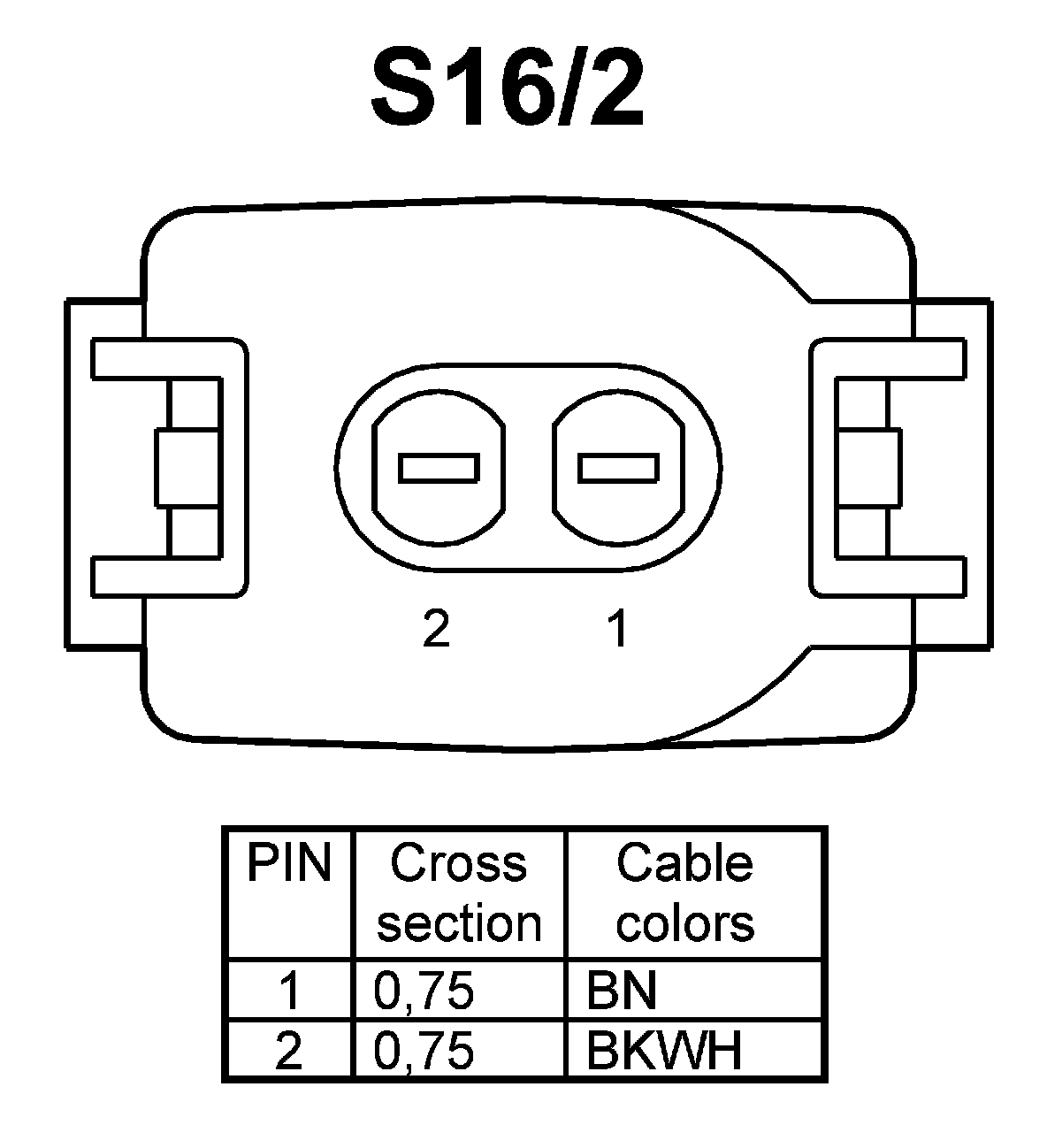

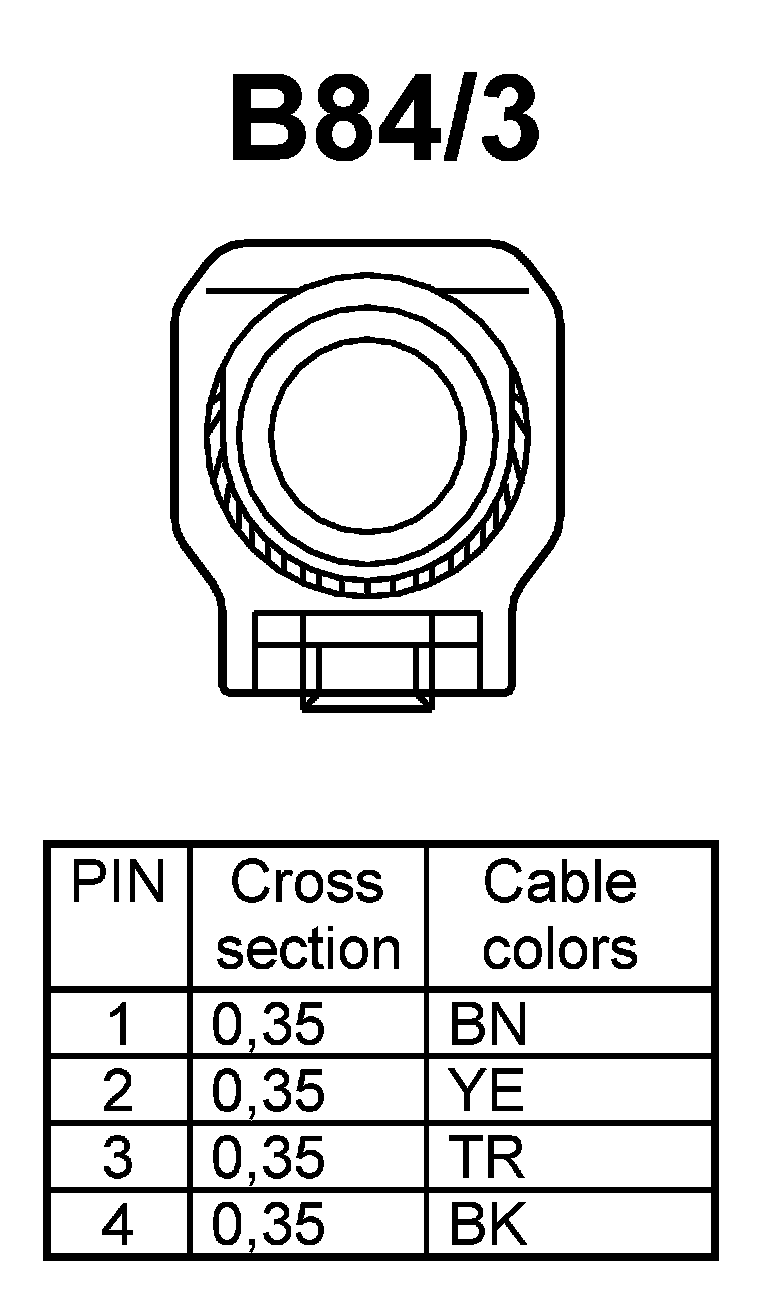

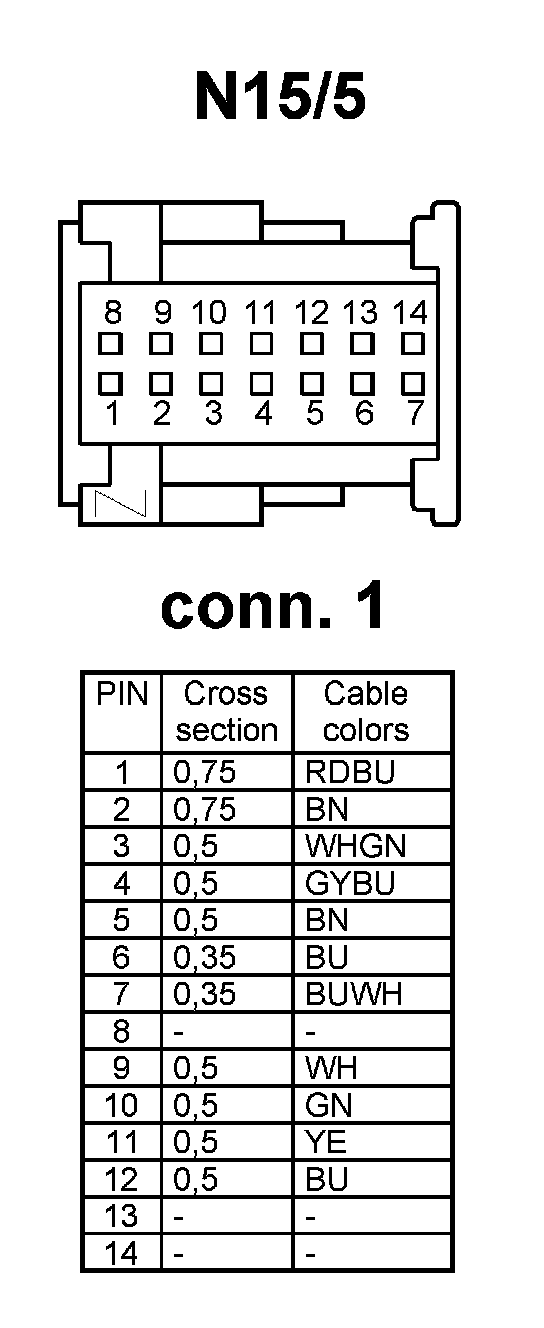

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
