Vacuum Pump: Service and Repair

AR43.05-P-1320EL Remove/Install Vacuum Pump
MODEL 166, 251, 212, 218 with ENGINE 276

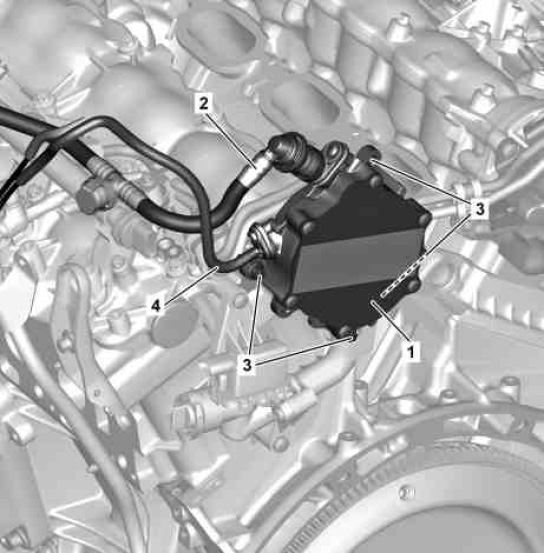

Shows model 218

78 Center section of the bulkhead





1 Vacuum pump
2 Vacuum line
3 Screw
4 Vacuum hose
