Trunk / Liftgate Interior Trim Panel: Service and Repair

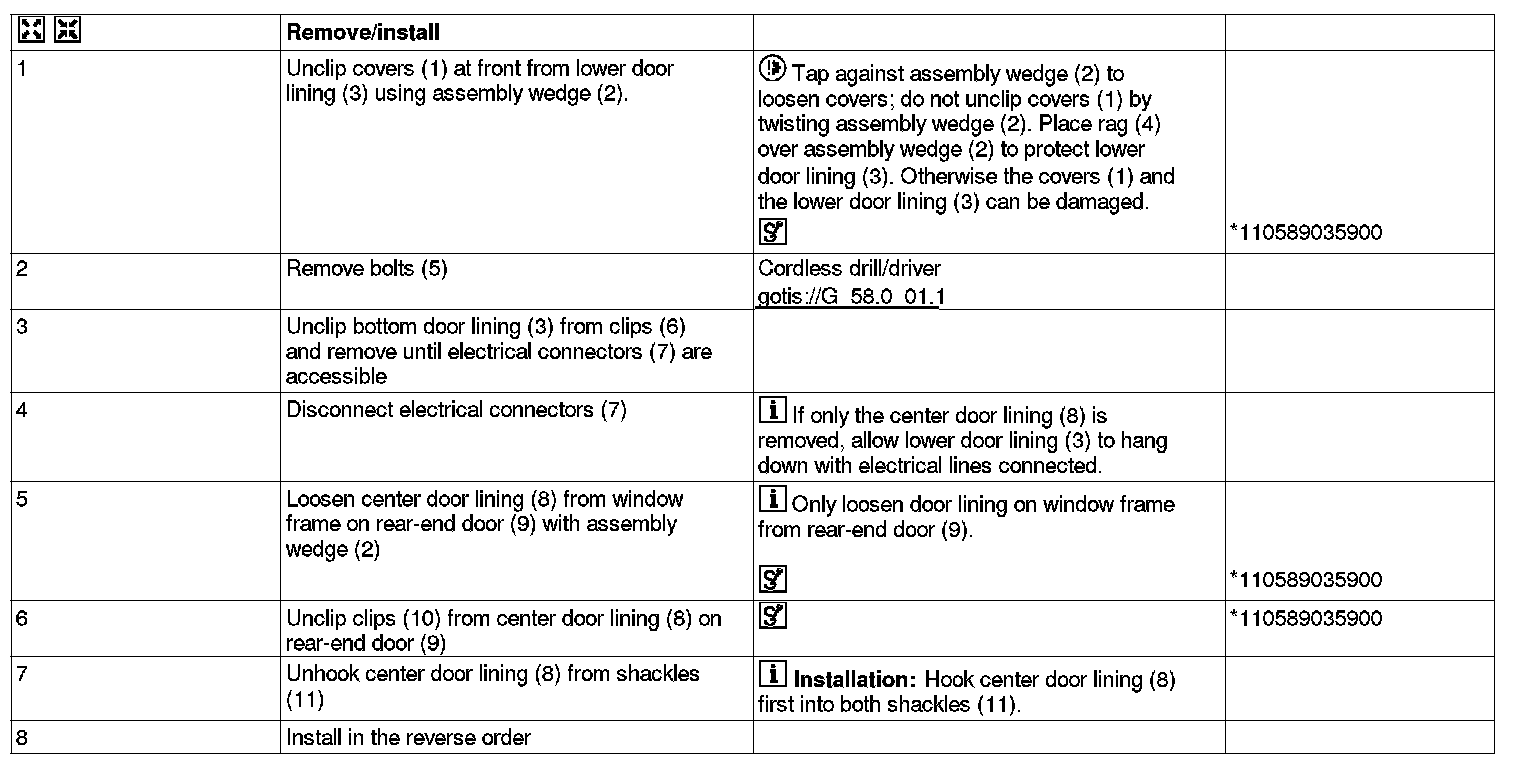

AR72.20-P-3520ES Remove/Install Liftgate Liner

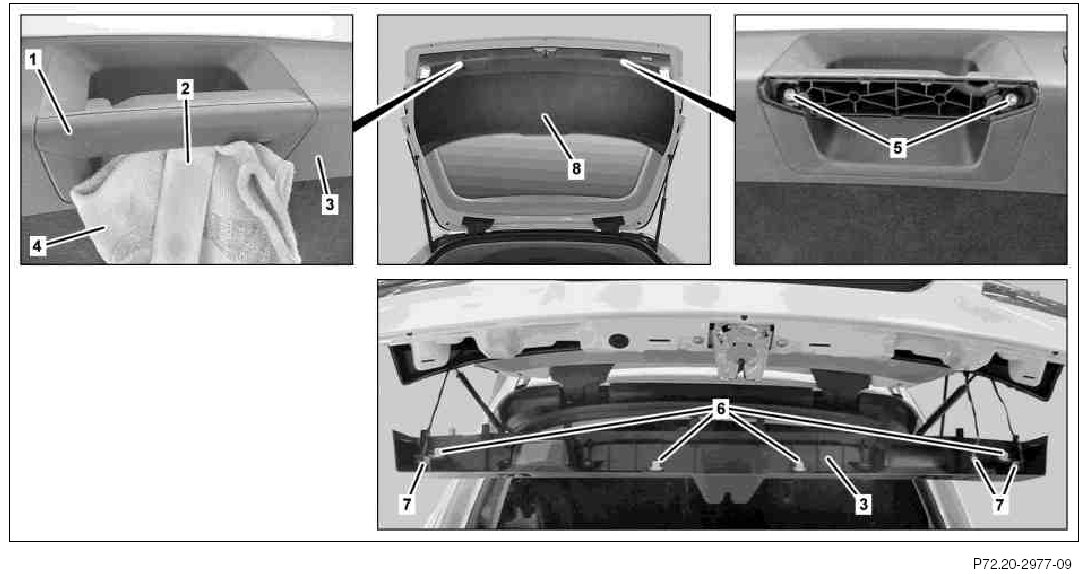

1 Cover
2 Mounting wedge
3 Lower door lining
4 Rag
5 Bolts
6 Clip
7 Electrical connectors
8 Center door lining

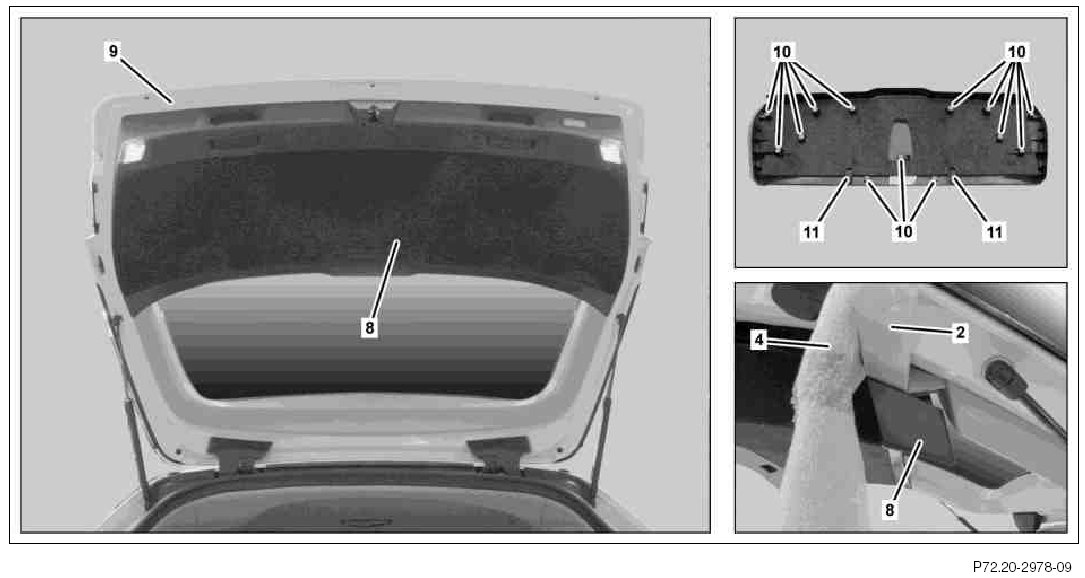

2 Mounting wedge
4 Rag
8 Center door lining
9 Rear-end door
10 Clip
11 Shackles







110 589 03 59 00, Mounting wedge
