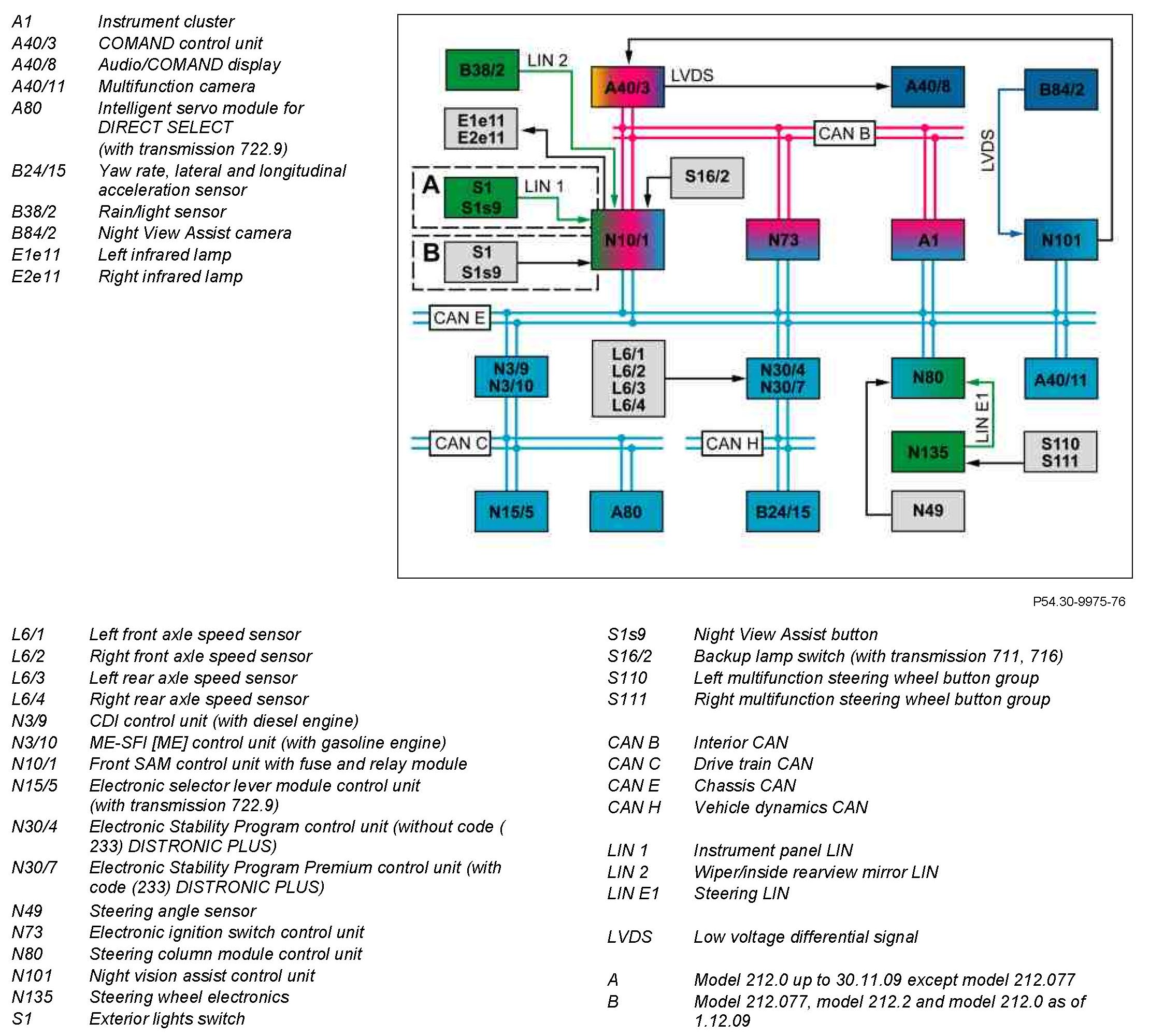

GF54.30-P-0005-03FL Night View Assist, Block Diagram



GF54.30-P-0005-03FL Night View Assist, Block Diagram
- with CODE (610) Night vision assist


Component Identification:
