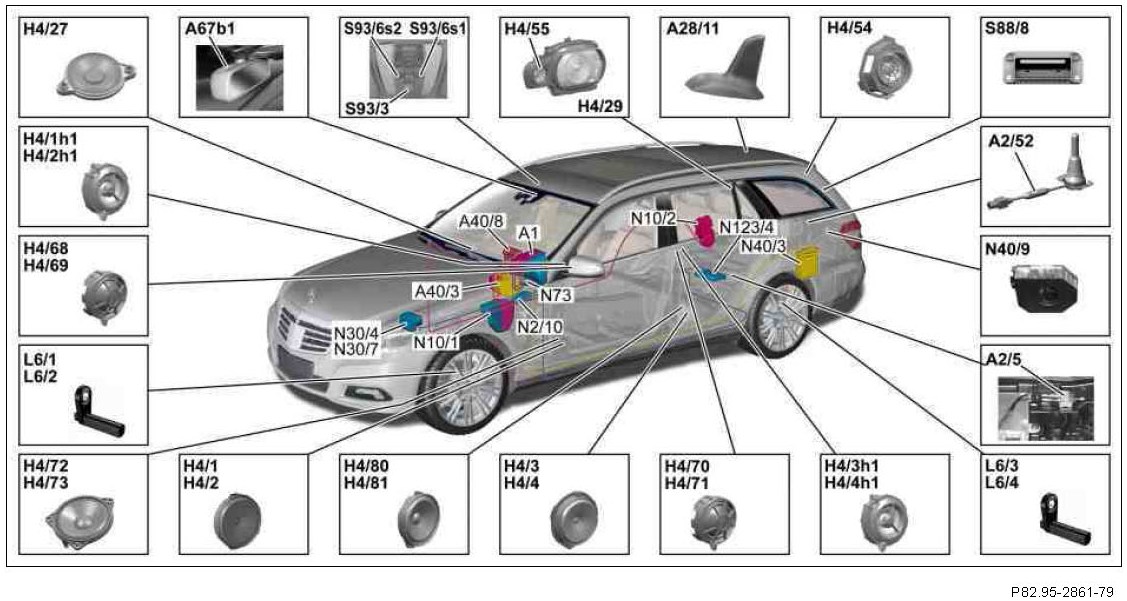

GF82.95-P-0004-01FLV Emergency Call System, Location of Components

GF82.95-P-0004-01FLV Emergency Call System, Location Of Components
MODEL 212.2
- with CODE (359) TELE AID emergency call system






A1 Instrument cluster
A2/5 Global positioning system antenna splitter (with code (512) COMAND APS with DVD changer)
A2/52 Emergency call system antenna
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A67b1 Hands-free system microphone
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/27 Center instrument panel speaker
H4/29 Bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/55 Right rear surround speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system tweeter and woofer with code (810) Sound system)
H4/73 Right front door sound system tweeter and woofer (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N2/10 Supplemental restraint system control unit
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N73 Electronic ignition switch control unit
N123/4 Emergency call system control unit
S88/8 Tailgate external operation switch
S93/3 Emergency call system button
S93/6s1 MB-Info button
S93/6s2 Breakdown assistance button
